Background music system voice alarm ceiling mount firproof speaker
1) Built-in 100v/70v transformer
2) In-ceiling type loudspeaker
3) 5” full range speaker unit
4) Power taps 3W & 6W @100V
5) With metal fire dome
6) Aluminum grille, metal baffle and fire dome
7) Paint in white color
8) Fireproof version design of ceramic terminal, thermal fuse, fire dome and fire-resistant cable
The T-105C is a fireproof ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5” full range speaker driver is designed of wide frequency response 110-14.5kHz, the multiple power taps 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The aluminum grille, metal baffle and fire dome are painted in attractive white color and a fire dome metal can is supplied. Its spring clamp makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Fireproof design features of this speaker include ceramic terminal, thermal fuse, fire dome and fire-resistant cable.
Model |
T-105C |
Power Taps @100V |
3W, 6W |
Power Taps @70V |
1.5W, 3W |
Impedance |
Com/3.3 KΩ/1.7KΩ |
SPL(1W/1M) |
90dB |
Max. SPL (Rated W/1M) |
98dB |
Frequency Response (-10dB) |
110-18KHz |
Finish |
Baffle, Grille: Steel, White Cover: Steel, Color Plating |
Speaker Driver |
5" x 1 |
Cutout Size |
170mm |
Dimensions |
200 x 110mm |
Weight |
0.9Kg |
Mounting |
Spring-clip |

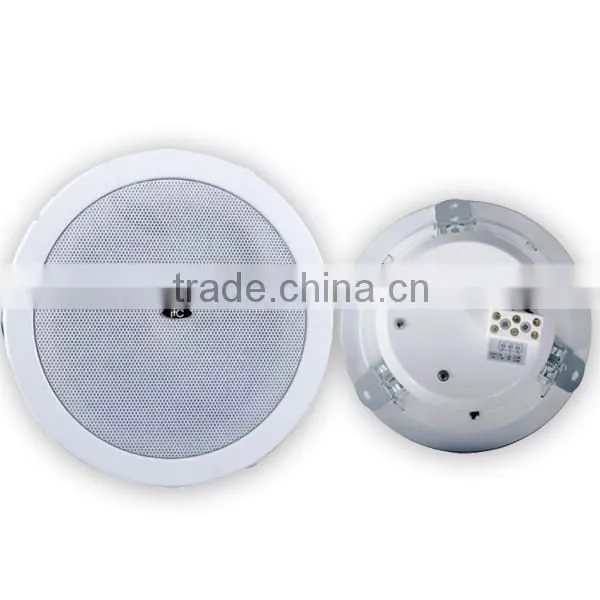

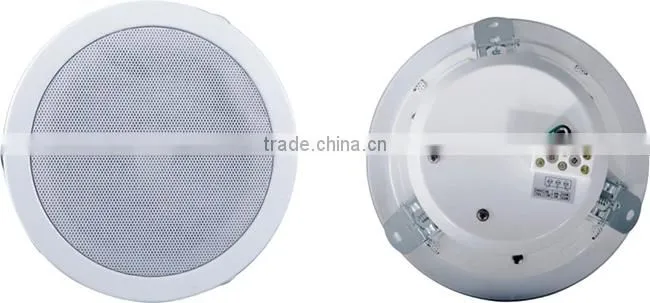

Appearance of ceiling mount firproof speaker T-105C :

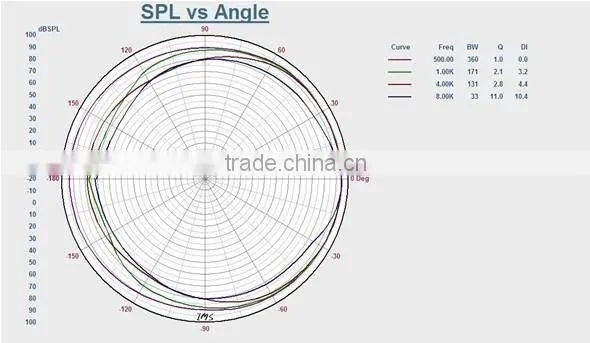

Direction Diagram of ceiling mount firproof speaker T-105C :

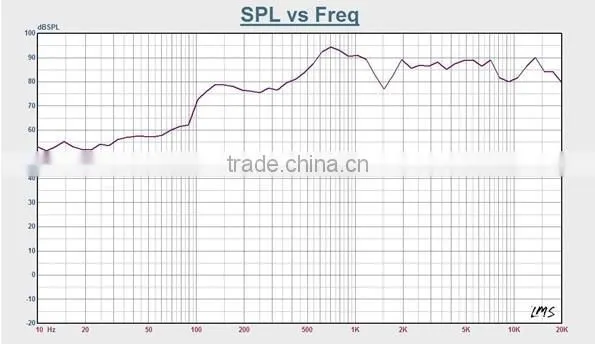

Frequency Response of ceiling mount firproof speaker T-105C :
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
FAQ
Q1: What is the Warranty for the pa fireproof speaker?
For the pa fireproof speaker, we have 3 years warranty.
Q2: How long to resolve the technical issues?
All of quality complaint shall be attached with serial number, failure test report and photos. And all of the quality compliant shall be feedback with a solution within 48 hours.
If any technical issues please contact with our technician
Technical documents could be downloaded from website
Q3: Is there cheap shipping cost to import to our country?
For small order, express will be best. And for bulk order sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
