Home > Consumer Electronics > Audio & Sets > Professional Audio > Background Music System 60W Mixer Usb Audio Amplifier

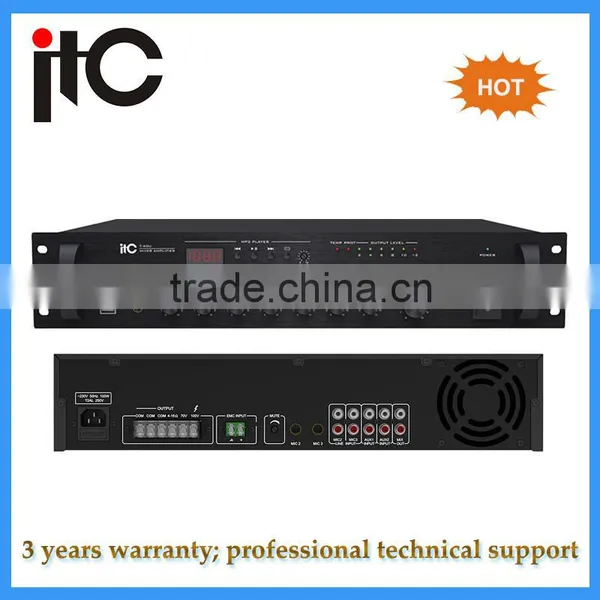

Background Music System 60W Mixer Usb Audio Amplifier

US$ 110 - 250 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-60BU

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-60BU

Background Music System 60W mixer usb audio amplifier

Detailed Images

Product Description

It’s PA mixing amplifier with USB port. And its rated power output is optional including 60W, 120W and 240W. Optional balanced Mic input; With AUX input and EMC input.

Features

With EMC(775mV) input;
Speaker output: constant voltage output of 70V or 100V; constant impedance output of 4 to 16 ohm.
Complete circuit protection for short, over-heat, overload, etc.
With 3 Mic intput (5mV).
With 2 balanced Mic intput (±2.5mV).
With treble/bass control (±10dB).
Mic input is with phantom power at 48V.
Each balanced Mic input is with gain control (±2.5mV to ±75mV, 30dB).
With 2 AUX input (350mV).
Priority: Mic 1>EMC>Mic 2, Mic 3, AUX 1, AUX 2, Mic 2/Line Input, Mic 3/Line Input.
USB port; Remote controller; Indication.
Power supplied at DC 24V is also allowed.

Specification

Model	T-60BU	T-120BU	T-240BU
Rated Power Output	60W	120W	240W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input MIC 2, 3: ±2.5mV/2KΩ, Balanced XLR input MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input EMC: 775mV/10KΩ, Unbalanced screw input
Output Sensitivity & Impedance	MIX OUT: 1V/470Ω, Unbalanced RCA output
Tone	Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
Frequency Response	50Hz~16KHz( +1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
THD	Less than 0.1% at 1KHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals with 0-30dB attenuation
Gain Control	MIC 2, 3 XLR, ±2.5mV~±75mV at 30dB
Crosstalk	≤50dB
MP3 Support Format	MP3
Maximum Support Capacity	8GB USB drive
Phantom Power	+48V, with LED indicator
Cooling	Fan automatically start up when temp reaches 55℃
Protection	High temp, overload & short-circuit
Power Supply	~110V/60Hz or ~230V/50Hz
Power Consumption	100W	200W	400W
Weight	7.2Kg	10Kg	17.5Kg
Dimensions	484x303x88mm		484x358x88mm
Finish	Panel: aluminum plate, black Case: steel plate, black

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
