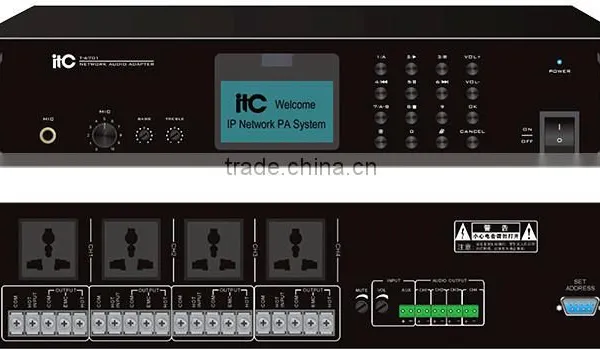

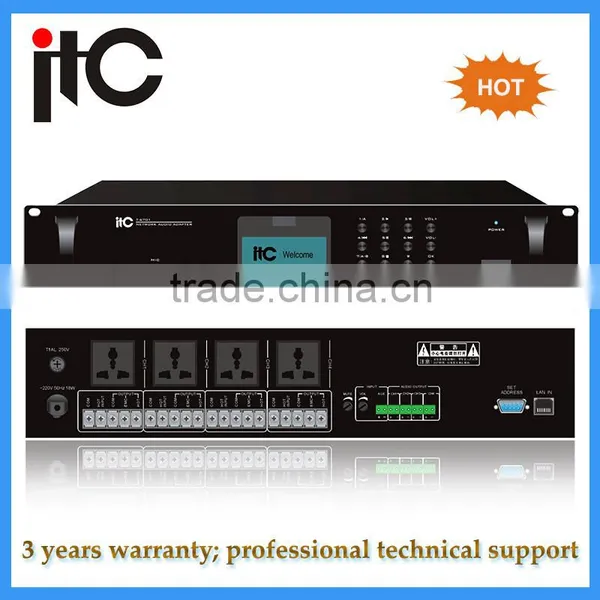

T-6701 amlfier and speaker IP Network Audio Adapter
* 19 rack mount IP/TCP network audio adapter in 2U height
* Built-in single channel TCP/IP decoder
* Decode digital audio data to analog amplifier
* Heart of IP background music, zone paging & voice alarm system
* Built-in 3.4 inch LCD screen display the IP address and status in English
* Supplied a remote control over music selection, IP address change and volume attenuation
* A serial IP address write in communication port
* Numeric keys on front panel for convenient operation
* 4 channel line outputs to amplifiers
* 4 channel 100V speaker inputs loop and 4 channel 3 wired volume control inputs
* 1 external line input (with volume control) and microphone input
* Automatically power off when no input for 5 minutes and automatically power on when
signal feed into
* Pre-set power management
...........................................................................................................................................................................
Description
The T-6701 is a popular used model for IP/TCP network audio system solution. It is used to transmit program from internet to amplifier and loudspeakers. So the normal connection way as below: Control port by RJ45 connector to LAN switch and analog outputs to amplifiers.
The IP network audio adapter is of 19 rack mount design, so it is usually installed in the control room together with high watts power amplifier for a bigger sized application. This LAN network technology also allow this amplifier could be installed in each floor or local terminal area, thus the cable wiring cost could be saved.
The biggest advantages of the network audio system are: Super distance audio transmission,
simultaneous maximum program task and non-dedicated network wiring.
T-6701 amlfier and speaker IP Network Audio Adapter
Model |
T-6701 |
Network Input |
Standard R J45 port |
Transmission Speed |
10/100Mbps |
Communication Protocol |
TCP/IP , UDP & IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Audio Mode |
16 digit stereo CD level |
Frequency Response |
20Hz~16KHz (+1dB, -3dB) |
T.H.D. |
≤0.3% |
S/N Ratio |
>70dB |
Aux Input |
One input, 350mV, Industrial standard screw terminals |
Aux Output |
Four outputs,1V,Industrial standard screw terminals |
Aux Output Impendance |
1KΩ |
Power Consumption |
≤18W |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Dimensions |
484x353x88mm |
Weight |
5.16Kg |
