Home > Consumer Electronics > Audio & Sets > Professional Audio > Digital Class D Amplifier for PA Stereo Sound System With Echo Effect

Digital Class D Amplifier for PA Stereo Sound System With Echo Effect

Digital Class D Amplifier for PA Stereo Sound System With Echo Effect photo-1

Digital Class D Amplifier for PA Stereo Sound System With Echo Effect photo-2

US$ 60 - 150 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-220AP

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-220AP

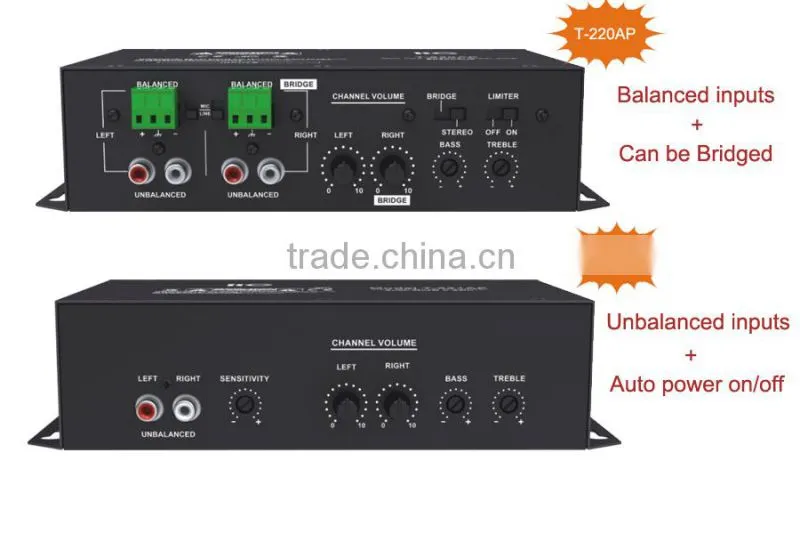

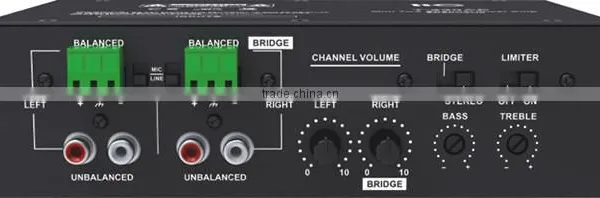

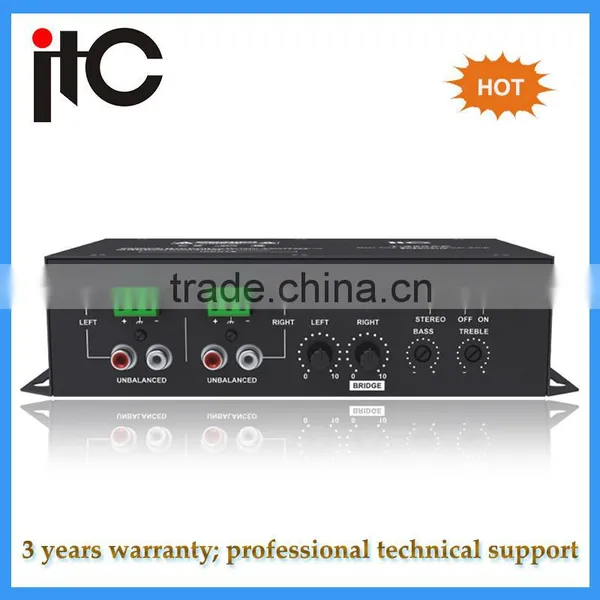

Digital Class D Amplifier for PA Stereo Sound System with Echo effect

Detailed Images

Features

It’s designed in desktop or wall mount.

Efficiency is up to 85%.

2 stereo output is 20W per channel and when they’re connected in parallel, the rated power output is 40W.

With 2 input switcher for Mic/Line in type of phoenix connector and 2 unbalanced AUX input in type of RCA.

2 channel output is with individual volume control and treble/bass control is equipped.

2 stereo output is at 4 ohm or 8 ohm and when they’re connected in parallel, it’s at 8 ohm.

Built in pressure limiter to cancel noise and it’s with switcher for On/off, which makes it suitable for laptop or cell phone.

Adapter for power at DC 24V is provided.

Specification

Model	T-220AP
Rated Power Output	2x20W (THD10% @ 4Ω1KHz)
Speaker Outputs	4Ω or 8Ω
Input	2 AUX inputs by RCA and 2 MIC /Line inputs by phoenix connectors
LINE	350mV/10KΩ
MIC Input	5mV/600Ω
Frequency Response	50Hz~18KHz (±2dB)
S/N Ratio(line)	Better than 85dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Efficiency	85%
Controls	Power switch, volume control
Indicators	Power
Protection	AC fuse, clipping, high temp & short-circuit
Power Supply	DC 24V
Dimensions	230x115x56.5mm
Finish	Panel: steel, black Case: steel, black

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
