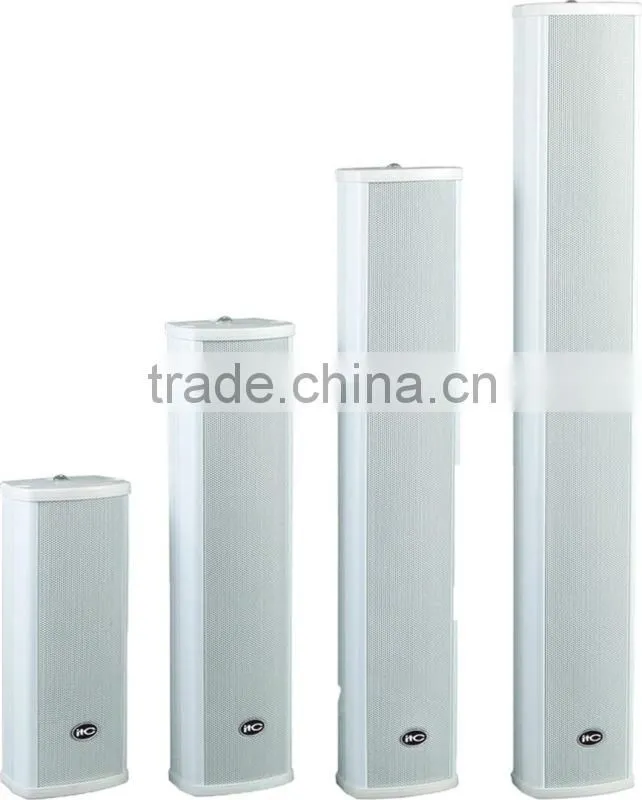

T-702A Outdoor PA Weatherproof Column speaker
l Built-in 100v/70v transformer
l Weatherproof column type loudspeaker
l IP66 waterproof level
l 4×2.5” full range driver
l Power taps at 10w-20w @100V
l Aluminum enclosure & grille in white
l A pair of metal mounting brackets are supplied
The T-702A is a weatherproof outdoor column speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4 units 2.5” full range speaker drivers are designed of wide frequency response 150-13kHz, the multiple power taps of 10W & 20W could meet different applications varies from room size and ambient noise surroundings.
The aluminum enclosure and grille are of white color. It is also designed of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in outdoor area through the supplied pair of metal mounting brackets.
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
Model |
T-702A |
Power Taps @100V |
10W, 20W |
Power Taps @70V |
5W, 10W |
Impedance |
Black:Com Green:500Ω White:1KΩ |
ISPL(1W/1M) |
89dB±3dB |
Max. SPL (Rated W/1M) |
102dB |
Frequency Response (-10dB) |
150-13KHz |
Finish |
Body: Aluminum, White Grille: Steel, White Cover: ABS, White |
Speaker Driver |
2.5" x4 |
IP Rate |
IPx 6 |

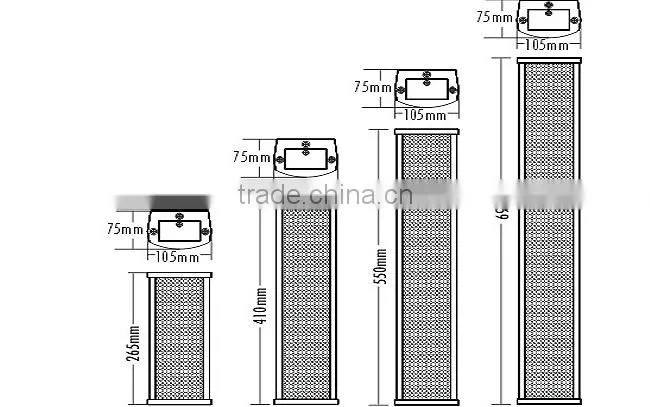

Dimensions |
105 x 75 x 410mm |
Weight |
2.2Kg |
Mounting |
With mounting bracket fixed by screw |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
