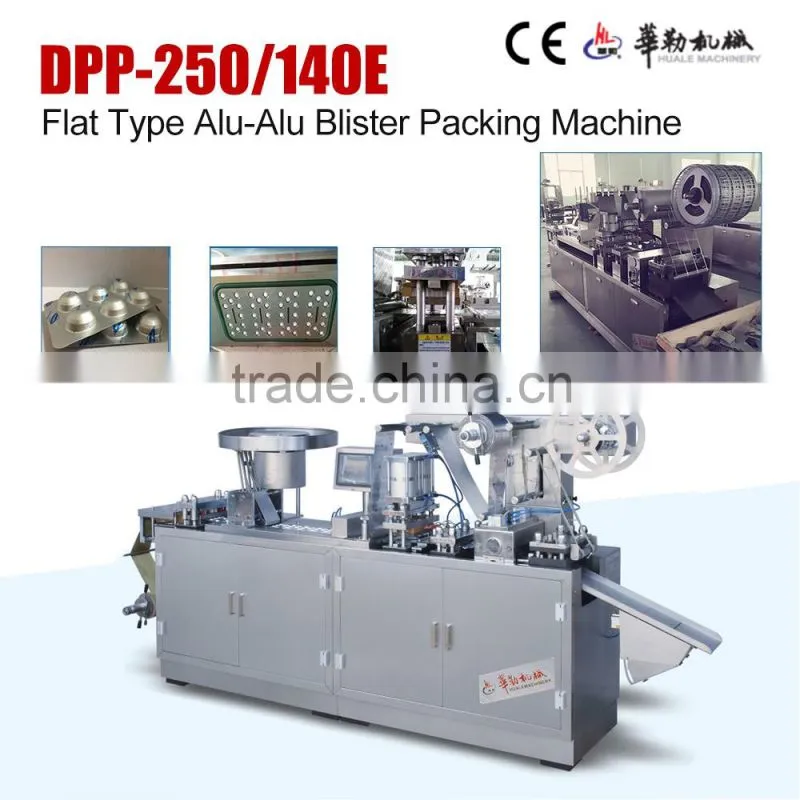

ALU-ALU OR ALU-PVC BLISTER PACKAGING MACHINES

Name: ALU-ALU OR ALU-PVC BLISTER PACKAGING MACHINES
Brand: HUALE MACHINERY
SKU: 127996765

US$ 1 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other

Automatic Grade:

Automatic

Nanjing Huale Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other

Automatic Grade Automatic

Driven Type Electric

Voltage 380V/220V

Power 4.5kw

Place of Origin Jiangsu, China

Brand Name HUALE MACHINERY

Model Number DPP-250E

Dimension(L*W*H) 2900*750*1600mm

Weight 1200kg

Certification CE, ISO9001

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Product Name: Alu Alu Blister Packaging Machine

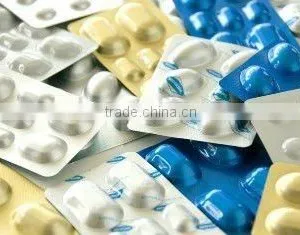

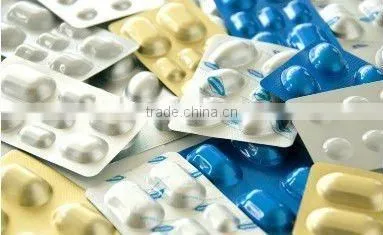

Beautiful packaging (High barrier against moisture, oxygen, other gases, light and UV rays)
Machine is small ( Machine can be disassembled into 2 parts )
Machine operation stability (Step motor control pulling)
Easy operation (PLC).
Used for capsule, tablets, pill.

MAIN TECHNICAL PARAMETERS

Item Model		DPP-140E
Double Functions		ALU ALU	ALU PVC
Cutting Frequency(ideal sizes:80*57mm)		15-30 times/min	20-45 times/min
Max. Forming Area and Depth		140×110×12	140×110×15
Adjustable Scope of Travel(mm)		30-120mm
Packaging material(I.D.Φ75)	PVC(mm)		(0.15~0.4)×150×(Φ350)
	PTP(mm)	(0.02~0.15)×150×(Φ250)	(0.02~0.15)×150×(Φ250)
	Alu Alu Foil(mm)	(0.14-0.18)×150×(Φ350)
	Paper(mm)		(50-100)g/m2×150×(Φ300)
Power		380V 50Hz 4.5kw	380V 50Hz 8kw
Air Compression(self-prepared)		≥0.45m³/min pressure: 0.6~0.8Mpa
Cooling		Recycle water or circulating water consumption: 60-100L/h
Overall Dimension(LWH)		2400×650×1450(including foundation)
Dimension of Each Part		1350×650×1250(front)
		1050×650×1450(back)
Weight		About 800KG

Item Model		DPP-250E
Double Functions		ALU ALU	ALU PVC
Cutting Frequency(ideal sizes:80*57mm)		15-30 times/min	20-45 times/min
Max. Forming Area and Depth		250×120×12	250×120×15
Adjustable Scope of Travel(mm)		30-120mm
Packaging material(I.D.Φ75)	PVC(mm)		(0.15~0.4)×260×(Φ400)
	PTP(mm)	(0.02~0.15)×260×(Φ250)	(0.02~0.15)×260×(Φ250)
	Alu Alu Foil(mm)	(0.14-0.18)×260×(Φ400)
	Paper(mm)		(50~100)g/m2×260×(Φ300)
Power		380V 50Hz 4.5kw	380V 50Hz 8kw
Air Compression(self-prepared)		≥0.45m³/min pressure: 0.6~0.8Mpa
Cooling		Recycle water or circulating water consumption: 60-100L/h
Overall Dimension(LWH)		2900×750×1600(including foundation)
Dimension of Each Part		1500×750×1600mm(front)
		1400×750×1450mm(back)
Weight		About 1200KG

MACHINE ADVANTAGE

Main motor adopts inverter speed controlling system.

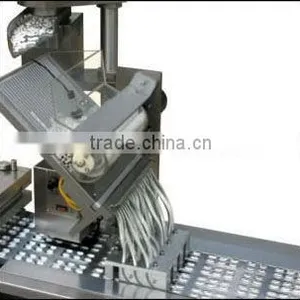

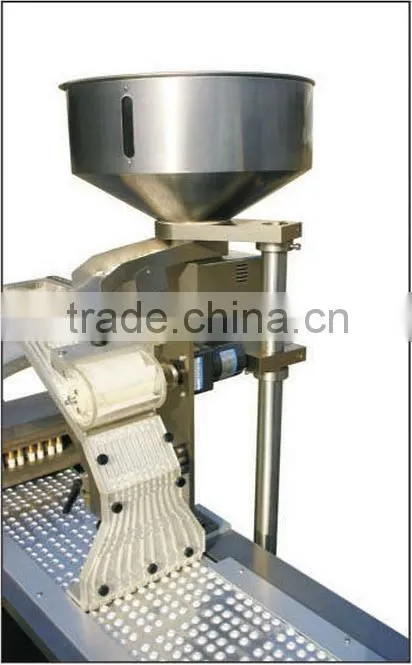

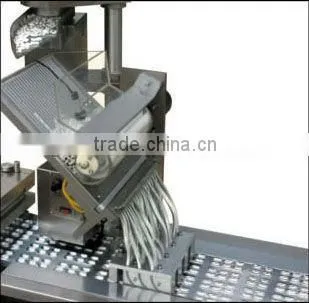

It adopts newly designed double hopper feeding system with high precision optical control for automatic and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.(the feeder can be designed according to client’s specific packaging object.)
Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing and adjusting.
The machine will stop automatically once the materials are finished. Also it has installed emergency stop to keep safety when the workers run the machine.
Organic glass cover is optional.

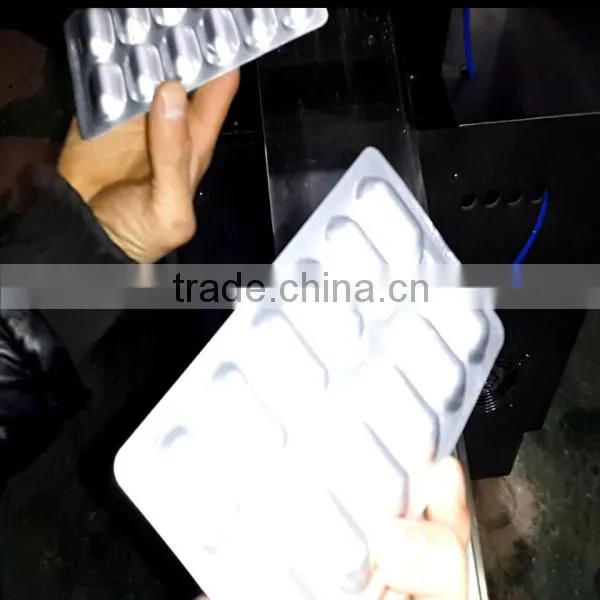

Alu alu blister packing machine will combine both functions, Alu-Alu and Alu-PVC by changing moulds.
