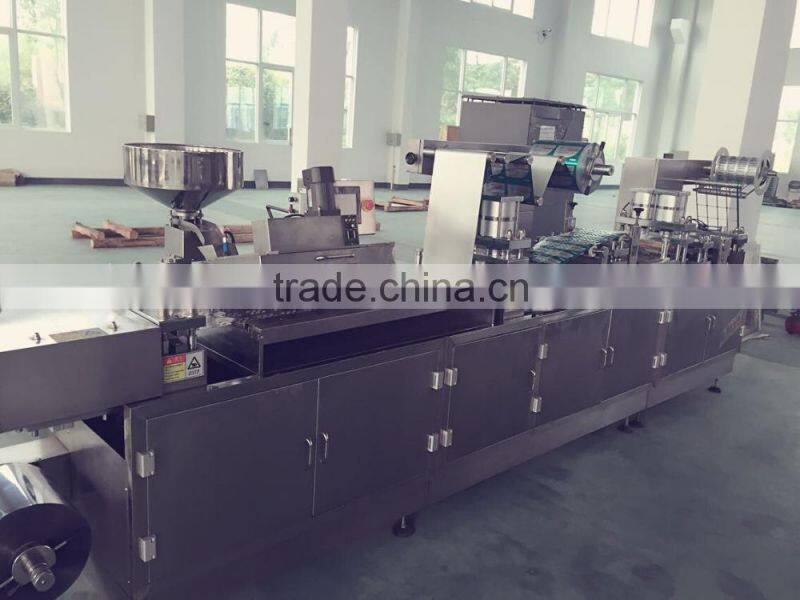

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE photo-1

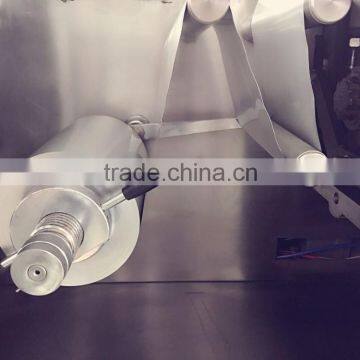

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE photo-2

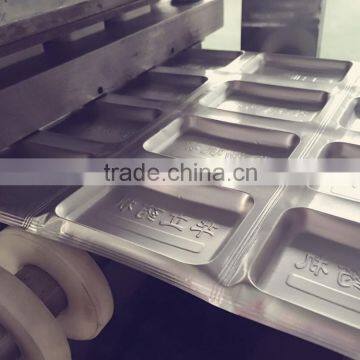

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE photo-3

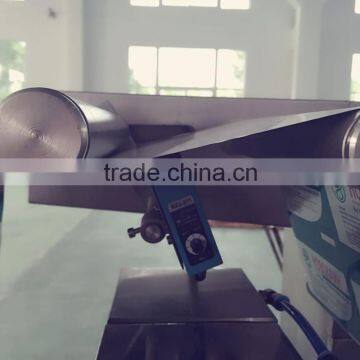

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE photo-4

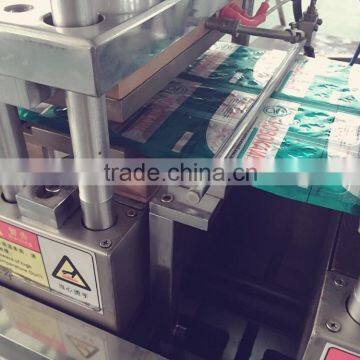

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE photo-5

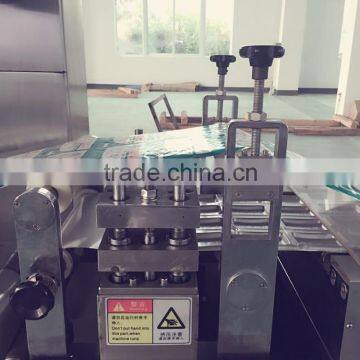

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/220V
Power 11.5kw
Place of Origin Jiangsu, China
Brand Name HUALE MACHINERY
Model Number DPP-250F
Dimension(L*W*H) 4450*800*1600mm
Weight 1700KG
Certification CE, ISO9001
Warranty ONE YEAR
After-sales Service Provided Engineers available to service machinery overseas



TROPICAL BLISTER PACKING MACHINE





Performance and characteristic

  • Pulling length can be input by touch screen while air frothing forming and cold forming are controlled by encoder.
  • It comes with universal feeder for packaging object feeding; the feeder also can be designed as client’s requirement to irregular shape object.
  • The speed is controlled by inverter which operators can input by touch screen.
  • The machine comes with Automatic Detection system for object absence in blisters by mechanical detecting system or optical sensor or camera system is required by clients.
  • The pulling is controlled by servo motor for ensuring accurate pulling length and saving materials.
  • The heating molds separate automatically when the machine stops, which contributes to protect the packaging material from the heated moulds.
  • The machine suitable for blister packing with Alu-Plastic,Alu-Aluand Alu-Plastic-Alu.



Main technical parameters

Item Model

DPP-250F

Double Function

ALU-PLASTIC-ALU

ALU-PLASTIC

Cutting frequency (ideal size 57×80)

15-30times/min

20-45times/min

Max. Forming Area and Depth(mm)

250×120×15

250×120×15

Pulling length(mm)

30-120mm

Packaging material(I.D.Φ75)

PVC(mm)

(0.15~0.4)×260×(Φ400)

(0.15~0.4)×260×(Φ400)

PTP(mm)

(0.02~0.15)×260×(Φ250)

(0.02~0.15)×260×(Φ250)

Tropical Foil(mm)

(0.10-0.12)×260×(Φ400)



Paper(mm)



(50-100)g/m2×260×(Φ300)

Power

380V  50Hz 11.5kw

380V  50Hz 8.5kw

Air compression(self-prepared)

≥0.5m³/min    pressure:0.6~0.8Mpa

Cooling

Recycle water or circulating water consumption: 60-100L/h

Overall Dimension(L*W*H)

4450×800×1600(Including foundation)

Dimension of Each Part

1400×800×1600mm(front)

1650×800×1450mm(middle)

1400×800×1450mm(back)

Weight

About 1700kg





Work

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE

AL-PVC-AL AUTOMATIC TROPICAL BLISTER PACKAGING MACHINE
