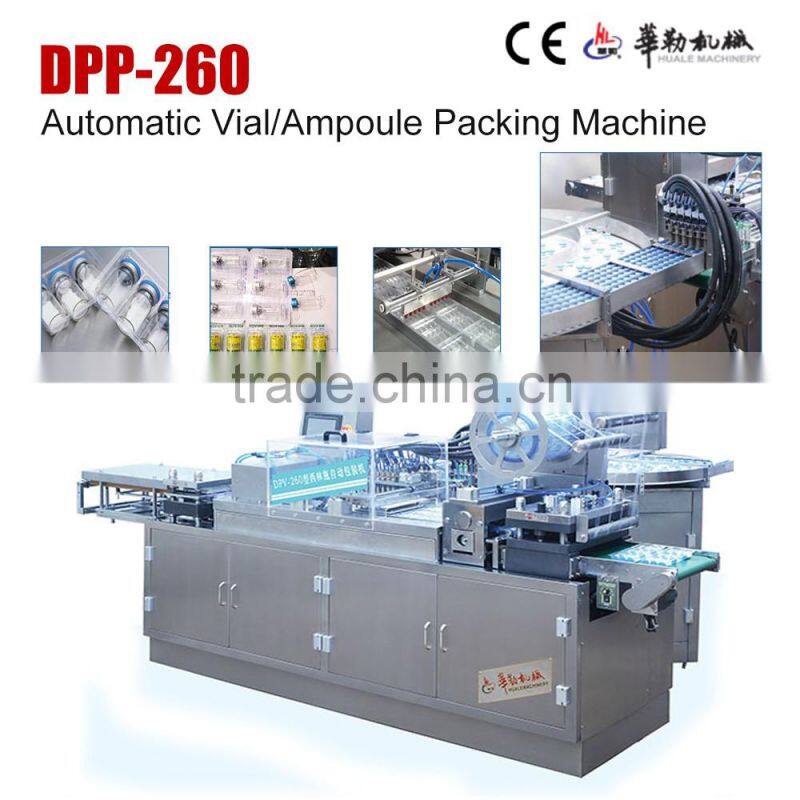

AUTOMATIC VIAL AMPOULE PACKING MACHINES

Name: AUTOMATIC VIAL AMPOULE PACKING MACHINES
Brand: HUALE MACHINERY
SKU: 127996851
Availability: InStock

Nanjing Huale Machinery Co., Ltd.

US$ 1 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Medical, Other, Medical, Vial / Ampoule

Automatic Grade:

Automatic

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Medical, Other, Medical, Vial / Ampoule

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 4.5KW

Place of Origin Jiangsu, China

Brand Name HUALE MACHINERY

Model Number DPP-260

Dimension(L*W*H) 2750*750-1450MM

Weight 700KG

Certification CE, ISO9001

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Product Name: AUTOMATIC VIAL AMPOULE PACKING MACHINES

MAIN TECHNICAL PARAMETERS

Punching Frequency		10-30 times/min
Max. Forming Area and Depth		250×180×30
Puling length		40-200
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.8)×260×(Φ400)
	PTP(mm)	(0.15-0.8)×260×(Φ400)
	PET(mm)	(0.15-0.8)×260×(Φ400)
Power		380V 50Hz 4.5k
Air compression(self-prepared)		0.6-0.8Mpa≥0.5m³/min
Recycle water or circulating water consumption		40-80L/h
Overall Dimension(LWH)		2750×750×1450(including foundation)
Dimension of Each Part		1450×750×1300
		1300×750×1450
Weight		About 700kg

MACHINE ADVANTAGE

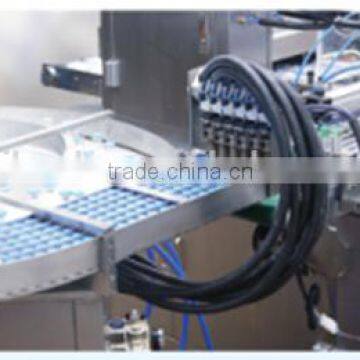

The length of the tray can be input in touch screen. Molds are located in positioning slot, and it’s convenient to change the molds. The blisters are formed by air blowing which is controlled by encoder.
HIMI: PLC Control, Frequency inverter for speed controlling.
Step motor pulling system for saving packaging material and easier adjusting.
Auto feeder: It can be designed and required by clients’ different requirments.
