ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES

ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES thumbnail-1
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES thumbnail-2
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES thumbnail-3
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES thumbnail-4
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES thumbnail-5
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES thumbnail-6
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES photo-1
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES photo-2
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES photo-3
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES photo-4
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES photo-5
ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Nanjing Huale Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/220V
Power 9.5KW
Place of Origin Jiangsu, China
Brand Name HUALE MACHINERY
Model Number DPP-350A
Dimension(L*W*H) 1700*450*1100
Weight 300KG
Certification CE, ISO
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

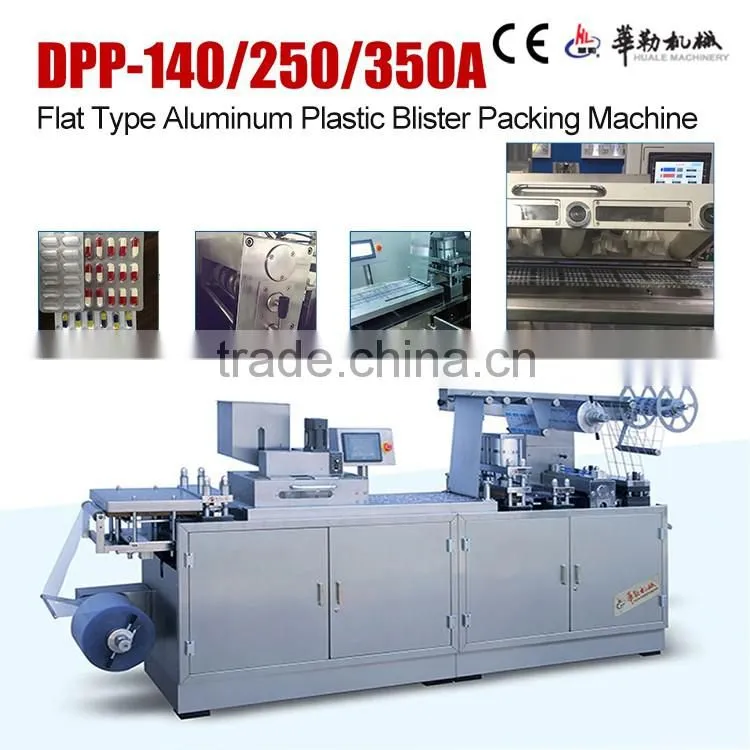

Product Name:   Fully Automatic Blister Packing Machine

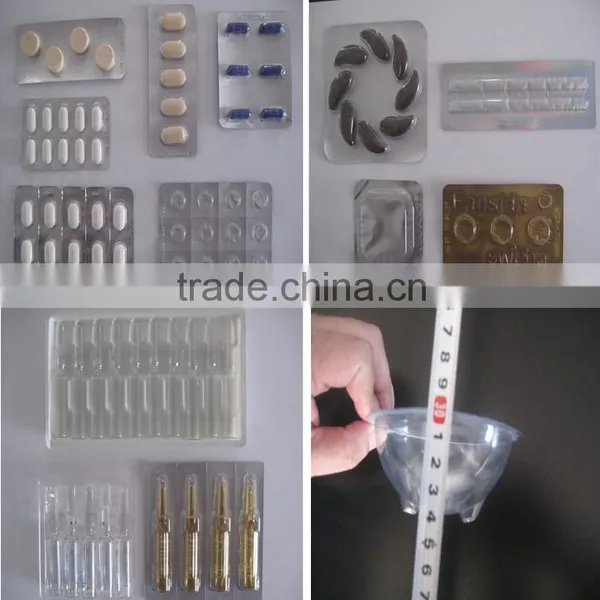

ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES Automatic Alu PVC Blister Packaging Machine is used in the pharmaceutical industry of capsule, tablet, and pilled foodstuff, food industry, liquid chocolate candies, chewing gum, cookies, jam, facial mask, eye of the cosmetics industry, medical device industry, needles, syringes, infusion tube and electronic component products such as aluminum-plastic, paper-plastic blister packaging.



 MAIN TECHNICAL PARAMETERS

Model

350A

250A

140A

Blanking frequency(times/min)

15-50

15-50

15-50

Sheet's quantity of one blanking(sheets)

5-6

3-4

1-2

Adjustable scope of feed travel(mm)

5400-18000

3600-12000

1800-6000

Appropriate for Capsule

10-150

10-140

10-130

Max Forming area and depth(mm)

350×130×15

250×120×15

140×110×15

Capacity of air compressor((m3/min) )

≥0.45

≥0.38

≥0.36

Power supply

380V 50HZ 12KW

380V 50Hz8.5KW

380V 50Hz 635KW

Wrapper specification(mm)

PVC

350×(0.2-0.5)

250×(0.2-0.5)

140×(0.2-0.5)

Aluminum foil

350×(0.02-0.035)

250×(0.02-0.035)

140×(0.02-0.035)

Overall dimensions(mm)

3800×718×1750

3200×650×1450

2850×530×1450

Part size(mm)

2000×718×1750

1750×650×1450

1450×550×1300

1800×718×1750

1450×650×1450

1400×550×1450

Weight(Kg)

2000

1700

1000



MACHINE ADVANTAGE

1.      All of the air supply and synchronization of the machine is controlled by the encoder. All synchronous data have been programmed in advance so that there is no need to adjust air supply and pulling time manually. The machine in other factory use Cam control, which means the process is mechanical. The biggest disadvantage of it is that the friction is inevitably which will lead to wear and tear. As time passes, the synchronization is not accurate. But our machines use encoder control, so that there is no need to worry about the synchronization. If the encoder is broken, you can also buy it in the local, it’s convenient.

2.      Our machines have PRC (print register control) system, is the cursor version of function, because the machine is a stepper motor, so is true of PRC system forever won't generation shift. Other manufacturers may be gas clip can only be manually adjusted, a long time after the shift will occur.

3.     Our machine use Stepper motor to control the pulling length. When change the model, there is no need to adjust the machine so that it’s convenient and easy operating. What I want to mention is that the machines in other factory use gas clip to control the pulling length. It has two shortcomings. First, when you change the models, you need to adjust the pulling length manually which means adjusting screw in the pulling position. If the Operating workers is unskilled, it will waste the material and time.

 ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES

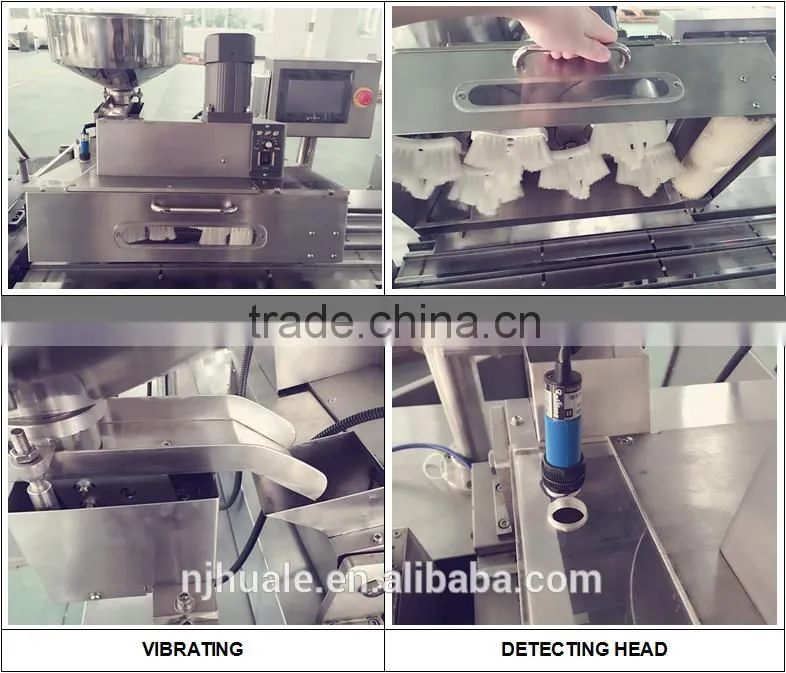

NEW FEEDER

  • Under the control of the quantity of material, can keep the disc brushing not too full, filling the products more accurately
  • Moderate material can keep PVC not deformated, make machine operate more stable

ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES







ALU-PLASTIC FULLY AUTOMATIC BLISTER PACKAGING MACHINES
