Cnc Gantry Type Plasma /flame Cutting Machine for Metal Steel Plate

 Feature                                 cnc plasma cutting machine
(1) Install easily

(2) Two cutting ways: flame or plasma available.

(3) Tidy cutting surfaces without burr, cutting speed can achieve to 6000mm/min.

(4) Double-side driving servo system, guarantees an excellent running performance.

(5) Optional dust proof work table or smoke removing device for a clean working environment.

(6) Optional plasma power for different materials cutting.

(7) German Neugart planetary reducer for transimission which is characterized of bigger toque, low gap and free maintenance.

 Main Parameters                 cnc plasma cutting machine

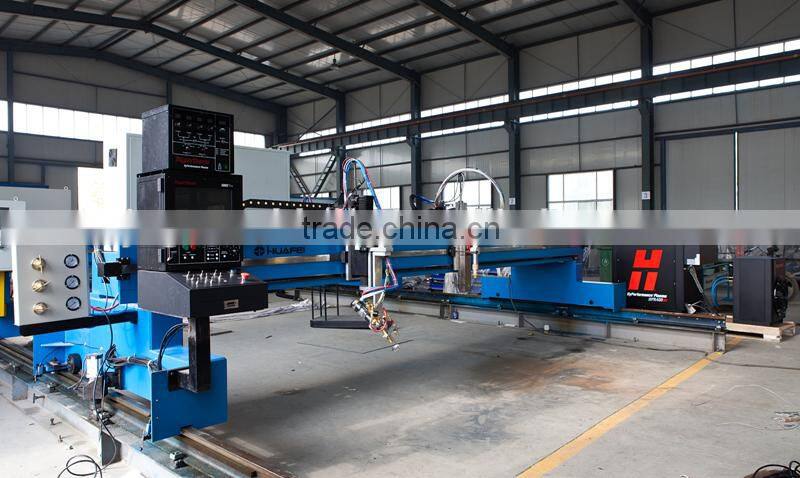

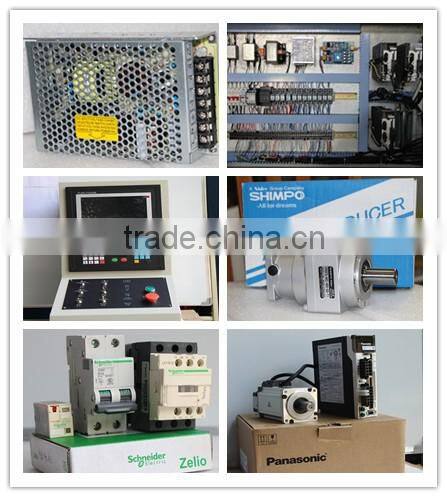

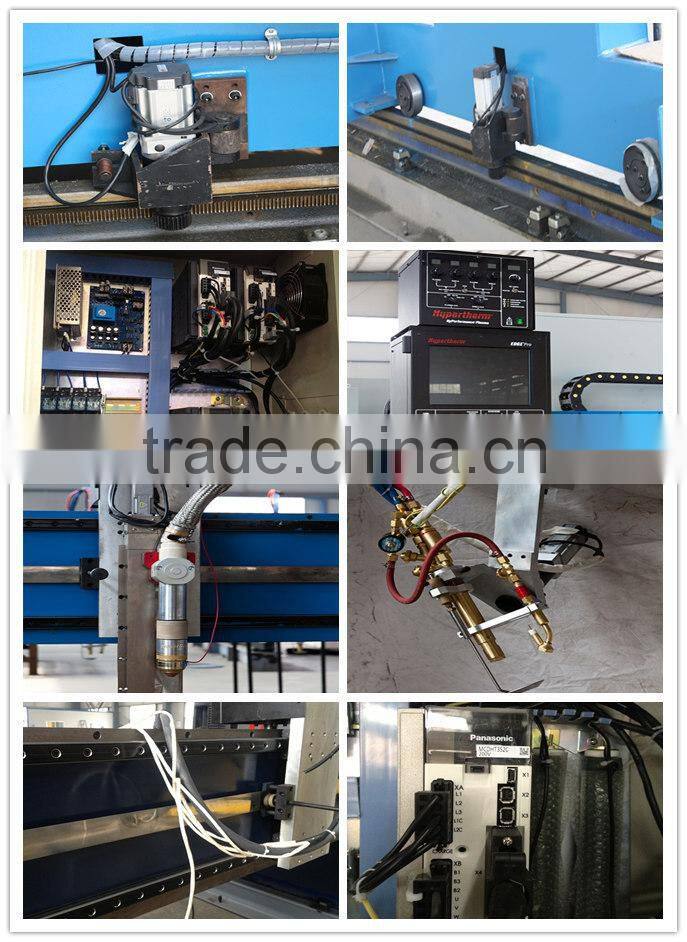

 Pictures for reference        cnc plasma cutting machine

 Mechanical Accuracy        cnc plasma cutting machine

1. Installation accuracy of guide rail:

1) Straightness accuracy of main rail           ±0.2mm/10m

2) levelness between two rails           ±0.5mm/10m

3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length

4) Parallelism between two rails        <±2mm/ rail space

2. Machine precision:

a. Longitudinal effective stroke    >nominal size 20mm

b. Transverse effective stroke       > nominal size 10mm

c. Linear positioning accuracy   ±0.1mm/10m

(1000×1000mm Comprehensive graphics detection)   GB deviation≤±0.3mm

d. Linear repeat accuracy                 ±0.4mm/10m

e. Torch stroke                              ≤170mm

f. Cutting speed                 ±5% of setting speed

g. Automatic lifting precision                   ±0.5mm

3. Comprehensive machine precision:

a. Length deviation(four sides)              0.3mm

b. Diagonal deviation                   0.3mm

c. Back to the origin of the deviation                 0.2mm

d. Diagonal straightness accuracy                  0.3mm

e. Intersection deviation                       0.3mm

f. Linear deviations                           0.2mm

g. Entire machine positioner precision                0.1mm

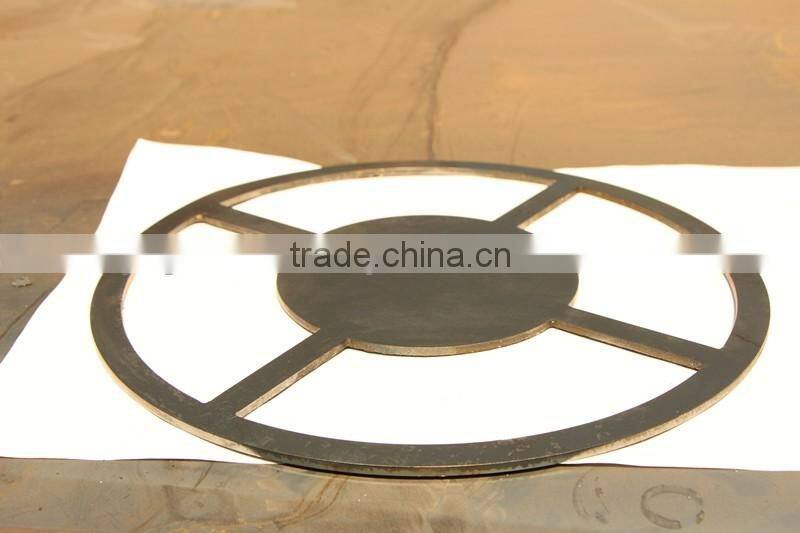

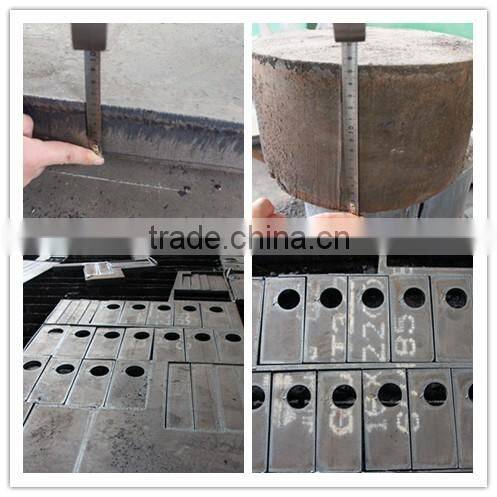

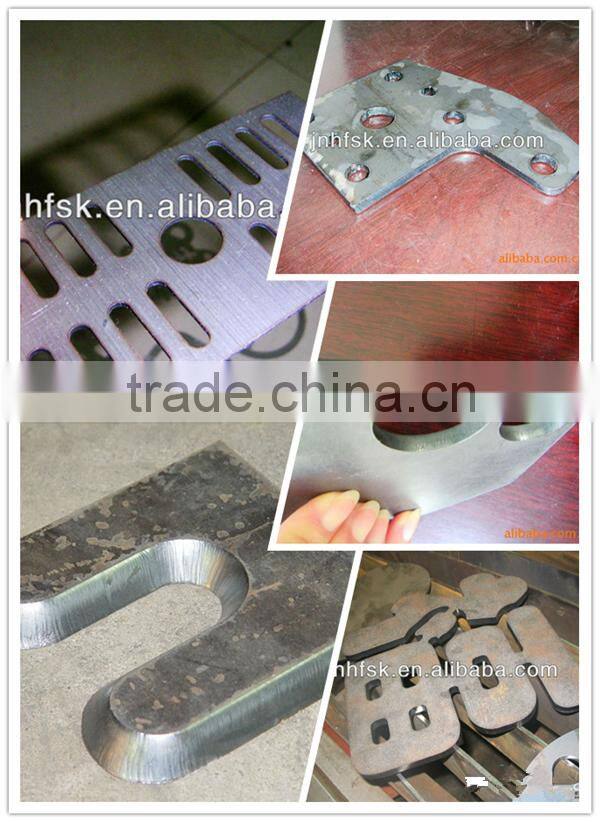

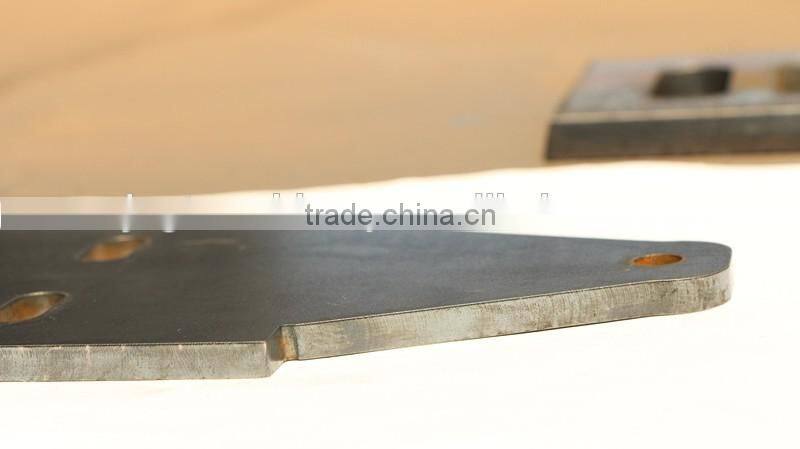

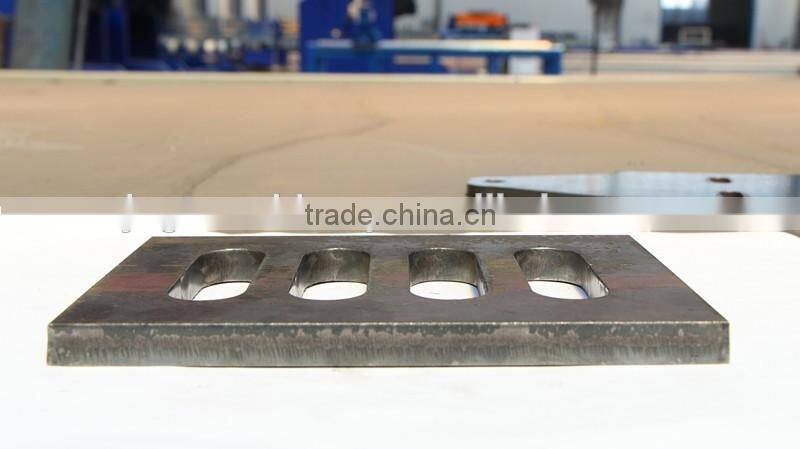

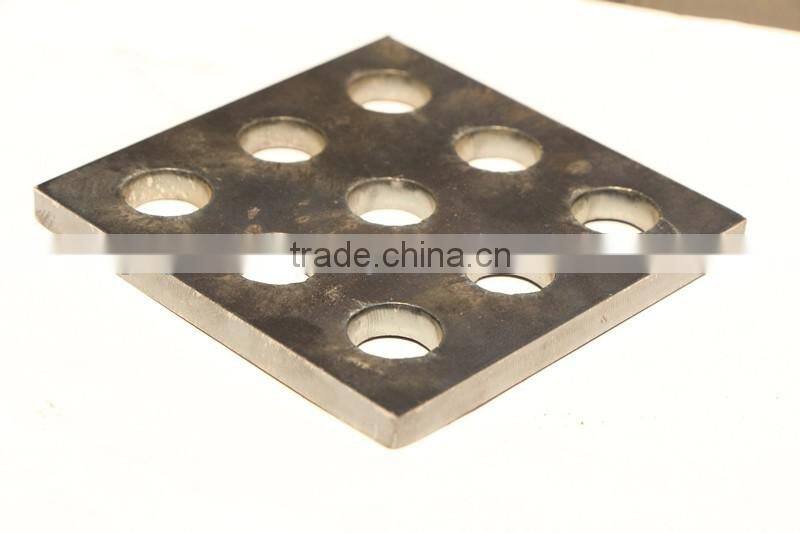

 Cutting Samples                 cnc plasma cutting machine

 Video link                            cnc plasma cutting machine

/video.php?v=1526718990901902&set=vb.100006914478186&type=3&theater

/AKZ250/videos/vb.100006914478186/1596285860611881/?type=3&theater&viewas=100000686899395

/AKZ250/videos/vb.100006914478186/1596286020611865/?type=3&theater&viewas=100000686899395

/AKZ250/videos/vb.100006914478186/1713479262225873/?type=3&theater

Plywood case or plastic film cover

 ISO9001:2008 & CE certification

 After-sale Service

♥ Warranty : one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
