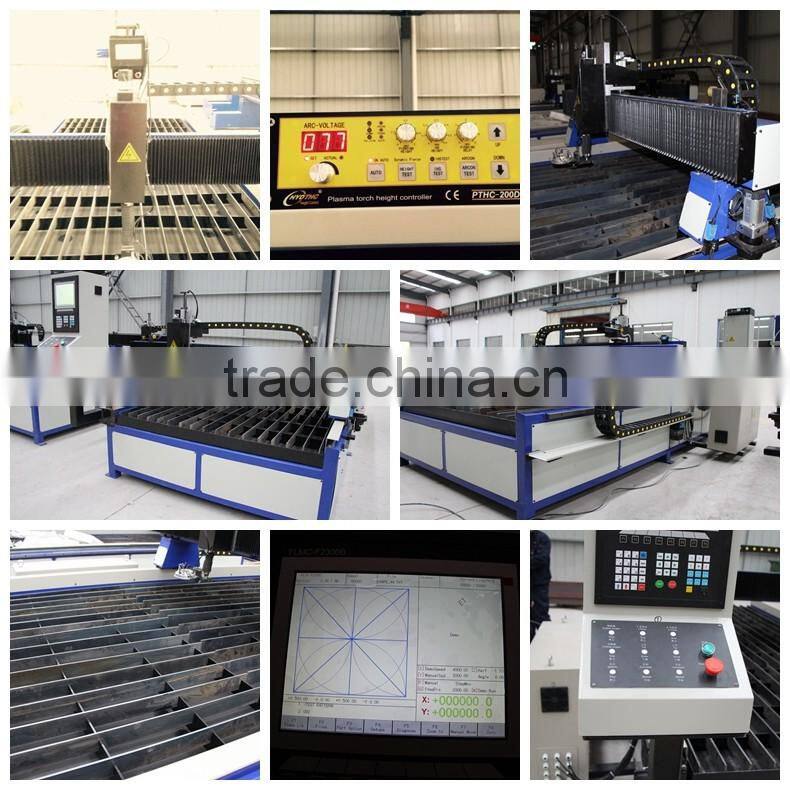

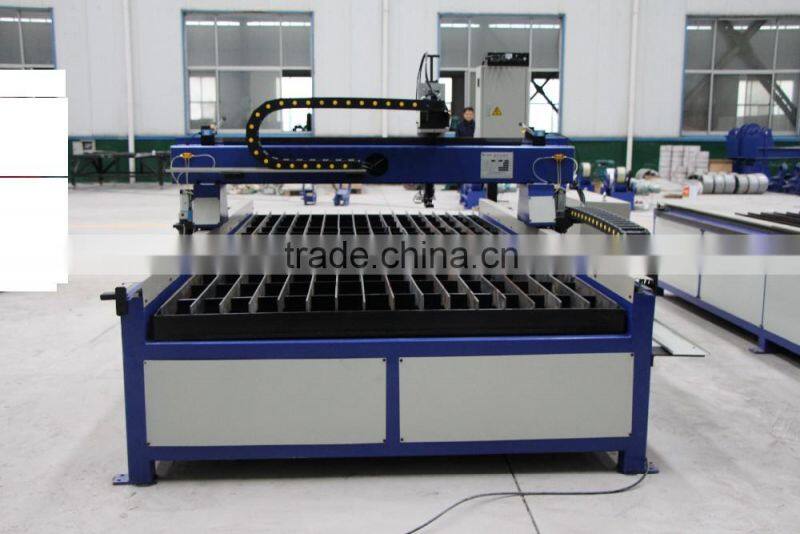

Huafei Table Type Cnc Plasma Cutting Machine With Plasma Cutting Torches

Table type plasma or flame CNC Cutting Machine

1. Product characteristics

Intergrating CNC technology,with mechanical running and thermal cutting technology, the QGIII CNC cutting machine is an effective, percise and reliable cutting equipment, outstanding interface makes operation easier to use.

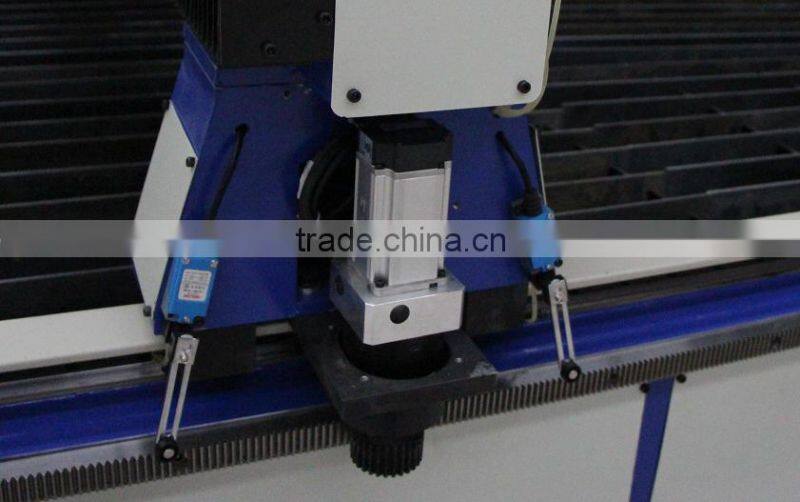

China top brand and imported linear guide rails for tansmission, precise and stable. The machine equips German NEUGART reducer for transmission which has big torque, low gap and free maintenance.

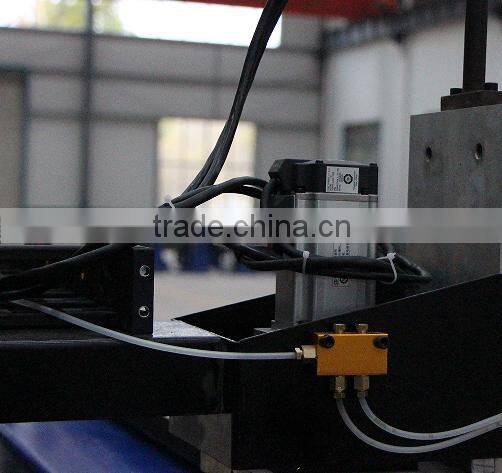

Japan Panasonic servo system applys in this equipment.

Optional dust proof machine or factory set water tank for better work environment.

Optional plasma power source for different materials cutting.

2. Product Information and suggest price

Attention: The prices above DONOT contains value of plasma power source. For example: PowerMax200 USD15,500$, add into plasma 1840 7,299 is our EXW price.

3. Mechanical percision

1. Installation accuracy of rail

1).straightness accuracy of main rail ±0.2mm/10m

2).levelness between two rails ±0.5mm/10m

3).Longitudinal levelness of main rail    ±0.2mm/m;±2mm/ overall length 4).Parallelism between two rails   <±2mm/ rail space

2. Machine precision

A. Longitudinal effective stroke   >nominal size 20mm

B.Transverse effective stroke      > nominal size 10mm

C. Linear positioning accuracy ±0.1mm/10m

D. Linear repeat precision        ±0.4mm/10m

                          (1000×1000mm Comprehensive graphics detection)

                                               GB deviation ≤±0.3mm

E.Torch stroke                    ≤170mm

F.Cutting speed                ±5% of setting speed

G. Automatic lifting precision        ±0.5mm

3. Comprehensive machine precision:

A. Length error(four sides)     0.3mm

B.Diagonal deviation      0.3mm

C. Back to the origin of the deviation     0.2mm

D.Diagonal straightness accuracy      0.3mm

E.Intersection deviation        0.3mm

F.Linear deviations          0.2mm

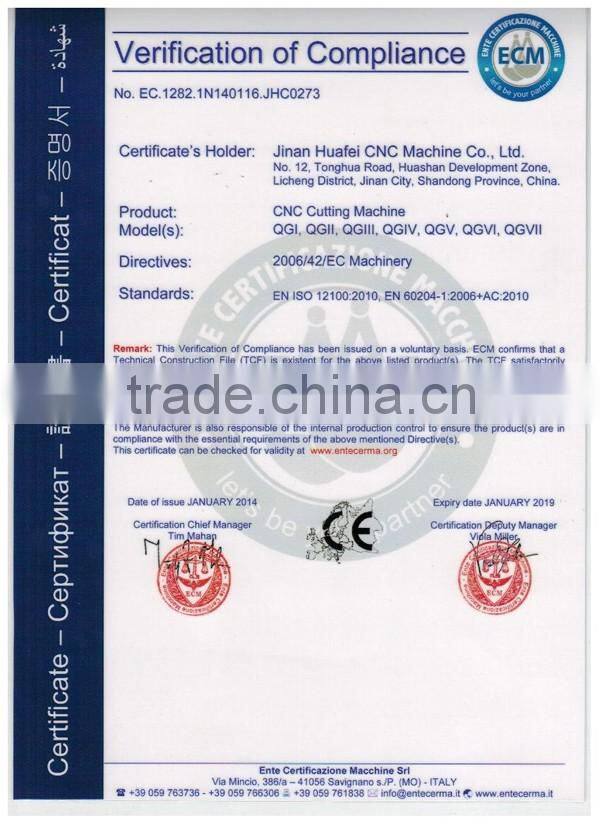

4. Certification

Best regards and thank you for your time. If you find anything need my help just contact me. Have nice day!
