Single Phase Din Rail Energy Meter

Name: Single Phase Din Rail Energy Meter
Brand: SOMMY
SKU: 127939717
Availability: InStock

US$ 30 - 45 MOQ: 1 Set

Key Specifications

Place of Origin:

Hong Kong, China

Brand Name:

SOMMY

Model Number:

GQ7-80A-Q-RS4A/GQ7-6A-Q-RS4A

Zhongshan Sommy Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan port/Shenzhen port/Guangzhou port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hong Kong, China

Brand Name SOMMY

Model Number GQ7-80A-Q-RS4A/GQ7-6A-Q-RS4A

Display Type Digital Only

Phase Single Phase

Measuring Energy Range 0.001-999999.999Kwh

Accuracy Class 0.5%F.S

Output Voltage 250V AC

Operating Temperature -10-50 degree

Dimensions 76L*88W*60Hmm

single phase din rail energy meter

Product Description

Feature :

1.LCD display,35mm standard rail mounting

2.Power direction automatic recognition and indication function(export enrrgy is accumulated into the total energy)

3.Maximun direct input current is 80A AC, support CT

4.With power failure menory function

5.Multi-tariff energy consumption rate(sharp,peak,shoulder,off-peak)

6.RS485 communiction,Modbus-RTU

7.With one loop active power pulse output

8. Measure and display single phase voltage , current , frequency , active power , reactive power , apparent power,

power factor , kwh , kvarH ect.

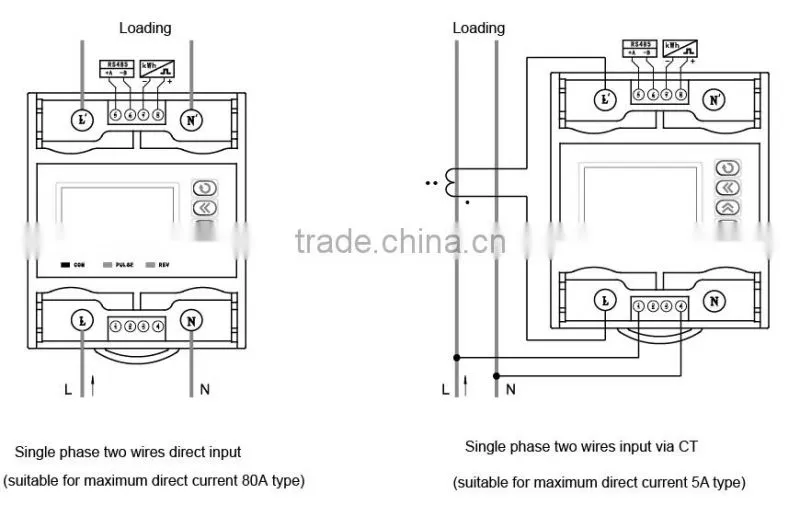

Model Illustration

Technical parameter

input voltage	AC 220V/110V	Reference frequencey	50/60Hz
input current	1.5A(6A) 5A(80A)	start current	0.001lh
accuracy	active power:0.5S reactive power 1.0S	work voltage	normal 0.9un-1.1un,limit0.7 un-1.2um
multi-tariff rate	sharp,peak, shoulder, off-peak time consumption rate	pulse output	one loop active power pulse output
temperature	normal work temperature -10`45degree work temperature limit -20`50degree store temperature -40`70degree	relative humidity	<95% with no condensation
EMC	standard :IEC/EN61000 related to anti-EMC directive	measure net	single phase 2 wires
