Digital Ampere Meter
SOMMY brand EN8 Series intelligent digital voltage and ampere meter could be used along with CT/PT/shunt/voltage divider/power transducer. Measuring and displaying the voltage and current and alarm output according to the setting value.There are three kinds of alarm modes : normal value,high value and low value, applying for the measuring accossions of high requirements.
Features:
1.Accuracy:DC 0.2%F.S
2.Two High/Low limit setting alarm output
3.With 4 digits/5 digits settable display function
4.With analog output 4-20mA
5.RS485 communication interface, Modbus RTU protocol
Ordering Code
Model |
Range |
Alarm |
Analog |
Communication |
AC max input |
DC max input |
EN8-A10AV/DV◊ |
2/20/200/600V |
without |
without |
without |
3/30/300/700V |
3/30/300/700V |
EN8-A18AV/DV◊ |
2/20/200/600V |
without |
without |
with |
3/30/300/700V |
3/30/300/700V |
EN8-RC10AV/DV◊ |
2/20/200/600V |
with |
without |
without |
3/30/300/700V |
3/30/300/700V |
EN8-RC18AV/DV◊ |
2/20/200/600V |
with |
without |
with |
3/30/300/700V |
3/30/300/700V |
EN8-DC10AV/DV◊ |
2/20/200/600V |
with |
with |
without |
3/30/300/700V |
3/30/300/700V |
EN8-DC18AV/DV◊ |
2/20/200/600V |
with |
with |
with |
3/30/300/700V |
3/30/300/700V |
Model |
Range |
Alarm |
Analog |
Communication |
AC max input |
DC max input |
EN8-A10AA/DA◊ |
2A/5A/200mA |
without |
without |
without |
3A/5A/300mA |
3A/75mV/300mA |
EN8-A18AA/DA◊ |
2A/5A/200mA |
without |
without |
with |
3A/5A/300mA |
3A/75mV/300mA |
EN8-RC10AA/DA◊ |
2A/5A/200mA |
with |
without |
without |
3A/5A/300mA |
3A/75mV/300mA |
EN8-RC18AA/DA◊ |
2A/5A/200mA |
with |
without |
with |
3A/5A/300mA |
3A/75mV/300mA |
EN8-DC10AA/DA◊ |
2A/5A/200mA |
with |
with |
without |
3A/5A/300mA |
3A/75mV/300mA |
EN8-DC18AA/DA◊ |
2A/5A/200mA |
with |
with |
with |
3A/5A/300mA |
3A/75mV/300mA |
Technical specification
Power supply |
100-240 AC/DC |
Contact capacity |
AC250V/3,DC 30V/3A |
Power consumption |
≤10VA |
Working ambient |
0-50°C ≤85%RH |
Sampling speed |
2.5 times/s |
Loading capacity |
≤600Ω |
Accuracy level |
0.2/0.3 |
Analog output |
4-20mA |
Display range |
-19999 to +99999 |
||

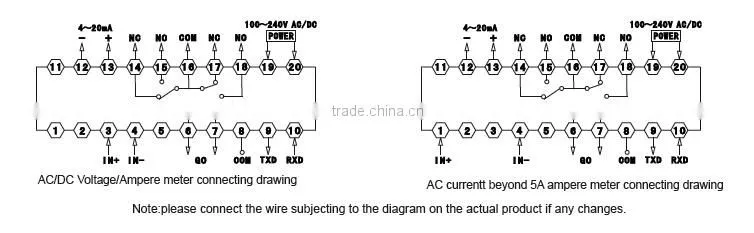

Connection Drawing
1. We offer 3 years warrany period for the Programmable Digital Timer Switch / Timer digital .
2. We offer free pre-sales and after-sales service , please call to our technical support line :400-8866-986 or 86-760-88722603 if have any quesiton.
3. We offer OEM and ODM service for you , also offer design and reasearch new product for you .
4. We offer price , promotion and technical support , if you want to be our distributor in your country or region .
