ES9W Voltage Ampere Meter
US$ 50 - 70
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOMMY
Model Number:
ES9W-RC38B
Payment & Shipping
Payment Methods:
Port of Shipment:
zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Reactive Power Compensation ControllerUS$ 100 - 150MOQ: 1 Piece -
Single Phase Din Rail Energy MeterUS$ 30 - 45MOQ: 1 Set
-
Single Phase Power Factor Meter / Watt MeterUS$ 22 - 26MOQ: 2 Pieces
-
Single Phase Digital Energy MeterUS$ 22 - 28MOQ: 2 Pieces
-
EP Series 3 1/2 Digital Volt-ammeterUS$ 11 - 11MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
SOMMY
Model Number
ES9W-RC38B
Display Type
Digital Only
Phase
Three Phase
Accuracy Class
0.5%
Output Voltage
250V AC or 30V DC
Operating Temperature
-10~50'C
Dimensions
96H x 96W
Feature:
1.Measure 3 phase Voltage and Ampere
2.3 Loop programable alarm output.
3.Isolation between input and output.
4.With RS485 connect port,Modbus RTU communication
5.One loop DI input
6.Thin instalation depth, save installation space.
Technical specification:
| Input voltage | AC 450V | Power supply | 100-240V AC/DC |
| Accuracy | 0.5%F.S | Communication | standard RS485 Modbus-RTU |
| Consumption | voltage<1VA current<0.4VA | Alarm output | 3 alarm output |
| Impedance | voltage>300KΩcurrent<20MΩ | Voltage overload | Continuous:1.2times instant:2 times/0.5S |
| Insulation impedance | >5MΩ | Work temperature | temperature -10-50degree humidity <80% RH |
| Current overload | continuous:1.2 times, instant 4 times/0.5S | ||
| Power consumption | <5VA | ||
| Withstand voltage/isolation | input VS power supply:1600V AC input VS output:1600V AC,power supply VS output 2000V AC | ||

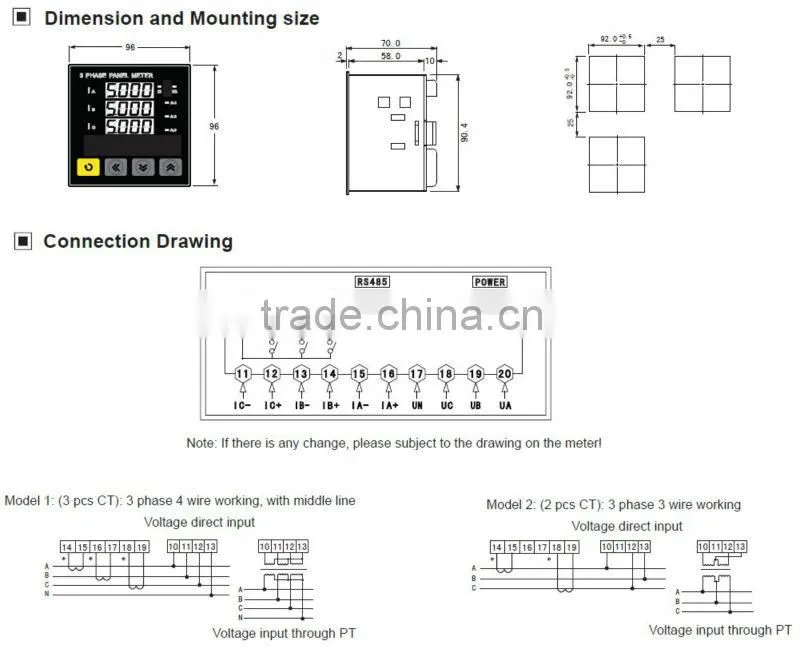

Model Illustration
| Model | Alarm | RS485 |
| ES9V-RD38V450 | 3 loop | Yes |
| ES9V-RD30V450 | 3 loop | No |
| ES9V-A38V450 | No | Yes |
| ES9V-A30V450 | No | No |
| ES9A-RD38A5 | 3 loop | Yes |
| ES9A-RD30A5 | 3 loop | No |
| ES9A-A38A5 | No | Yes |
| ES9A-A30A5 | No | No |
