Home > Products > Block Machine Plant > Hourdi 550*150*200mm Making Machine with High Capacity made by Chinese Manufacturer

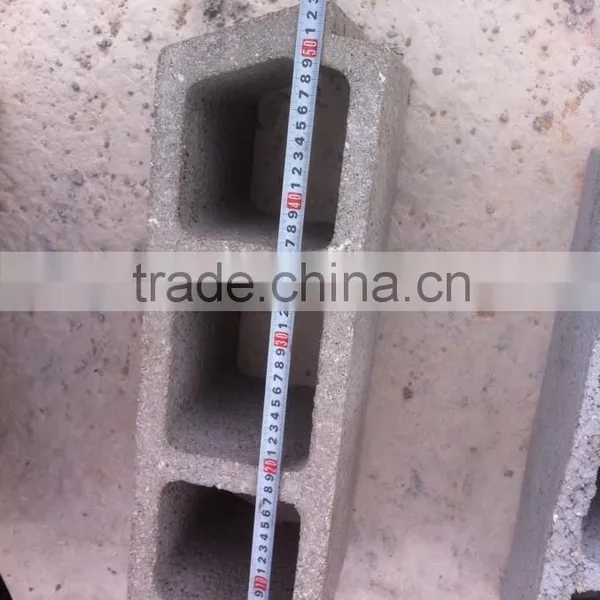

Hourdi 550*150*200mm Making Machine with High Capacity made by Chinese Manufacturer
- 100 Set / Sets per Month
- Shanghai Port
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Other, Cement, sand, gravel, fly ash |
Processing: | Brick Production Line | Method: | Other, Hydraulic and vibrating | Automatic: | Yes |
Capacity: | 19200 pcs per 8 hours(400x200x200mm) | Place of Origin: | Shanghai, China | Brand Name: | ZHANSHNEG Block Making Machine |
Model Number: | ZS-QT10-15 Block Making Machine | Voltage: | 380V | Power: | 54kw |
Dimension(L*W*H): | 3600*3100*3300mm | Certification: | CE, ISO9001, ISO14000, BV, CTC | Warranty: | 18 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Block Making Machine1. Block Making Machine produce solid
2.hollow block,paver.
3. Block Making Machine with PLC system.
Manufacturer, Fully Automatical Hollow Block Making Machine with High Capacity in China on Sale
Main Technical Parameter of ZS-QT10-15 Hollow Block Making Machine | |||||
Overall Size(mm) | 3600*3100*3300mm | ||||
Moulding Cycle | 15-18s | ||||
Power(KM) | 54KW | ||||
Area of molding | 1000*800mm | ||||
Height of molding | 40-230mm | ||||
Pallet size | 1060*860*25mm | ||||
Host weight | 14T | ||||
Master Frequency | 4500R/Min | ||||
Rated pressure | 36Mpa | ||||
Exciting force | 80-100KN | ||||
List of Theoretical Production Capacity | |||||
Proudcts | Specifications | Pc/Mould | Pc/Day | Pc/Year | |
Standard Brik | 240*115*53mm | 52 | 99,840 | 29,952,000 | |
Hollow Block | 390*190*190mm | 10 | 19,200 | 5,760,000 | |
Multi-hole Brick | 240*115*90mm | 24 | 46,080 | 13,824,000 | |
Pathway Brick | 200*100*60mm | 36 | 47,232 | 14,169,600 |
Main Features of Block Making Machine
1) Uses Japan Mitsubishi PLC control system and Delta Touch Screen. A. Visualization screen with easy operation; B. Is able to set up, update and amend the production perimeters, to maximize the production output; C. Dynamic display of the system’s status, automatic trouble shooting and warning notice; D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes; |
2)Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated highpressure and soft oil pipes, with easy installation; |
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well; |
4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency; |
5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise; |
6)Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant. |
Professional term introduce:
1.Table vibration:
Block Making Machine Energy from the vibration table through the pallet to the mixture, make the mixture density.
2.Pressure vibrating:
Pressure head of mould down to the top surface of concrete, at the same time vibration start. The Block Making Machine work with pressure and vibrating.
3.Feed vibrating:
The Block Making Machine operates with small vibrating when the material feeding car at the top of the mould frame, let the concrete easy to fall down to the mould frame.
4.Green block:
Block just forming by the Block Making Machine, without curing.
5.Demoulding:
Separate the finished block produced by Block Making Machine from the mould.
Five advantages of Automatic Block Making Machine:
Our Block Making Machine, with harmonic cooperation between electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.
1. The Block Making Machine use Japan Mitsubishi PLC control system and Delta Touch
A. Screen, use Schneider and Omron relays and contactors:
Mitsubishi PLC, with great adaptability, guarantees the stability and reliability of the Block Making Machine;
B. Deltan touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
2. The Block Making Machine use Frequency Conversional Control Technology, which controls the Block Making Machine:
A. Frequency Conversion Control: Our Block Making Machine guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Frequency controlled vibration: controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Our Block Making Machine Power saving: 30%;
3. The Block Making Machine use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. The Block Making Machine 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. The Block Making Machine use heat treatment on moulds and main parts of the Block Making Machine:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52;
C. Greatly improves the using lifetime of the Block Making Machine by 50%.
Block Making Machine
Block Making Machine Production Line
Actual Block Making Machine Line
Workshop
Our Block Making Machine Customers
The Production and raw materials of Block Making Machine
Dear customer, if you are interested in our Block Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
