1. 11n 300mbps 2.4Ghz
2. AR9341 chipset solution

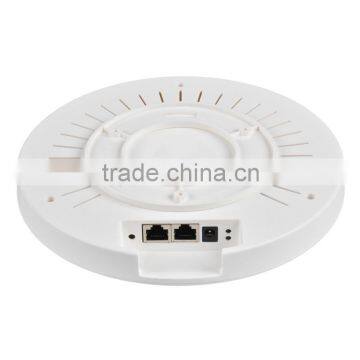

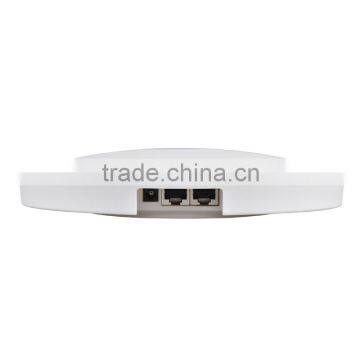

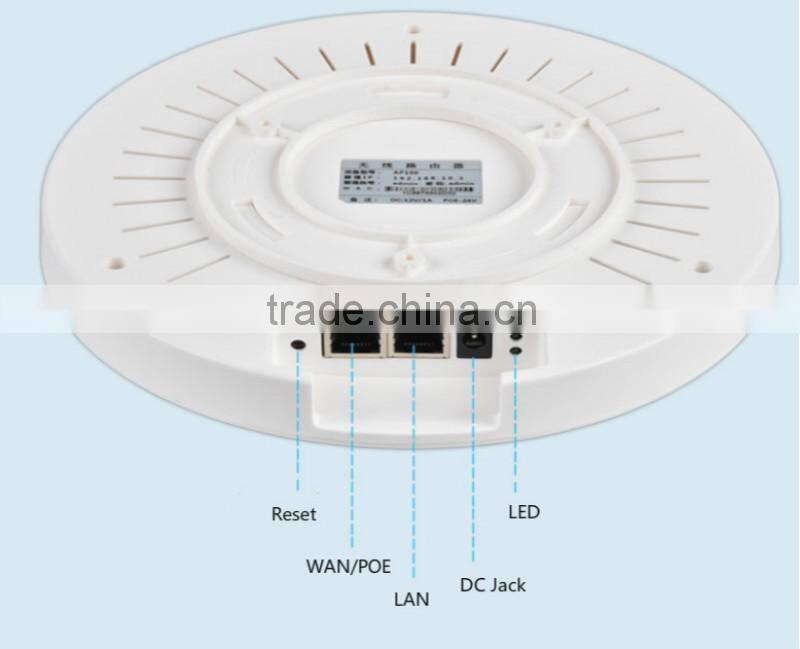

3. 1 wan(POE),1 lan,1 reset,1 dc jack
4. 8M(max 16M) flash,64M ram
5. Compact,beautiful design

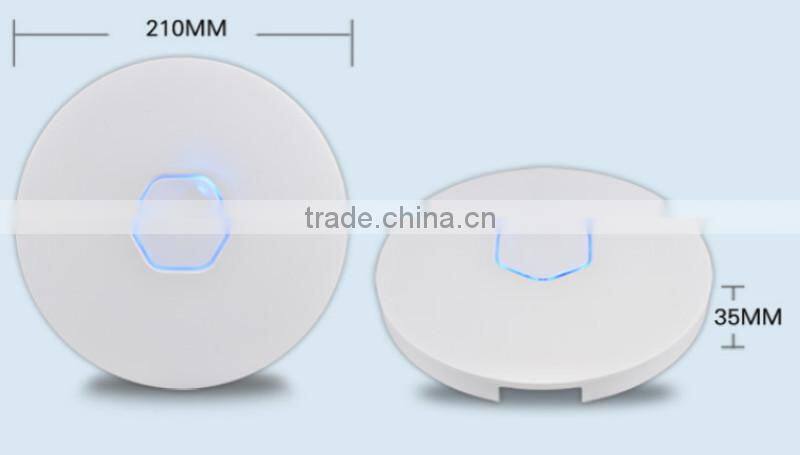

6. 210*35mm
300Mbps Atheros AR9341 Ceiling mountable AP,wireless AP,Indoor AP,WiFi AP
Ceiling mount AP/wireless AP/Indoor AP/WiFi AP comply with IEEE802.11n protocol wireless access technology and senior MIMO technology,transmission rate reaches 300Mbps,and compatible with IEEE802.11b/g equipment.
POE power supply technology allow carrying out data transmission and power supply for AP through only one ethernet cable.

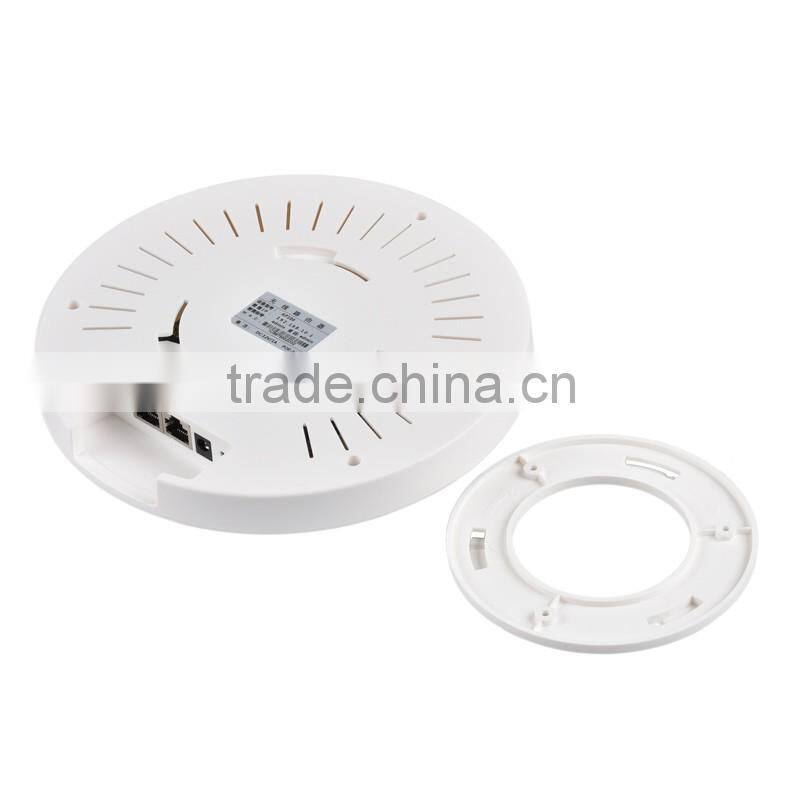

Ceiling mount design and POE power supply technology make wireless network deployment easier.

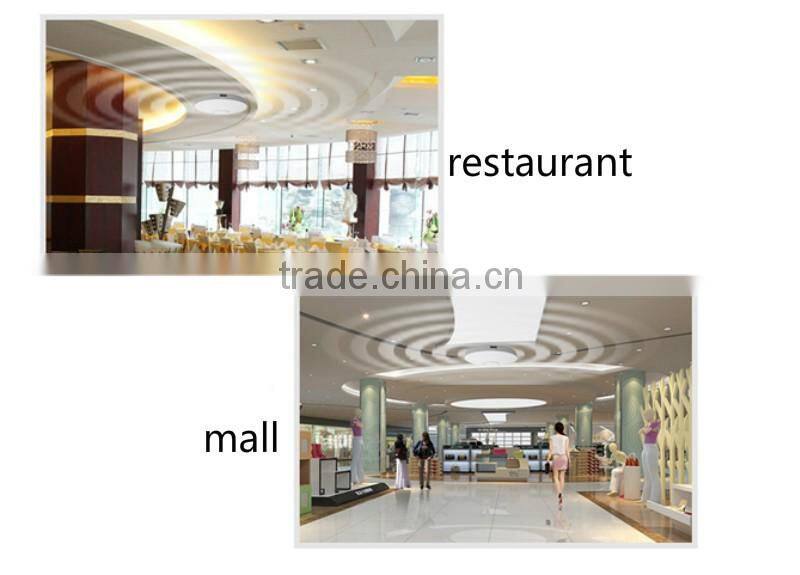

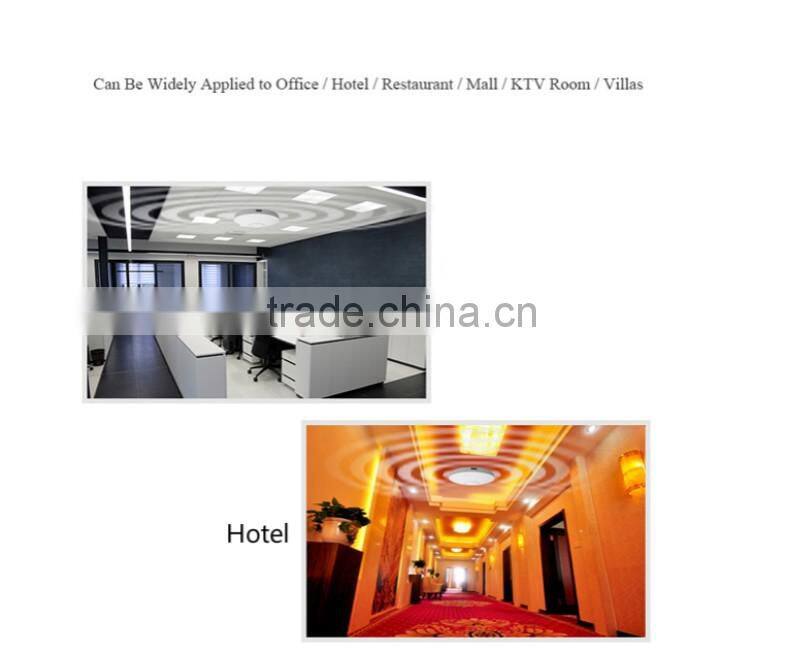

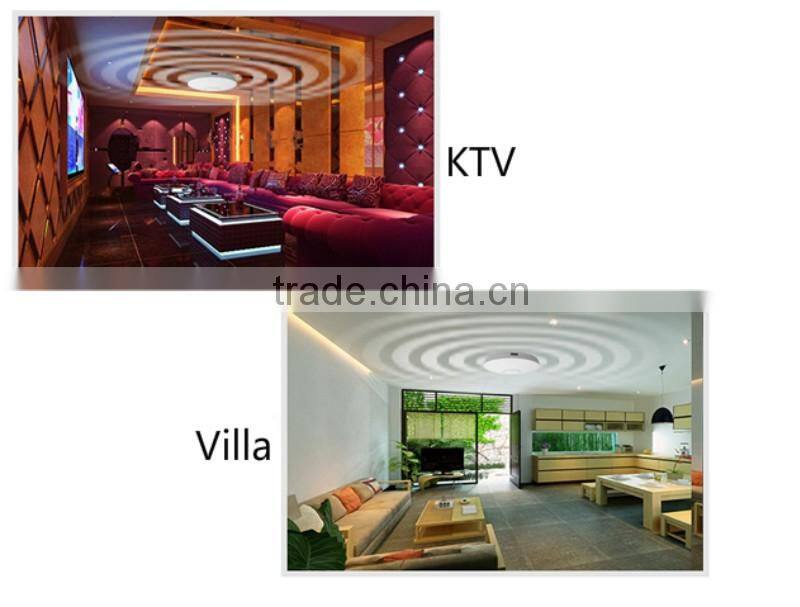

It fits for indoor wireless coverage of enterprises,schools,hotels,factory,company,campus etc.
Meanwhile,the unique watchdog technology makes AP work more stable and ensure the wireless network operate normally for long time.

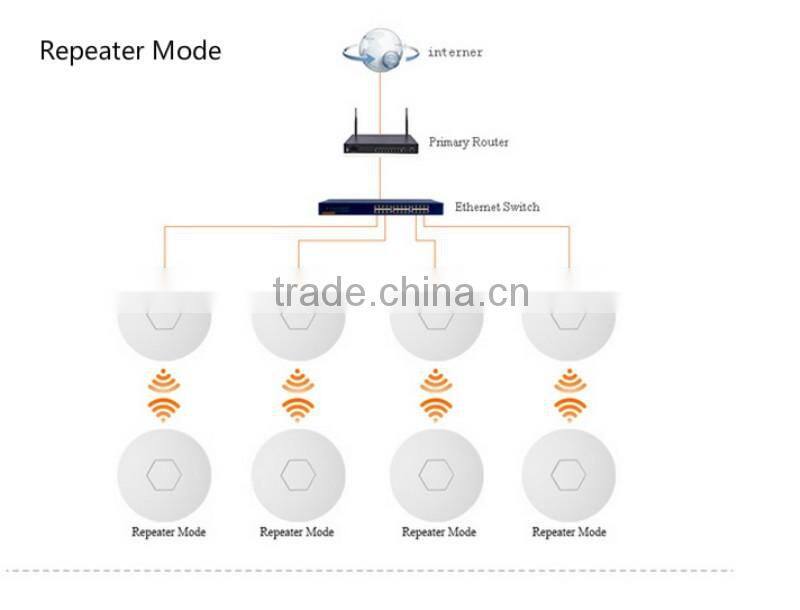

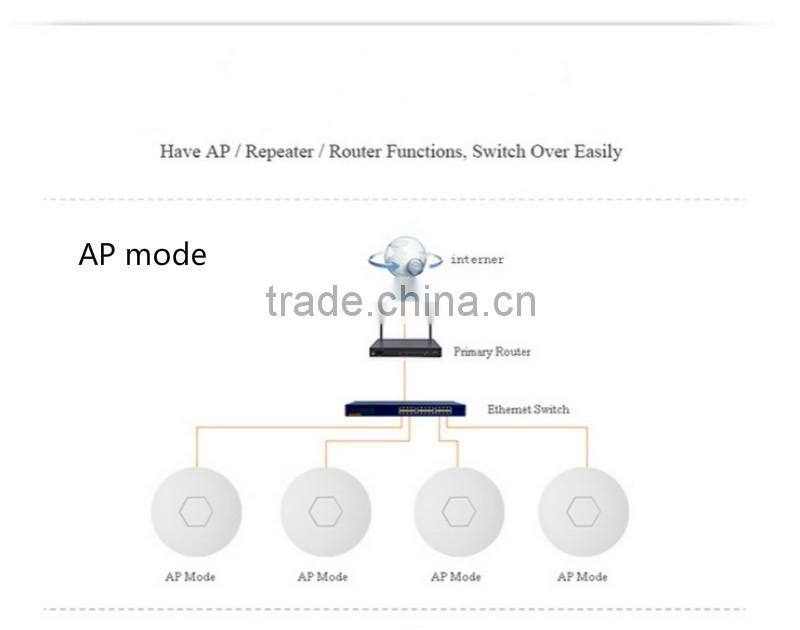

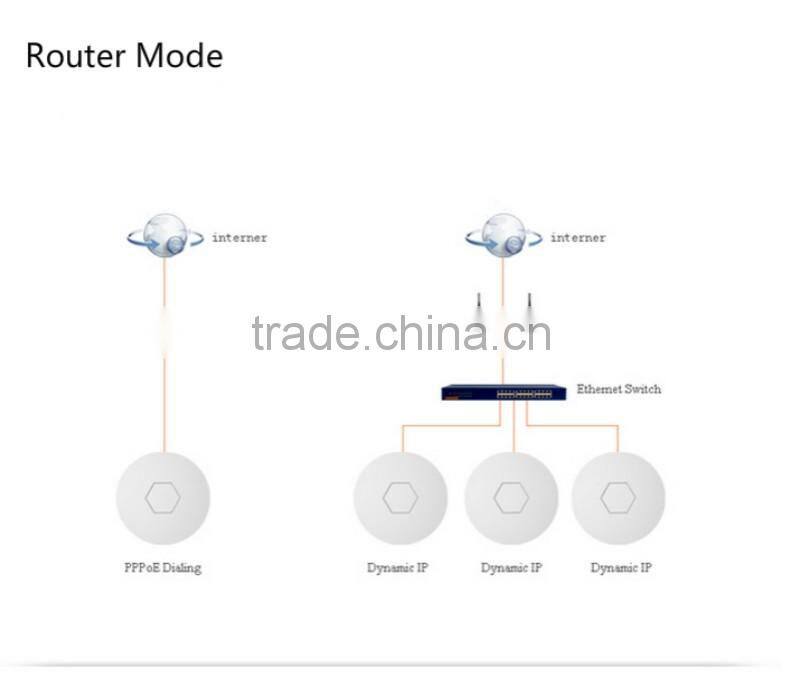

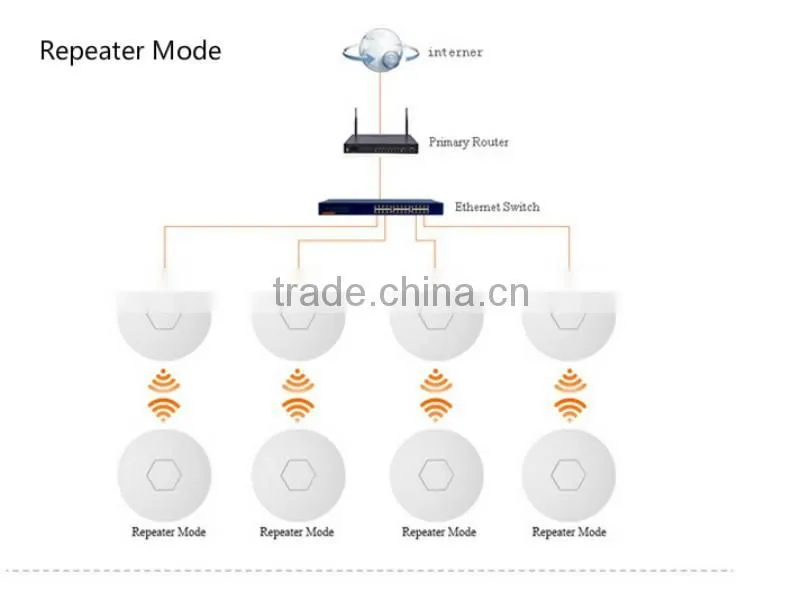

Ceiling mount AP/wireless AP/Indoor AP/WiFi AP makes wireless coverage and expanding earier and more flexible.It supports repeat/AP/router modes etc.wireless wifi signals.
Kindly reminder:When using POE power supply,the quality and length of the ethernet cable will affect the power supply.Suggesting customers use the better UTP—Unshielded Twisted Pair/STP ethernet cable cat 5/5e/6 or upper level.The length of the connecting cable between two equipments less than 70m when 24v poe,and less than 100m when 48v poe
Specifications:
| Hardware specifications | ||||
| ATHEROS AR9341 535MHZ RF 64MB DDR 8M Flash(support max 16M) | ||||
| Frequency Range & Channels: | 2.4~2.4835GHz;20MHz,40MHz | |||
| RF Power Output: | 24dBm | |||
| Modulation Mode: | DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM | |||
| Response Rate: | 300M: -68dBm@10%PER | |||
| 270M: -68dBm@10%PER | ||||
| 130M: -68dBm@10%PER | 108M: -68dBm@10%PER | |||
| 54M: -85dBm@10%PER | 11M: -85dBm@10%PER | |||
| 6M: -88dBm@10%PER | 1M: -90dBm@10%PER | |||
| Data and operational parameters | ||||
| Auto transmission rate selection: | 802.11n: 6.5-300Mbps | |||
| 802.11g: 6/9/12/18/24/36/48/54/108Mbps | ||||
| 802.11b: 1/2/5.5/11Mbps | ||||
| Support WLAN Standards: | IEEE 802.11b/g/n, IEEE 802.3u, IEEE 802.3af | |||
| Support Protocols: | CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3/4/5 | |||
| Using Environment & Physically Properties | ||||
| Using Environment | Physically Properties | |||
| Working Temperature: | -30°C~65°C | Product Weight: | 0.855KG(Net) / 1.24KG(Gross) | |
| Storage Temperature: | -50°C~80°C | Product Size: | 210x210x35(mm) | |
| Humidity(Non Condensing): | ≤95% | Package Size: | 350x250x90(mm) | |
| Management | ||||
| Based on WEB Management: | Support | |||
| SNMP MIB: | Support | |||
| Telnet: | Support | |||
| Security | ||||
| MAC Address Control: | Support | |||
| Encryption: | Support 64/128 bits WEP, WPA, WPA2, 802.1X | |||
| Antenna | ||||
| Frequency Range: | 2.4~2.4835GHz | |||
| Polarization Mode: | Vertical,Horizontal | |||
| Antenna Gain: | 4dBi | |||
Shipping by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
40pcs/ctn,kraft paper box or OEM package.
•All products have been checked and packaged in good condition before dispatching.
•All products have 2 years warranty.
•Provide OEM/ODM service.
Shenzhen APT Communication Technology Co.,Ltd.is located in Shenzhen China,establishedsince 2012.
We provide OEM/ODM manufacturing service for network equippment hardwares like Ethernet.
switch/POE switch/Splitter/Injector,WIFI access point/router/bridge/CPE,media
converter/Fiber switch etc.
We have experienced engineer team to design excellent performance hardwares at reasonable.
price and fast lead time.Our engineers used to develop H3C products.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome also.
Do you provide firmware support?
Yes,support.
Is there MOQ limit?
Welcome to place sample order to check the quality before bulk orders.
Also welcome to visit our factory before bulk order.
Of course,different qty with different price.
Since we mainly do OEM/ODM orders.So large qty makes the cost lower.
