Welcome to Customize all kinds of L2 ethernet switch/POE switch/POE splitter/POE injector/wifi ap/router/CPE etc!High quality reasonable price fast lead time!
Overview

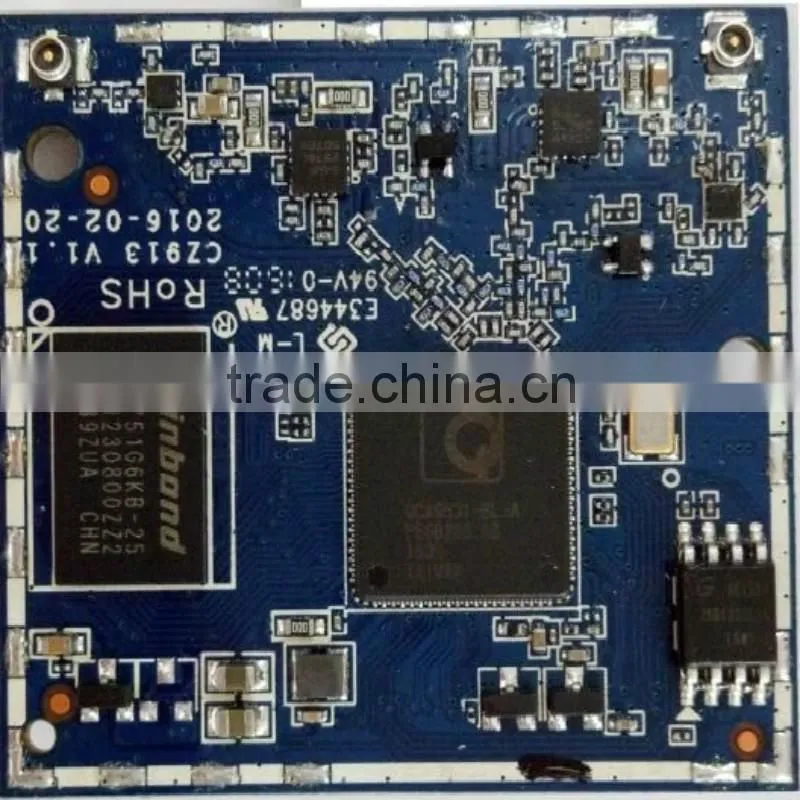

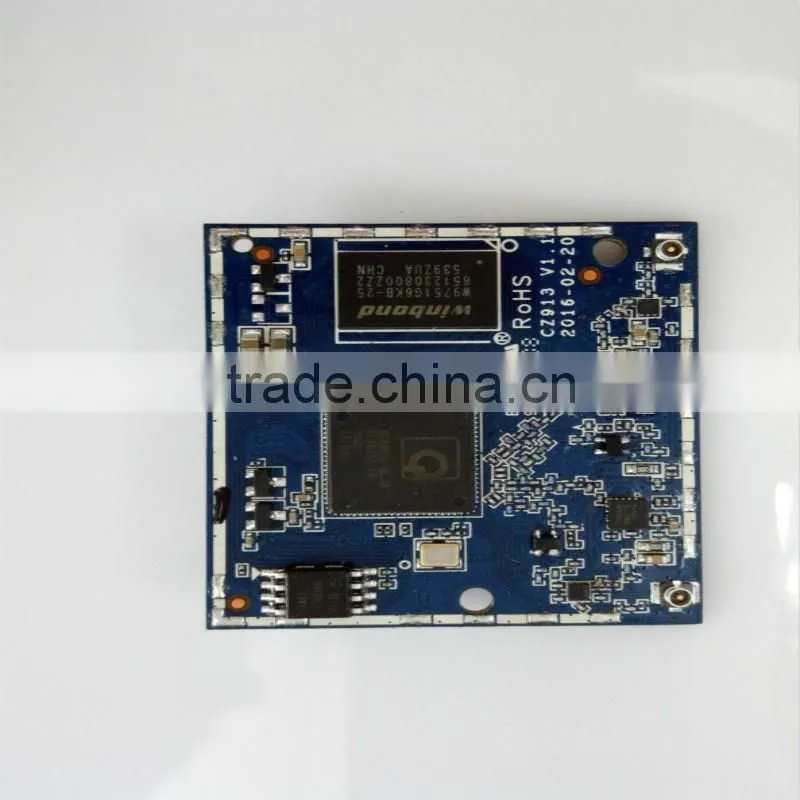

APT-WM300 WLAN module was designed according to IEEE802.11 b/g/n.The throughput is up to 300Mbps.It is based on MIMO technology which can efficiently enhance wireless transmission performance:rate/stability/coverage.It supports CCA technology channel selected feature, which can avoid channel conflicted automatically.What’s more,it supports WEP/WPA/WPA2 and various wireless encryption tandards,which guarantee the network transmission security and safe.
specification
Features |
Specifications |
|
Wireless standard |
802.11b/g/n, 2.4Ghz |
|
Code size |
+ |
|
Data size |
64MByteDDR2 |
|
Antenna interface |
1 PC I-PEX connector(can connect the external antenna) |
|
Work mode |
Router and bridge mode |
|
Physics rate |
IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 300Mbps |
|
Management mode |
Support local WEB management |
|
Radio |
Frequency range |
2.412 ~ 2.472 GHz |
Channel |
13 channels. which can be configured to the specifications of the United States, Canada, Europe, Japan, China and other regions. |
|
Modulation mode |
DSSS , CCK and OFDM |
|
Coding scheme |
BPSK, QPSK, 16QAM and 64QAM |
|
Antenna |
Onboard i-pex receptacle to connect external antenna |
|
RF Received Sensitivity |
802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps 802.11n: -65dBm @ 72 MbpsHT20; -62dBm @ 150 MbpsHT40; |
|
RF Maximum output power |
802.11b: 18 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 36 Mbps; 16.5 ± 1dBm @6~24Mbps. 802.11nHT20: 12 ± 1dBm @ MCS7HT20; 13 ± 1dBm @ MCS6 HT20; 14 ± 1dBm @ MCS5 HT20; 15 ± 1dBm @ MCS4 HT20; 16± 1dBm @ MCS3 HT20; 17 ± 1dBm @ MCS2 HT20; 17 ± 1dBm @ MCS1 HT20; 17± 1dBm @ MCS0 HT20. 802.11nHT40: 12 ± 1dBm @ MCS7HT40; 13 ± 1dBm @ MCS6 HT40; 14 ± 1dBm @ MCS5 HT40; 15 ± 1dBm @ MCS4 HT40; 15.5± 1dBm@MCS3 HT40; 15.5± 1dBm @ MCS2 HT40; 15.5±1dBm @MCS1 HT40; 15.5 ± 1dBm @ MCS0 HT40. |
|
Encryption mode |
802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
|
|
Ethernet port function |
WAN Port |
1 FE WAN interface, 10/100M auto adaptive, Full/Half duplex,support Auto-MDI/MDIX, Ethernet interface connect with mainboard by the pins in module. |
LAN Port |
2FE WAN interface, 10/100M auto adaptive, Full/Half duplex,support Auto-MDI/MDIX, Ethernet interface connect with mainboard by the pins in module. |
|
I/O Function |
Function Interface |
1xUART, 1x I2S, 1xUSB host/client, 1xWAN, 2xLAN |
GPIO |
18 general-purpose I / O ports (Part of the I / O ports will bemultiplexed with other interfaces) |
|
Operating voltage |
3.3V |
|
3.3VPeak current |
500mA |
|
Operating temperature |
0°C to +40°C |
|
Operation humidity |
10 ~ 90%(non-condensed) |
|
Product size |
40 mm x 40 mm |
|

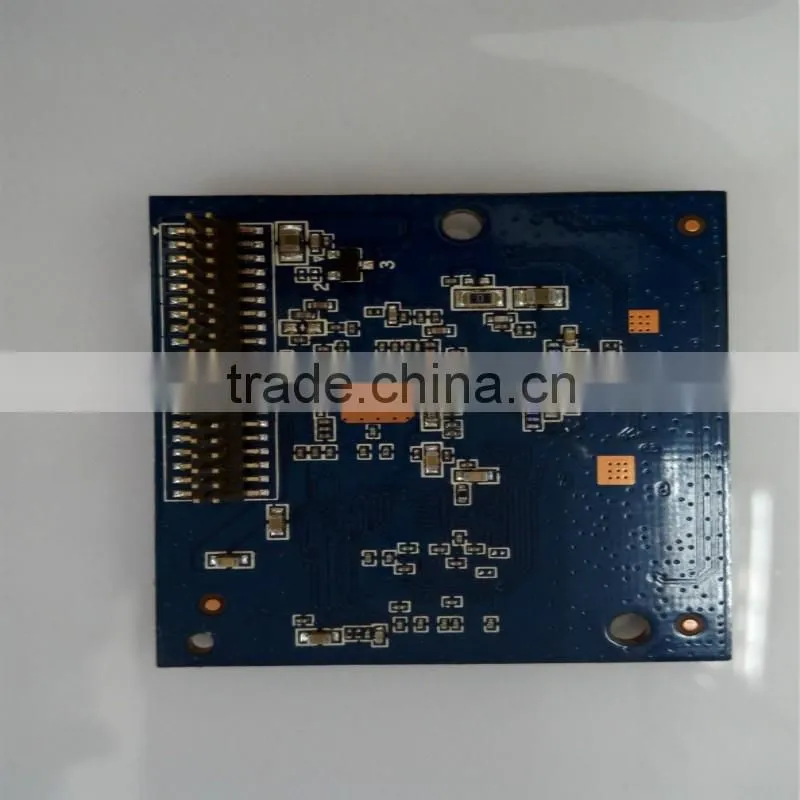

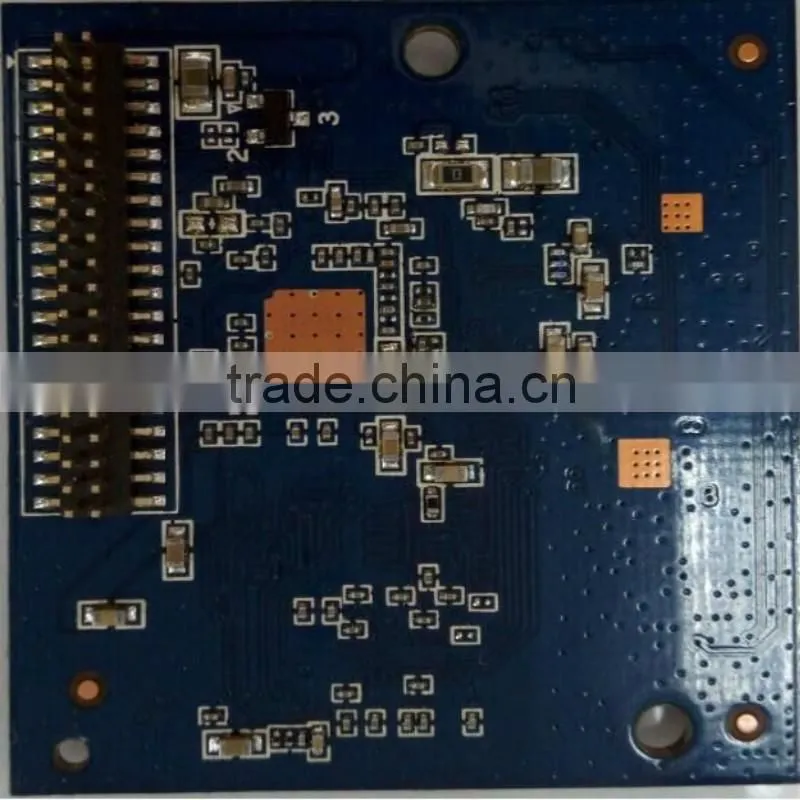

PINs definition
PIN Number |
Signal Name |
Direction |
Description |
1 |
GPIO19/I2S_WS |
I/O |
GPIO19/Word select for stereo |
2 |
GPIO20/I2S_SD |
I/O |
GPIO20/Serial data input/output |
3 |
GPIO22/I2S_MICIN |
I/O |
GPIO22/Data input |
4 |
GPIO18/I2S_CK |
I/O |
GPIO18/Stereo clock |
5 |
WAN_RX- |
IA |
Ethernet port WAN receive pair |
6 |
WAN_RX+ |
IA |
|
7 |
WAN_TX- |
OA |
Ethernet port WAN transmit pair |
8 |
WAN_TX+ |
OA |
|
9 |
LAN4_TX- |
OA |
Ethernet port LAN4transmit pair |
10 |
LAN4_TX+ |
OA |
|
11 |
LAN4_RX- |
IA |
Ethernet port LAN4 receive pair |
12 |
LAN4_RX+ |
IA |
|
13 |
LAN3_RX- |
IA |
Ethernet port LAN3 receive pair |
14 |
LAN3_RX+ |
IA |
|
15 |
LAN3_TX- |
OA |
Ethernet port LAN3 transmit pair |
16 |
LAN3_TX+ |
OA |
|
17 |
GPIO17/WAN-LED |
I/O |
GPIO17/WAN-LED |
18 |
GPIO16/LAN4-LED |
OI,OL |
GPIO16/LAN4-LED |
19 |
GPIO15/LAN3-LED |
OI,OL |
GPIO15/LAN3-LED |
20 |
GPIO0/WLAN-LED |
OI,OL |
GPIO0/WLAN-LED |
21 |
GPIO21/I2S_MCK |
I/O |
GPIO21/Master clock |
22 |
VDD2V |
Power Out |
DC 2.0VPower supply transformer tap to the external network |
23,24,29,30 |
GND |
Power |
Power Ground |
25,26 |
VDD33 |
Power In |
DC 3.3V(500mA maximum),by powersupply pin |
27 |
GPIO7 |
I/O |
GPIO7 |
28 |
VDD5V |
Power In |
DC 5V(500mA maximum), by powersupply pin |
31 |
GPIO10/UART_TX |
O |
GPIO10/UART_TX |
32 |
GPIO9/UART_RX |
I |
GPIO9/UART_RX |
33 |
GPIO1/LED1 |
I/O |
GPIO1/LED1 |
34 |
GPIO13/LED2 |
I/O |
GPIO13/LED2 |
35 |
GPIO11/JUMP_START |
I/O |
GPIO11/JUMP_START button input |
36 |
GPIO14/LED3 |
I/O |
GPIO14/LED3 |
37 |
GPIO27/LED7 |
I/O |
GPIO27/LED7 |
38 |
GPIO26/LED8 |
I/O |
GPIO26/LED8 |
39 |
USB+ |
IA/OA |
USB D+ Signal |
40 |
USB- |
IA/OA |
USB D- Signal |
Notes: I----input, O----output, A----analog,L----active low, H----active high, OI----inverted output, and the GPIO pins must not apply voltageexceed 2.5 V.
Shipping by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
400pcs/ctn,Foam bag,kraft paper box or OEM package.
•All products have been checked and packaged in good condition before dispatching.
•All products have 2 years warranty.
•Provide OEM/ODM service.
Shenzhen APT Communication Technology Co.,Ltd.is located in Shenzhen China,establishedsince 2012.
We provide OEM/ODM manufacturing service for network equippment hardwares like Ethernet.
switch/POE switch/Splitter/Injector,WIFI access point/router/bridge/CPE,media
converter/Fiber switch etc.
We have experienced engineer team to design excellent performance hardwares at reasonable.
price and fast lead time.Our engineers used to develop H3C products.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome also.
Do you provide firmware support?
Yes,support.
Is there MOQ limit?
Welcome to place sample order to check the quality before bulk orders.
Also welcome to visit our factory before bulk order.
Of course,different qty with different price.
Since we mainly do OEM/ODM orders.So large qty makes the cost lower.
