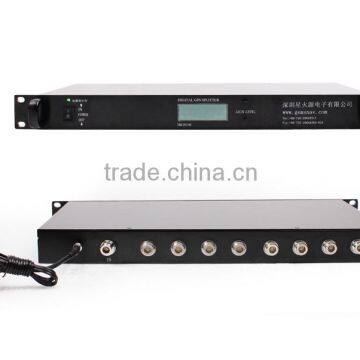

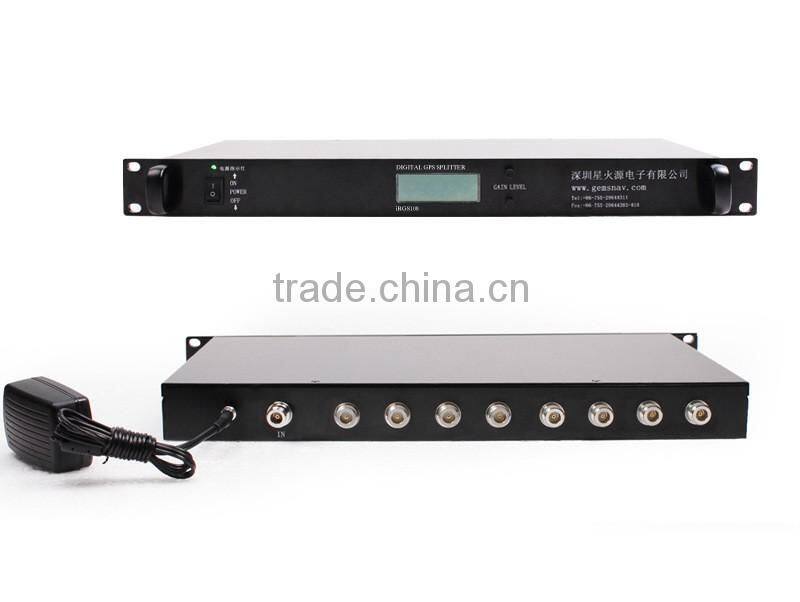

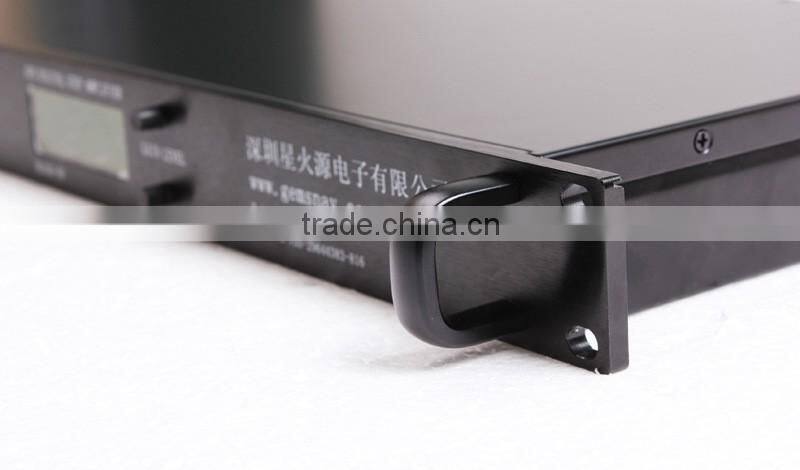

The iRGS208 GPS Splitter is a two-input, eight-output GPS device. When entering the GNSS signal system management terminal to set the IP, the software can display the power of each port , the number of GPS visible satellites and the value of C / No , the number of Beidou visible satellites and the value of C / No .
The iRGS208 GPS Splitter is a two-input, eight-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between receiving GPS units. In this scenario, the iRGS208 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. The others outputs would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.
[Technical Parameters]
- Application in large GPS indoor coverage
- Port has control and alarm functions
- Show information of GPS/Beidou2 B1 in time
- Gain 0 dB ~10dB
- Response For
- *GPS:L1,L2,L2C,L5;
- *Glonass:G1,G2;
- *Galileo:L1,E1,E2,E5(E5a,E5b),E6;
- *Beidou2:B1,B2,B3;
- *IRNSS:L1,L5;
- *OmniStar
- High Isolations >30dB

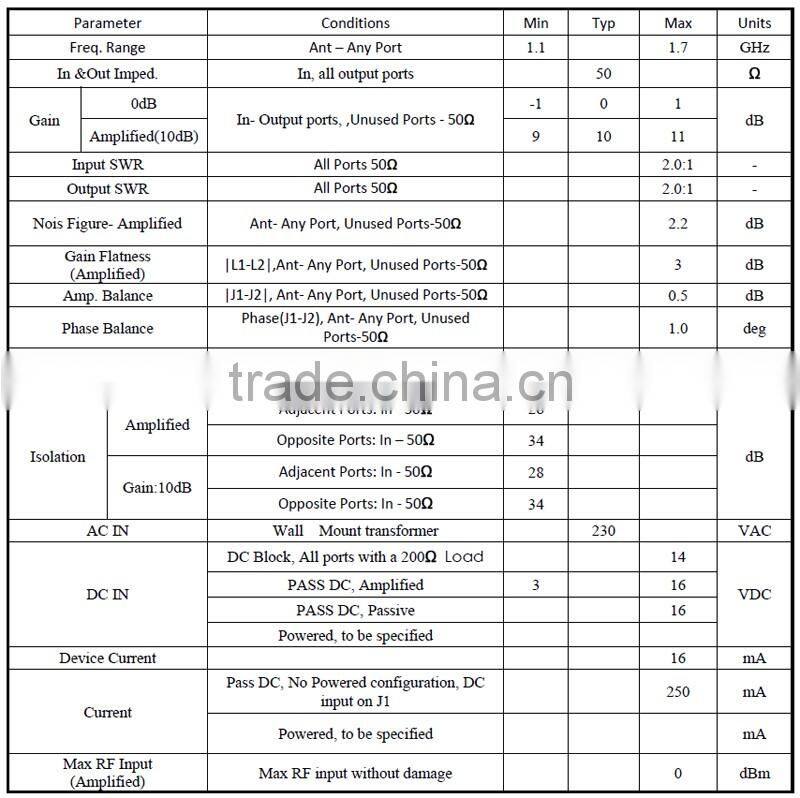

[Specifications]
Electrical Specifications, Operating Temperature -40 to 85°c
Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
