Help Center10dB One-input 8 Way Outputs GPS Splitter
Related Products
-
2 Way 21dB Power Splitter GPS SplittersUS$ 1 - 95MOQ: 1 Piece -
Dual Antennas 16 Way Rackmount GPS SplittersUS$ 1 - 1,950MOQ: 1 Piece
-
GPS Splitter 8 Way GPS Power Splitter IGS18US$ 1 - 405MOQ: 1 Piece
-
Dual Antennas Input Gain Control 8 Way GPS SplitterUS$ 1 - 1,200MOQ: 1 Piece
-
2 Way GPS Power Splitter GPS SplittersUS$ 1 - 148MOQ: 1 Piece

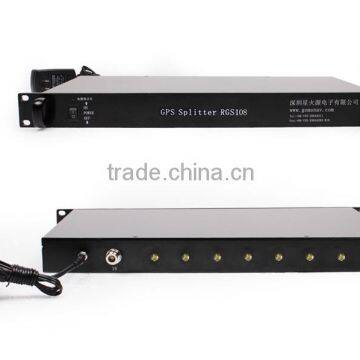

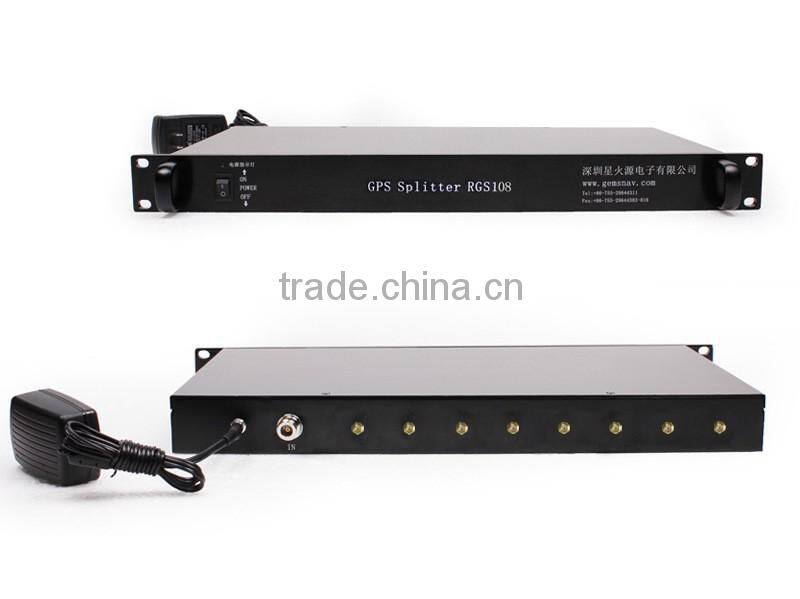

The RGS108-SF GPS Splitter is a one-input, eight-output GPS device. This product typically finds application where an inputfrom an active GPS roof antenna is split evenly between four receiving GPS units. In this scenario, the RGS108 can beconfigured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on thatport.The others outputs would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.
Design For Wireless Infrastructure Applications
Gain : 0dB,10dB ,(can be specified)
Response For
GPS:L1,L2,L2C,L5;
Glonass:G1,G2;
Galileo:L1,E1,E2,E5(E5a,E5b),E6;
Beidou2:B1,B2,B3;
IRNSS L1,L5;
OmniStar
High Isolations >30dB
Electrical Specifications, Operating Temperature -40 to 85°c
[Product details]
[Product Specifications]
Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
