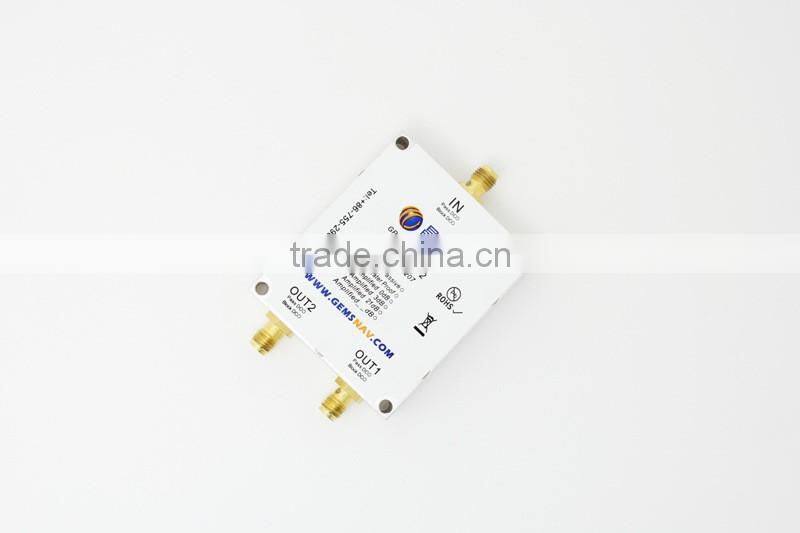

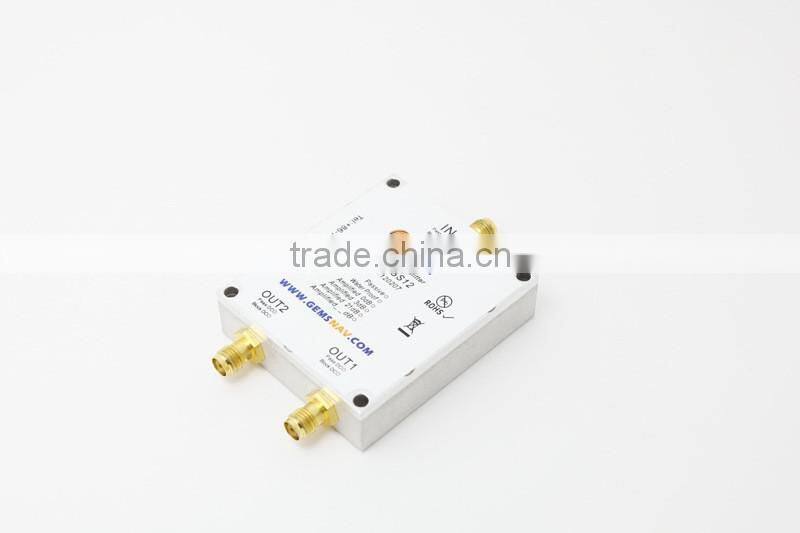

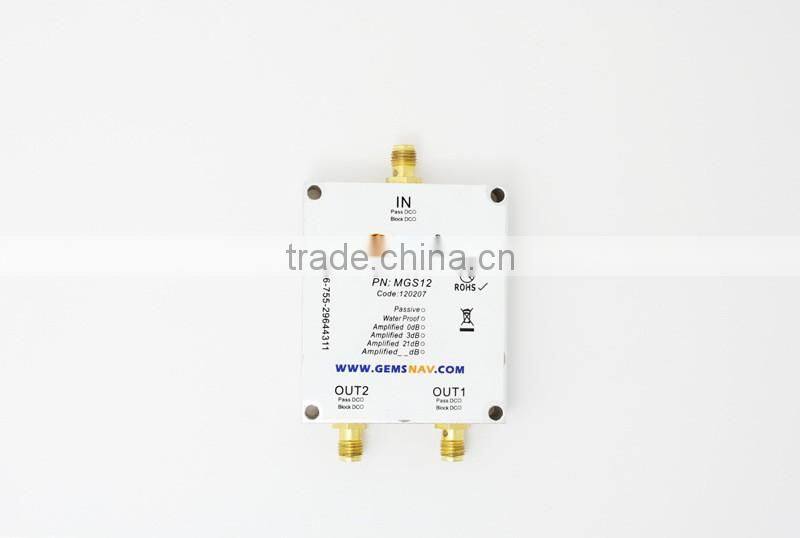

The MGS12-SF GPS Splitter is a one-input, two-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between two receiving GPS units. In this scenario, the MGS12-SF can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. The second output (J2) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.
Design For Wireless Infrastructure Applications
Gain : 0dB, 21dB And Passive Version Available
Response For
GPS:L1,L2,L2C,L5;
Glonass:G1,G2;
Galileo:L1,E1,E2,E5(E5a,E5b),E6;
Beidou2:B1,B2,B3;
IRNSS L1,L5;
OmniStar
High Isolations > 28dB
Electrical Specifications, Operating Temperature -40 to 85°c

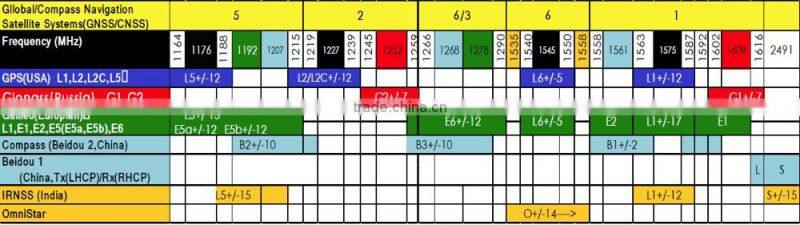

Frequency reference table:
Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
