Design For Wireless Infrastructure Applications;
Gain : 0dB, 15dB , 24dB(can be specified );
Response For:
GPS:L1,L2,L2C,L5;
Glonass:G1,G2;
Galileo:L1,E1,E2,E5(E5a,E5b),E6;
Beidou2:B1,B2,B3;
IRNSS L1,L5;
OmniStar
High Isolations > 28 dB;

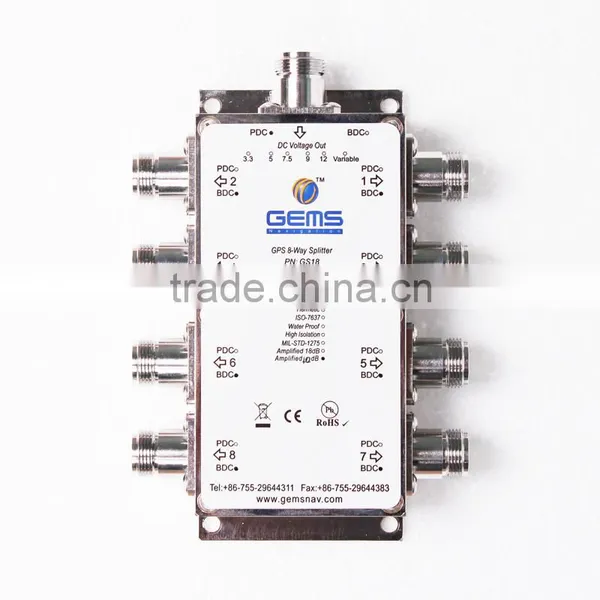

The GS18 GPS splitter is one-input, eight-output GPS splitter. This product typically finds application where an input from an active GPS roof antenna is split evenly between four receiving GPS units. In this scenario, the GS18 can be configured to pass DC from an RF output to the antenna input port in order to power an active GPS antenna on that port. The others outputs would feature a 200Omh DC load to simulate an antenna DC current draw for any receiver connected to those ports.
Electrical Specifications, Operating Temperature -40 to 85°c
| Parameter | Conditions | Min | Typ | Max | Units |
| Freq.Range | Ant-Any Port | 1.1 | 1.7 | GHz | |
| In&Out Imped | In, all output ports | 50 | Ω | ||
|
Gain 0dB Amplified(10dB) |
In-Output ports, Unused ports-50Ω | -1 | 0 | 1 | dB |
| 9 | 10 | 11 | |||
| Input SWR | All Ports 50Ω | 2.0:1 | - | ||
| Output SWR | All Ports 50Ω | 2.0:1 | - | ||
|
Nois Figure -Amplified |
Ant-Any Port,Unused Ports-50Ω | 2.2 | dB | ||
|
Gain Flatness (Amplifier) |
|L1-L2|,Ant-Any Port,Unused Ports-50Ω | 3 | dB | ||
| Amp.Balance | |J1-J2|,Ant-Any Port,Unused Ports-50Ω | 0.5 | dB | ||
| Phase Balance | Phase(J1-J2),Ant-Any Port,Unused Ports-50Ω | 1.0 | deg | ||
| Group Delay Flatness | 1 | ns | |||
|
Isolation Amplified
Gain:10dB |
Adjacent Ports:In-50Ω | 28 | dB | ||
| Opposite Ports:In-50Ω | 34 | ||||
| Adjacent Ports:In-50Ω | 28 | ||||
| Opposite Ports:In-50Ω | 34 | ||||
| AC IN | Wall Mount transformer | 230 | VAC | ||
| DC IN | DC Block,All ports with a 200Ω Load | 14 | VDC | ||
| Pass DC,Amplified | 3 | 16 | |||
| Pass DC,Passive | 16 | ||||
| Powered, to be specified | |||||
| Device Current | 16 | mA | |||
| Current | Pass DC,No Powered configuration,DC input on J1 | 250 | mA | ||
| Powered,to be specified | mA | ||||
| Max RF Input(Amplified) | Max RF input without damage | 0 | dBm |

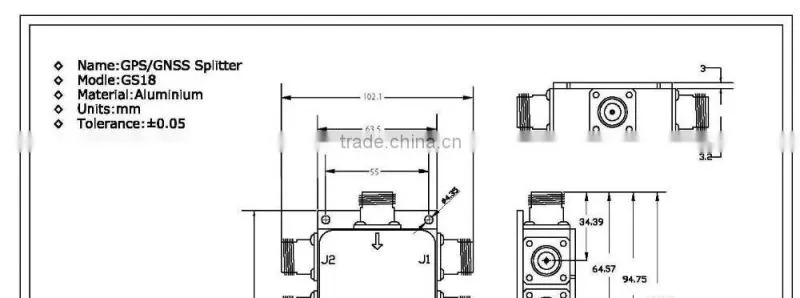

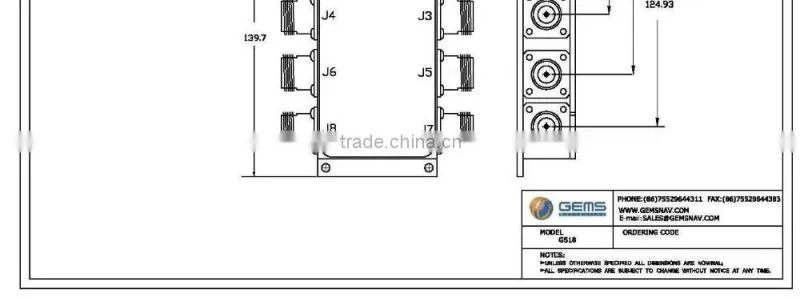

[ Mechanical]
Frequency reference table:
Warranty:
1. 1 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
