Dual system 8way indoor GPS signal repeaters kit

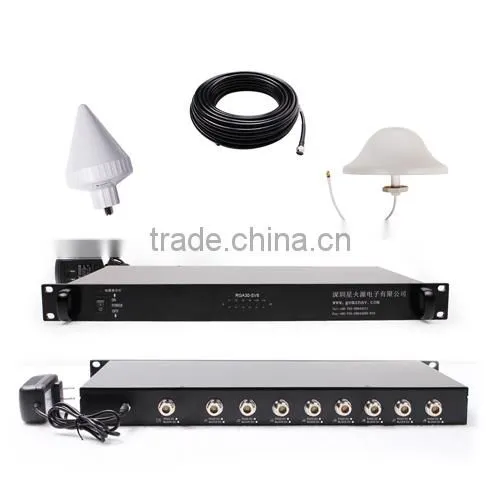

Standard Configurations:

◇ Step Adjustable Amplifier:RGA30-SV8,1 ea;
◇ Receiving Antenna: TIMING4200,1 ea;
◇ Cable Assembly:RG8,30M, 1ea;
◇ Cable Assembly:KSR240,10M,some ea;
◇ Sending Antenna:GRA10,some ea.
◇ Ligtingprotector:1 ea;

Functional Description

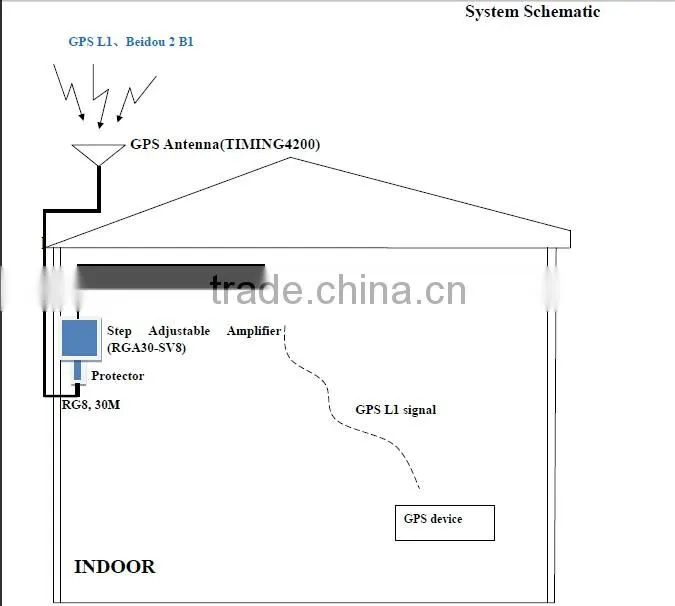

BGRK-8 is a repeater operates by receiving GPS/Beidou satellite signals with an antenna located outside

Typical Application

☆ For GPS/Beidou products testing
      For testing the cell-phone with GPS & Beidou , PND, car navigators, tracker, survey products, etc.

☆ For the purpose of GPS/Beidou signal covering

Step Adjustable Amplifier RGA30-SV8

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Function:

Used to adjust system gain,0-35 dB adjustable, you can control when needed.
with AC220/9V power adapter, supply power to system and itself.

①②are input/output, connect to cable assembly, N female(Can be customized).
③ For power control switch. system power-on when allocated to upward, opposite, system stops working.
④Toggle switch can adjust the gain ; the position(figure) that toggle switch stop represents the total value of gain
reduction (on the basis of maximum gain 35dB).

Specification

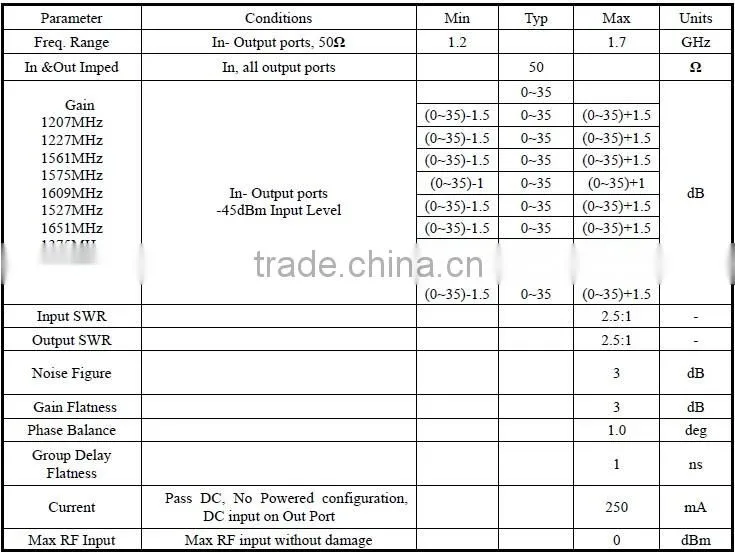

Electrical Specifications, Operating Temperature -40 to 85°c

GPS antenna（Receiving antenna）: TIMING 4200

Transmiting antenna:GRA10

Cable Assembly

We apply two cable assembly,RG8,30M and KSR240,10M. Please log in , enter RG8 or KSR240,then you can see the two cable’s technical specification.

 1 RG8(KSR 400)

RG8,30M is usually used for connecting GPS antenna
TIMING4000 and lighting‐protector. You can calculate the length according to your actual environment, also 60m or 90 be selected.
Connector N Male‐N Male.
The attenuation value is 0.2 dB/m; Thus, you can assess the system, or contact with our sales to select proper configuration.

   2 KSR 240

KSR240,10M is usually used to connect RGA30‐SV and GRA10.

The attenuation value 0.4dB/M.
Connector: N Male‐SMA Male.

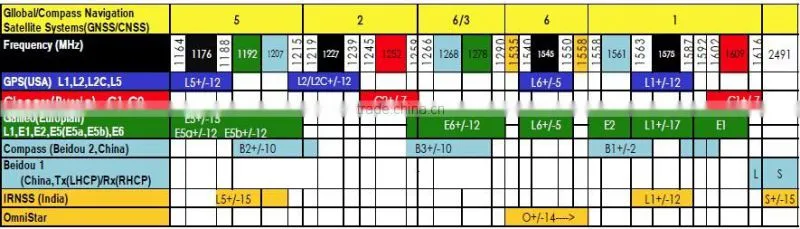

Frequency Reference Table

Shenzhen GEMS Rf&Mirowave Electronics Co., Ltd.

GEMS RF&MICROWAVE and GEMS NAVIGATION was established in 2007, professionally designs, products and sales of coaxial microwave devices and equipment. GPS indoor coverage systems and accessories, high-power coaxial attenuators, high-power coaxial load, we accumulated many years of designing and manufacturing experience, our own designed and product of GPS indoor coverage systems and related GPS power splitter and amplifier, GPS antenna and other products widely used in microwave communications, mobile communications, high-precision measurement, power, research institutions, colleges and universities, manufacturing and other fields.

Typical faults and solutions

GPS repeater BGRK-8 fault location and remove:

First: Check the adapter of RGA30-SV8, whether it connects to the power supply and power-up to
RGA30-SV8 . You can test the voltage between input axis and shell, if it’s about 5V,power supply was ok,
RGA30-SV8 was also works ok. Or else, check the power socket to assure the contact was ok.

Second: If it’s 5V at the input of Gain Controller, you need to check whether the fixing is steady between
GRA10 and the cable.

Third: If the below two step were ok, please check the outdoor antenna TIMING4200 .You can, check the
voltage between axis of the cable connector and the outer shielding layer to make sure it’s 5V.If no
voltage, the circuit has fault, please contact our technical support. If 5V,the antenna TIMING4200 can be
suspected.(In fact, this case hasn’t appear in our engineering projects.)
