GBRK is a repeater operates by receiving GPS/Beidou satellite signals with an antenna located outside the building and re‐radiating the signals into the indoor area or covered space where satellite signal cannot reach.
GBRK is a single point GPS & Beidou repeater, one transmitting antenna transmit GPS L1 & Beidou2 B1 signal.
If need extend the system, you can apply multi‐system receiving antenna and sending antenna, which can support multi‐system, multi‐waveband satellite signal receive and transmit, so as to cover satellite signal indoor.
Typical Application:

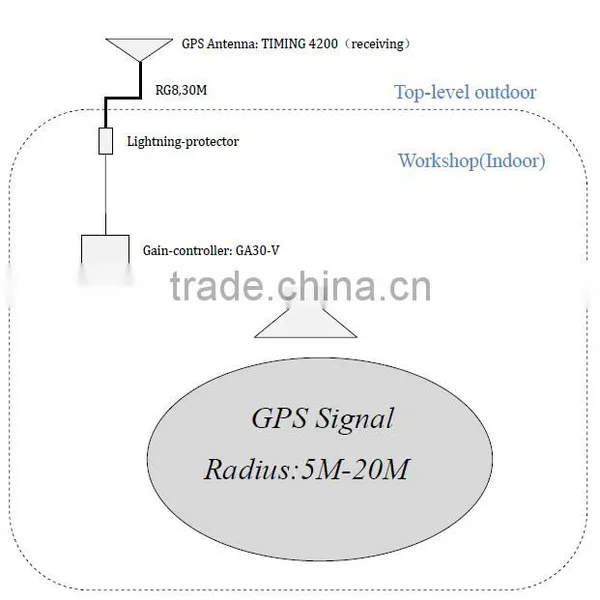

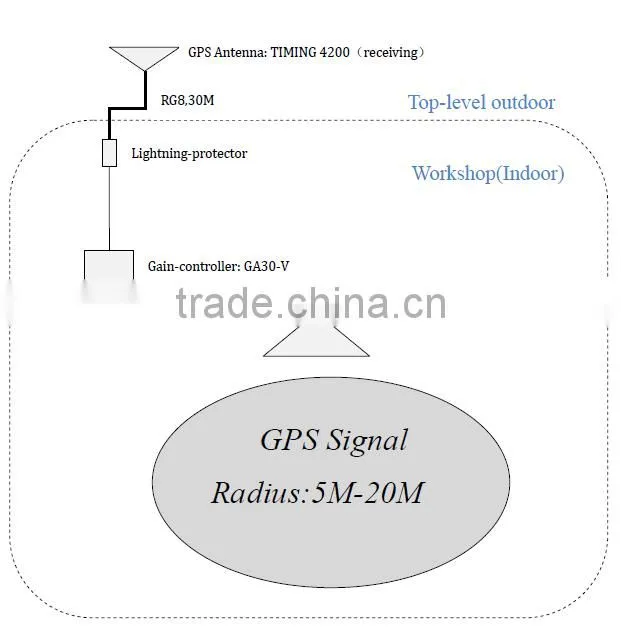

Topological(under standard configuration)

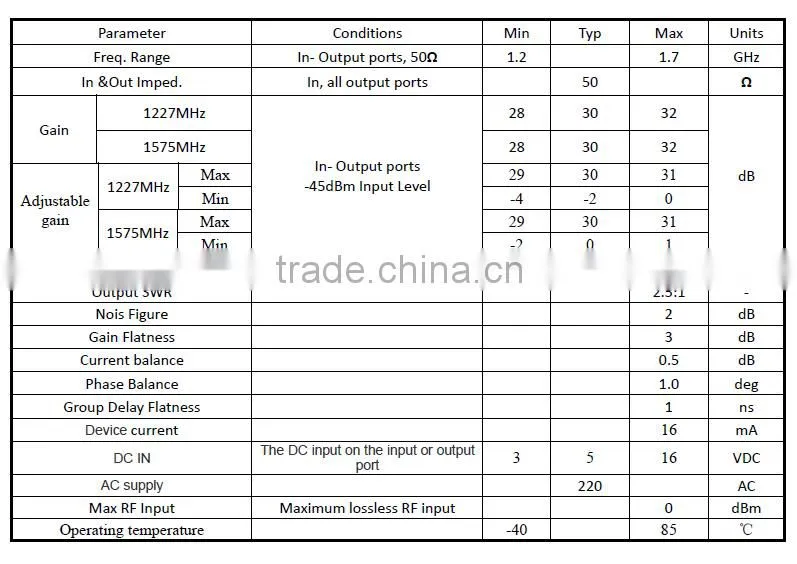

Specification

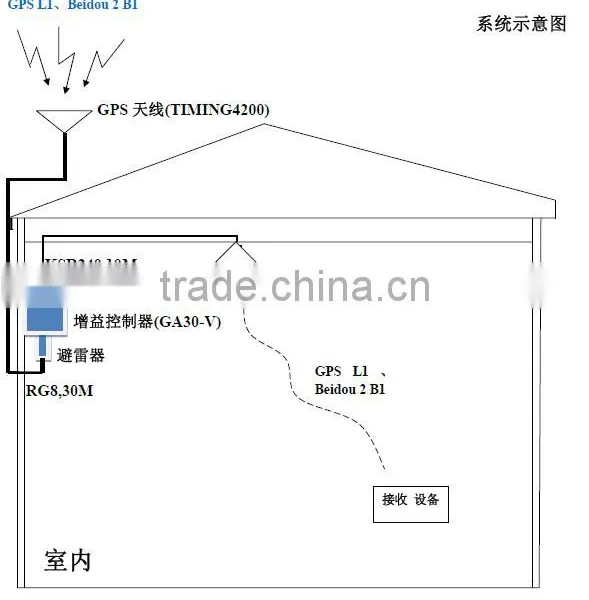

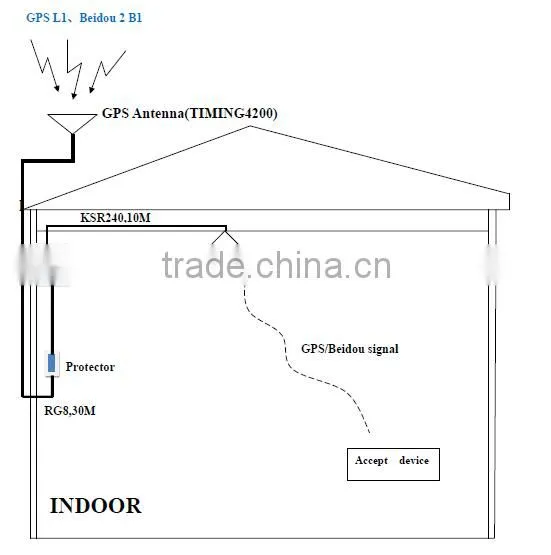

System Schematic
1. GPS Antenna(TIMING 4200) be installed on roof of the building;
2. Cable assembly RG8 fixed along the out wall, one terminator connects TIMING 4200,the another to protector at the appropriate place. In some special environment, select PE or PVC material plastic pipe to protect the cable assembly is quite sensible;
3. Protector, Amplifier and Gain controller are fixed on the wall indoor;
4. Cable assembly KSR240 is fixed along the ceiling of the operating place;
5. Antenna GRA10 be fixed on the ceiling or crossbeam.
6. According to the actual environment, you can adjust positions of some parts, which can make you the
adjust, change and overhaul more easily.
GEMS RF&MICROWAVE and GEMS NAVIGATION was established in 2007, professionally designs, products and sales of coaxial microwave devices and equipment. GPS indoor coverage systems and accessories, high-power coaxial attenuators, high-power coaxial load, we accumulated many years of designing and manufacturing experience, our own designed and product of GPS indoor coverage systems and related GPS power splitter and amplifier, GPS antenna and other products widely used in microwave communications, mobile communications, high-precision measurement, power, research institutions, colleges and universities, manufacturing and other fields.
