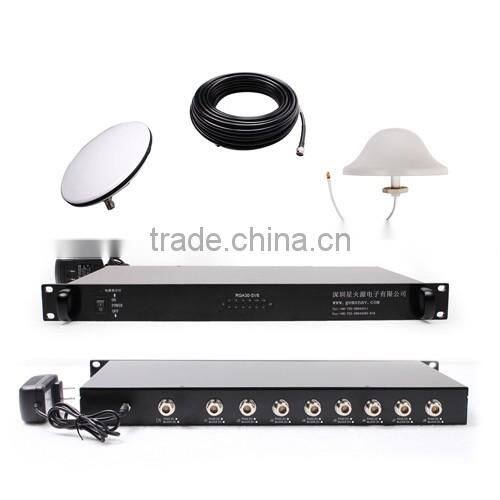

Standard Configurations:
◇ Step Adjustable Amplifier: RGA30-SV8,1 ea;
◇ Receiving Antenna: BGG39,1 ea;
◇ Cable Assembly: RG8,30M, 1ea;
◇ Cable Assembly: KSR240,20M,some ea;

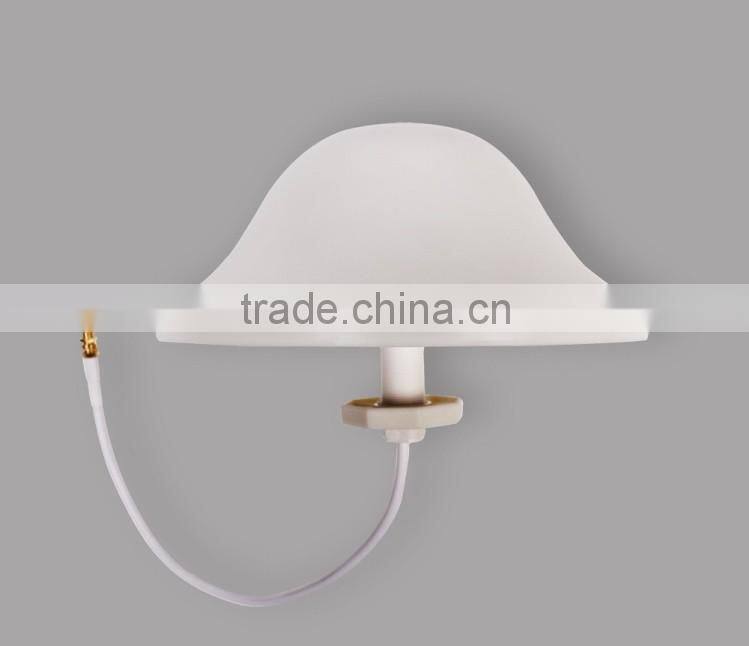

◇ Sending Antenna: GRA10,some ea.
◇ Ligting-protector:1 ea;
Functional Description
BGGRK-8 is a repeater operates by receiving GPS/GLONASS/Beidou2 satellite signals with an antenna
located outside the building and re‐radiating the signals into the indoor area or covered space where
satellite signal cannot reach.
BGGRK-8 is a eight point GPS/GLONASS/Beidou2 repeater, many transmitting antenna transmit
GPS/GLONASS/Beidou2 signal. This solution offer adjustable test signal to receiver.
If need extend the system, you can add assemblies and sending antennas, so as to cover satellite signal
indoor large area and more rooms or buildings.
Typical Application
☆ For GPS/Beidou2/Glonass products testing
For testing the cell‐ phone with GPS/Beidou2/Glonass , PND, car navigators, tracker, survey
products, etc.
☆ For the purpose of GPS/ Beidou2/Glonass signal covering
transportation etc.

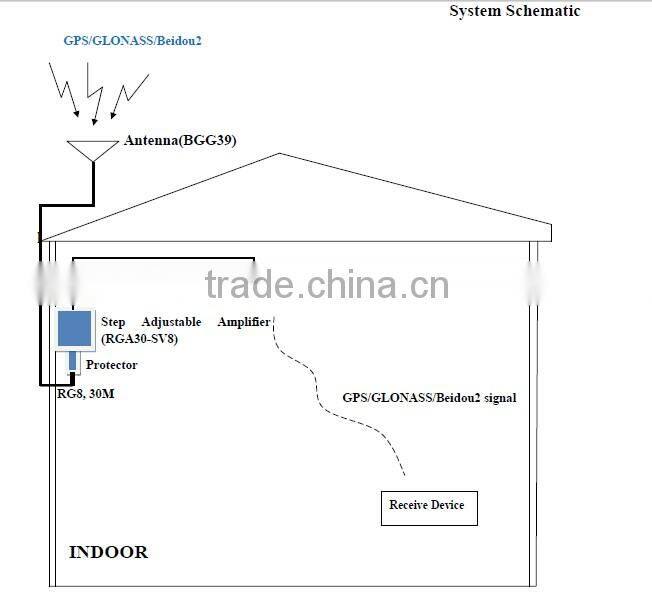

1. GPS/GLONASS/Beidou2 Antenna(BGG39) be installed on roof of the building;
2. Cable assembly RG8 fixed along the out wall, one terminator connects BGG39,the another to protector at
the appropriate place. In some special environment, select PE or PVC material plastic pipe to protect the
cable assembly is quite sensible;
3. Protector and Step Adjustable Amplifier are fixed on ceiling or on the table;
4. Cable assembly KSR240 is fixed along the ceiling of the operating place;
5. Antenna GRA10 be fixed on the ceiling .
According to the actual environment, you can adjust positions of some parts, which can make you the
adjust, change and overhaul more easily.
Step Adjustable Amplifier RGA30-SV8
Function:
Used to adjust system gain,0-35 dB adjustable, you can control when needed.with AC220/9V power adapter, supply power to system and itself.

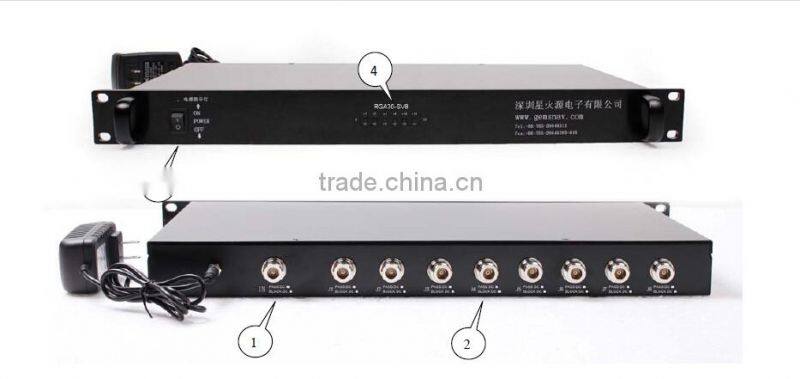

①②are input/output, connect to cable assembly, N female(Can be customized).
③ For power control switch. system power-on when allocated to upward, opposite, system stops working.
④Toggle switch can adjust the gain ; the position(figure) that toggle switch stop represents the total value of gain reduction (on the basis of maximum gain 35dB).

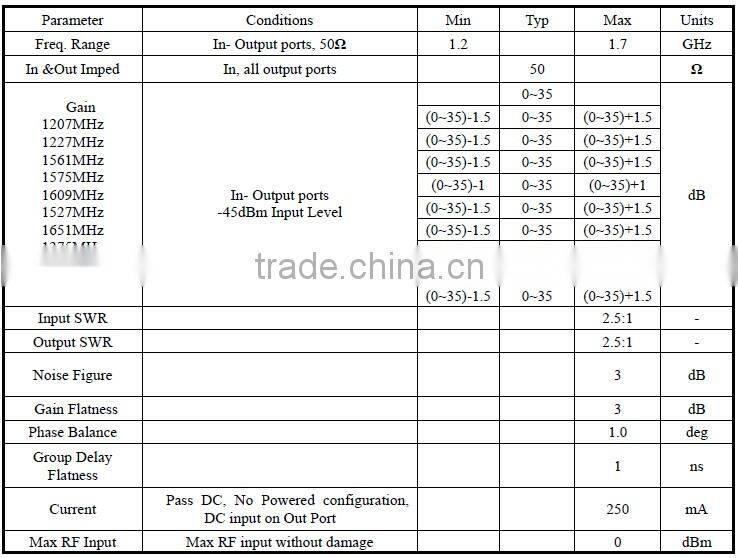

Specification
Electrical Specifications, Operating Temperature -40 to 85°c
Antenna（Receiving antenna）: BGG39
Transmiting antenna:GRA10
★ GPS:L1,L2;
★ GLONASS:G1,G2;
★ Beidou2:B1,B2,B3
Cable Assembly
We apply two cable assembly,RG8,30M and KSR240,10M. Please log in , enter RG8 or KSR240,then you can see the two cable’s technical specification.
1 RG8(KSR 400)
RG8,30M is usually used for connecting GPS antenna
TIMING4000 and lighting‐protector. You can calculate the length according to your actual environment, also 60m or 90 be selected.
Connector N Male‐N Male.
The attenuation value is 0.2 dB/m; Thus, you can assess the system, or contact with our sales to select proper configuration.
2 KSR 240
KSR240,10M is usually used to connect RGA30‐SV and GRA10.
The attenuation value 0.4dB/M.
Connector: N Male‐SMA Male.

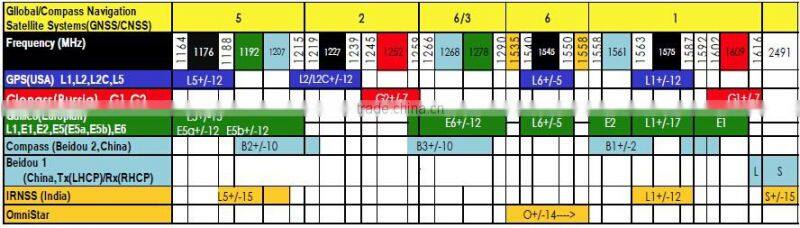

Frequency Reference Table
Shenzhen GEMS Rf&Mirowave Electronics Co., Ltd.
GEMS RF&MICROWAVE and GEMS NAVIGATION was established in 2007, professionally designs, products and sales of coaxial microwave devices and equipment. GPS indoor coverage systems and accessories, high-power coaxial attenuators, high-power coaxial load, we accumulated many years of designing and manufacturing experience, our own designed and product of GPS indoor coverage systems and related GPS power splitter and amplifier, GPS antenna and other products widely used in microwave communications, mobile communications, high-precision measurement, power, research institutions, colleges and universities, manufacturing and other fields.
Typical faults and solutions
GPS repeaterBGGRK‐8 fault location and remove:
First: Check the adapter of RGA30‐SV8 whether it connects to the power supply and power‐up to
RGA30‐SV8. You can test the voltage between input axis and shell, if it’s about 5V,power supply was ok,
RGA30‐SV8 was also works ok. Or else, check the power socket to assure the contact was ok.
Second: If it’s 5V at the input of Gain Controller, you need to check whether the fixing is steady between
GRA10 and the cable.
Third: If the below two step were ok, please check the outdoor antenna BGG39 .You can, check the
voltage between axis of the cable connector and the outer shielding layer to make sure it’s 5V. If no
voltage, the circuit has fault, please contact our technical support. If 5V,the antenna BGG39 can be
suspected.(In fact, this case hasn’t appear in our engineering projects.
