Specifications
1.feeding size less than700mm2.discharging size lessthan12-150mm
duction capacity190-460t/h
4.certificate ISO9001:2008
Hammer crusher
Summarize
Hammer crusher is suitable for compression strength less than 250Mpa of the hard and medium hard materials, fine and intermediate crushing. Such as limestone, dolomite, shale, gypsum, grave stone, coal and other medium hard brittle materials. Features: big feeding, even product graininess. According to different needs, you can select and book screen plate. It is much suitable for the mining, cement, building materials and other industries.
Principle of work
Hammer crusher is set of many hammerheads that distributes regularly, hammer and wheel, and through the composition of the rotor shaft, through the motor, V belt driven spindle, so that the rotor rotates, the hammer by the centrifugal force generated by rotation around to the start bulk material from the inlet into the crushing chamber, the high-speed rotation of the hammer was struck, the required material from the crusher gap in the bottom of the grate discharge, fail to meet requirements of the materials were kept in crushing chamber, was hit each other repeatedly hammer and materials, up to a small degree before discharged outside the machine.

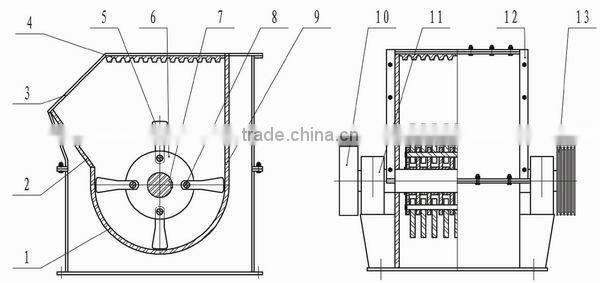

Transmission Structure
1. Curved sieve 2. Baffle 3. Inlet 4. Back Plate 5. Hammer 6.Disc 7.Spindle 8.Pin roll 9. Straight sieve 10. Fly Wheel 11.Bearing Block 12. Chassis 13. Pulley

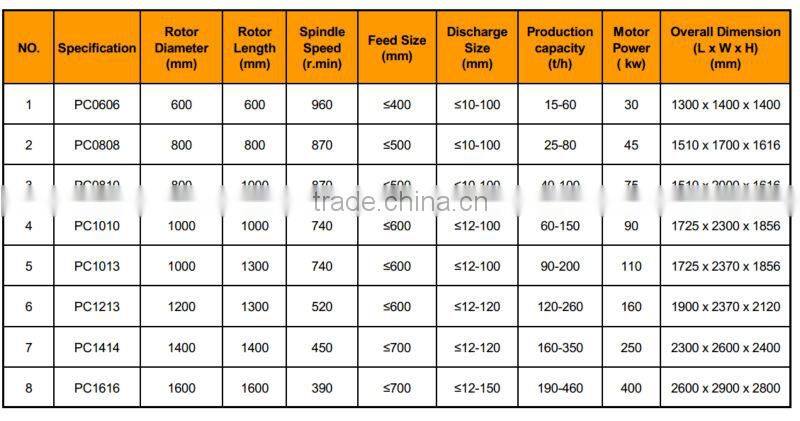

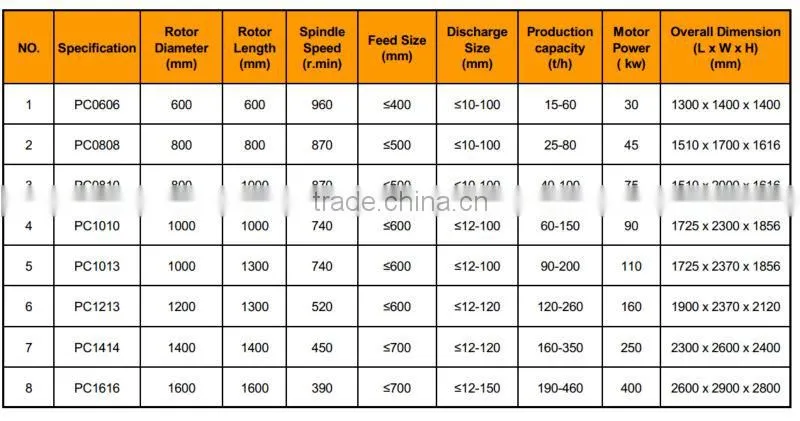

Technical parameter
Address:Dongcheng Development Zone,Linqu Weifang,Shandong,PR China
Telephone:0086-536-2082685.
