Specifications
1.feeding size less than 750mm;2.discharging size 95-165mm;
duction capacity 140-260t/h;
4.certificate ISO9001:2008.

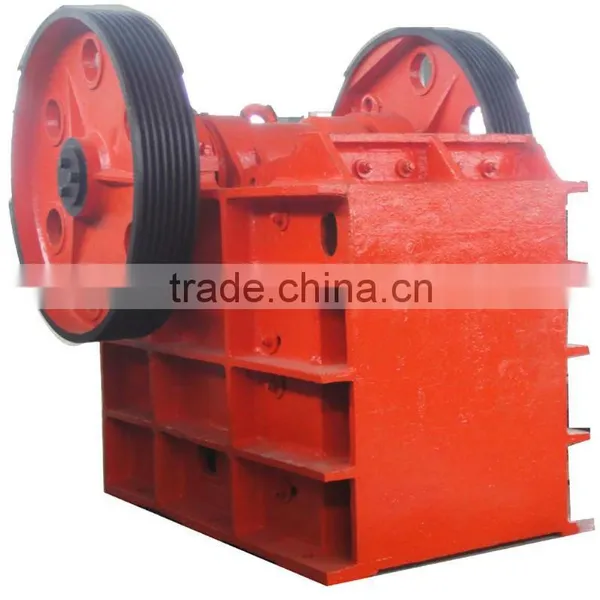

Jaw crusher
Summarize
Jaw crusher is suitable for crushing hard material (compression strength less than 250Mpa). For example: coarse and fine crushing operation of iron ore, slag, phosphorus ore, copper ore, silicon ore, limestone, quartz stone, ceramic and solid materials with similar hardness; breaking bulk materials of concentrator, stones factory, cement plant. Features: low use and maintenance costs,high ratio of reduction, high reliability, small power consumption. Be widely used in mining, building stones factory, building materials, metallurgy, ceramics and other industries.
Working principle
The motor drives the belt wheel, and makes the movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw down, the angle between the fixed jaw and movable jaw gets smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.Follow the motor keep working and the movable jaw proceed the cycle move,the materials was crushed to the required size and sent out from the outlet.

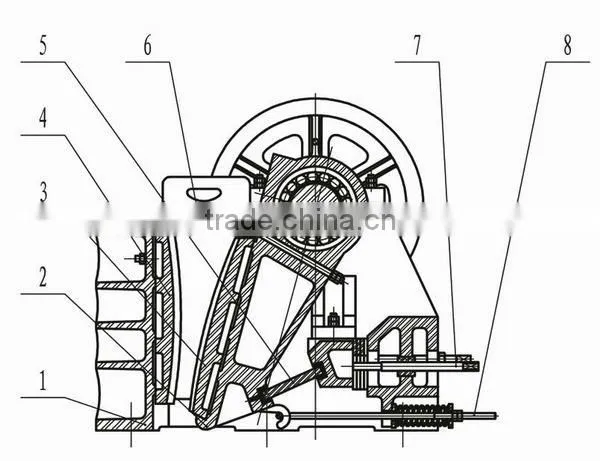

Transmission Structure
1. Frame 2. Dynamic Jaw 3.Movable Jaw Plate 4. Fixed Jaw plate 5. Toggle Plate 6.Side Protection Board 7. Ejector Rob
8. Draw Bar
Technical parameter
Address:Dongcheng Development Zone,Linqu Weifang,Shandong,PR China
Telephone:0086-536-2082685.
