Liquid and Sauce Filling Machine

FOB Price

US$ 20,000 - 80,000 / Unit

1 Unit(Min. Order)

Port shanghai china
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	MODERN PACK
Model Number	NJG

Product Description

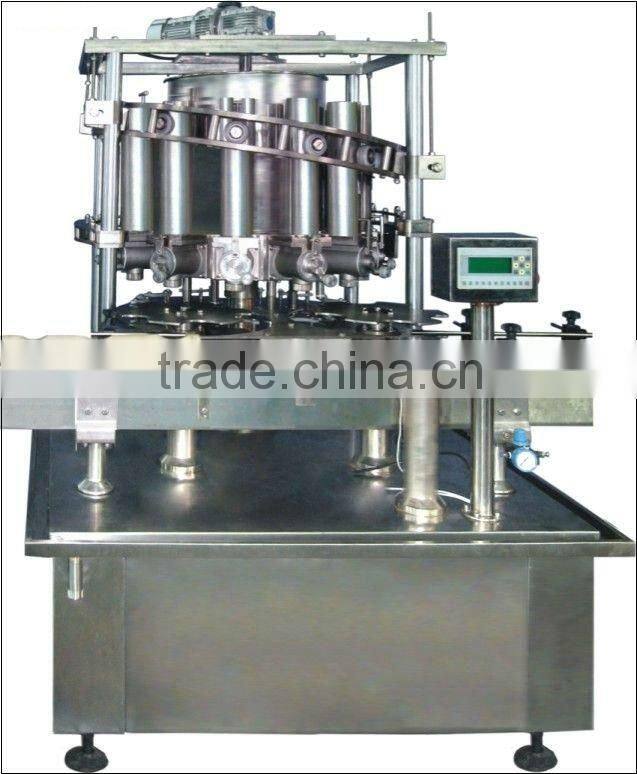

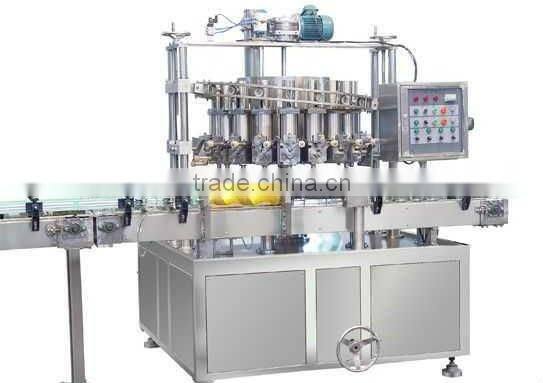

This sauce filling machine is for the filling of paste or paste product, such as ketchup, jam, fruit and vegetable paste, chili paste, honey, condensed milk, corn soup, peanut paste, sauce It also can be used for pulp, birds nest, aloe, rice wine and so on.

This machine works stable, fills precisely, and suits for cold and hot filling. The piston and piston barrel after the treatment of top technology, cooperate accurately, durable and wearable.

The piston filling and seaming machine is designed and produced on the basis of thirty years experience in food packing field and the most advanced technology of the sauce filling machine. The main electric elements adopt “Mitsubishi” PLC, frequency converter and proximity switch. Set up production speed through touch screen, the machine alarm automatically of common malfunction and show corresponding malfunction position, and then PLC judge to continue work or stop according to the serious degree.

This series of machines are suitable for filling of all different sauces (like ketchup,chili paste,jam and so on),the high concentration beverage with flesh or granular,thick material and liquid. The machine set is in great shape, most parts of the unit are made of superior quality stainless steel and up to the food hygiene standard. The piston and piston cylinder are durable and cooperated in harmony after special treatment of cutting-edge technologies. The machine is equipped with the agitation system and automation system, like three-point liquid level control system,frequency conversion adjusting speed system,protection system of cans when they move in and out of the machine and speed adjustment system.

Specifications:

The number of capping head	6
The number of filling head	24
Production capacity	80~400 bottles/min
Bottle Height	150~360mm
Bottle Diameter	φ40~100mm
Filling volume	70-850g
Power	7.5kw
Weight	5800kgs
Dimension	3220×2100×1900mm
