Home > Products > Sauce filling line > Liquid / Paste Packing Machine

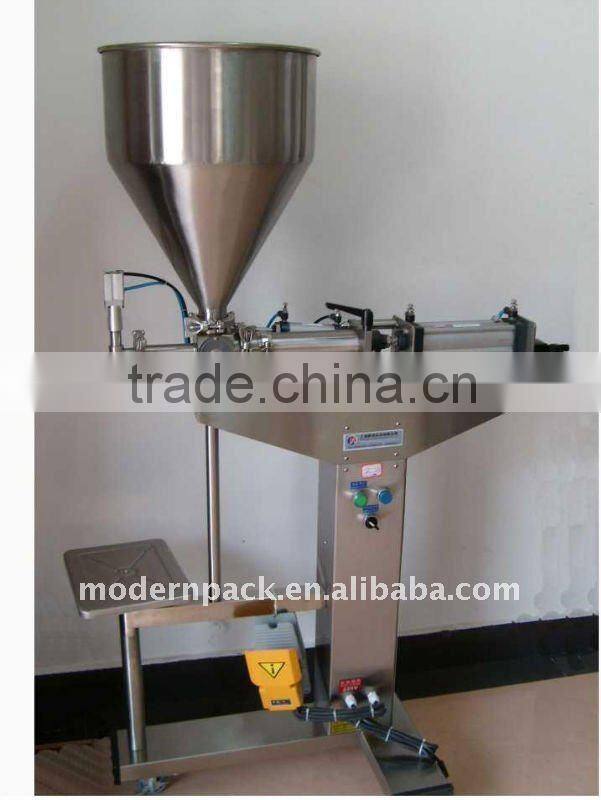

Liquid / Paste Packing Machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Chemical | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Power | 50w | Place of Origin | Jiangsu, China | |
| Brand Name | MODERN PACK | Model Number | LQ |
Product Description
MP series Automatic double speed glutinous liquid filler , the national newest patent product has world leading level new one generation to fill now installs the equipment, uses the most advanced world high tech, PLC control, the automaticity is high, the health is reliable.
International two speed technology. high, the low speed adjusts willfully. The vessel straight line for delivers. Adapts each kind of circle, the side, the flat different shape plastic, the glass, the metal container.
it is widely used on the industry of food, medicine, cosmetic, and chemical, such as toothpaste, ointment, grease, syrup, jam, shoeshine, oil paint, printing ink, drink, paste, snowflake, cream, magma, butter, lube, alcohol, pesticide, PS edition purification.
The quantitative liquid can be adjusted optionally at stipulated range with small measurement error. Using of electric or pneumatic operations applicable to any kind of working environment. it is reliable and convenient and can match to production line or independent operations.
liquid/paste packaging machine
1. good quality
2. EX factory price
3. good after sales service
liquid/paste packaging machine of this series can be applied to the filling of soy sauce , sauce ,grease and fat and the like : it also caters to industries like food ,cosmetics , medicine , chemicals and drinks , the liquid packaging machine is also quick , precise , economical and practical
fill packing machine
suitable for sauce,jam,lotion filling
can fill all containers, 15-30bpm
flexible filling range 5-5000ml
SFGG Pneumatic Semi-automatic Paste Filler Series
Feature:
1. suitable for filling viscosity liquid like sauce, jam, shampoo, lotion, perfume, etc with soft
particulate
2. can fill all kind of containers such as bottles, cans, cups, etc
3. Full pneumatic control, easy to operate, remove and clean; ideal equipment for filling
inflammable, explosive materials
4. liquid contacted material use 316L stainless steel, other metals are made of 304 stainless
steel with surface finishing and special treatment which guarantee you very good quality
5. equipped with Airtac cylinder, high filling precision
Technical Data:
MODEL | SFGG-06 | SFGG-12 | SFGG-25 | SFGG-50 |
Filling range | 5-60ml | 10-120ml | 25-250ml | 50-500ml |
Air pressure | 4-6kg/cm2 | 4-6kg/cm2 | 4-6kg/cm2 | 5-8kg/m2 |
Filling speed | 0-30bpm | 0-30bpm | 0-30bpm | 0-30bpm |
Filling precision | 1% | 1% | 1% | 1% |
N.W. / G.W. | 16kg/19kg | 17kg/20kg | 23kg/25kg | 26kg/28kg |
Machine size | 87*25*57cm | 95*25*57cm | 100*25*57cm | 120*30*67cm |
Packing size | 140*65*75cm | 148*65*75cm | 150*72*85cm | 170*75*85cm |
|
|
|
|
|
MODEL | SFGG-100 | SFGG-250 | SFGG-500 |
|
Filling range | 100-1000ml | 250-2500ml | 500-5000ml |
|
Air pressure | 5-8kg/m2 | 5-8kg/m2 | 5-8kg/m2 |
|
Filling speed | 0-30bpm | 0-25bpm | 0-15bpm |
|
Filling precision | 1% | 1% | 1% |
|
N.W. / G.W. | 39kg/43kg |
|
|
|
Machine size | 125*35*67cm | 145*39*67cm |
|
|
Packing size | 188*89*96cm |
|
|
|
|
|
|
|
|
