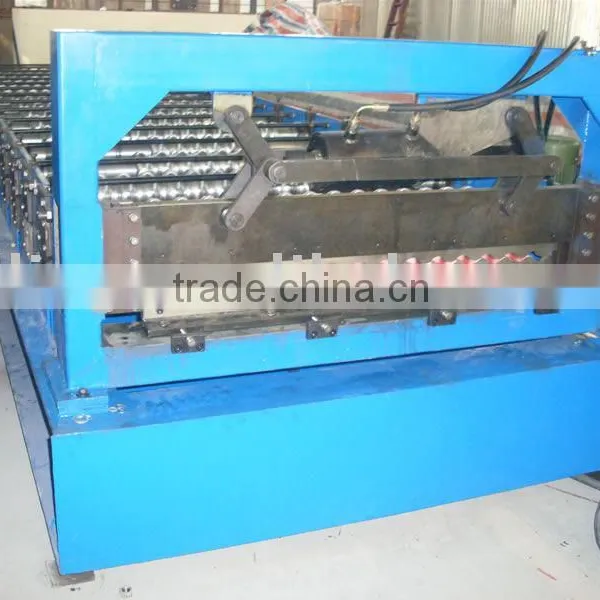

Roll Former
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WILLING INT'L
Model Number:
Roll former
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
WILLING INT'L
Model Number
Roll former
Specifications
We can make and design will kinds of roll former according to customer's request,and has passed CE,ISO certificate.Roll former ntroduction
Roll former consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, post-cutting equipment, hydraulic station, controlling system, supporter table.
Roll former Technical Parameters
Material Spec: Colored steel sheet ; galvanized steel sheet
Thickness of Coil Sheet:0.3 --0.7 mm
Main Motor Power:7.5kw
Forming Speed:10--12m/min
Hydraulic Station Power:3kw
Quantity of Stands:About 18 groups
Hydraulic Pressure:10~12Mpa
Controlling System:PLC
Index Error of Length:10m±2mm
Total Weight:About 1000kg
Voltage:380V 3 phase 60Hz or at buyers requirement
Material of Main Equipment
Roller Material:high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active Shaft Material:high grade No.45 carbon wrought steel at Φ 75mm.
Cutter Blade:Cr12 mould steel with quenched treatment.
Electric Elements:Control system with PLC model S7-200, Siemins.transducer with ABB control panel with TP170, Siemens. It can input 10sets of spec at one time.
Oil Tank Model of Hydraulic System:CB-E310
