Cold Roll Forming Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Brand Name:
Cold Roll Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tile Machine,forming Machine,roll Forming MachineNegotiableMOQ: 1 -
Tile Machine,Roof Tile Machine,Roof Forming MachineNegotiableMOQ: 1
-
Tile Machine,Roof Tile Machine,Roof Forming MachineNegotiableMOQ: 1
-
Tile MachineNegotiableMOQ: 1
-
Tile Machine,Roof Tile Machine,Roof Forming MachineNegotiableMOQ: 1
Type
Tile Forming Machine
Tile Type
Colored Steel
Brand Name
Cold Roll Forming Machine
Model Number
Cold Roll Forming Machine
Specifications

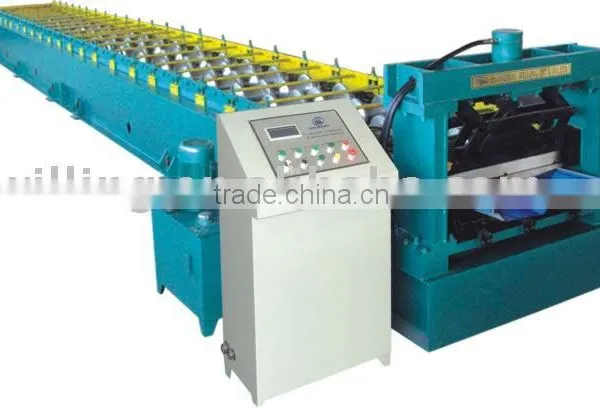

We are specialied in making cold roll forming machine, we can design all kinds of pattern.Model WLFM18-76-988 Cold Roll Forming Machine consists of uncoiler and its base, coil sheetguiding equipment, film covered device, roll forming system, post-cutting equipment,
hydraulic station, controlling system, supporter table.
Cold Roll Forming Machine Technical parameters:
1) Material spec: colored steel sheet; galvanized steel sheet
2) Thickness of coil sheet: 0.3 - 0.7 mm
3) Main motor power: 7.5kW
4) Forming speed: 10 - 12m/min
5) Hydraulic station power: 3kW
6) Quantity of stands: about 18 groups
7) Hydraulic pressure: 10 - 12MPa
8) Controlling system: PLC
9) Index error of length: 10m±2mm
10) Total weight: about 1,000kg
11) Voltage: 380V 3 phase 60Hz or at buyer's requirement
Cold Roll Forming Machine Material of main equipment
1) Roller material: high grade no. 45 forged steel, plated hard chrome on the surface
of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) Electric elements: control system with PLC model S7-200, Siemens transducer with
ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time
5) Oil tank model of hydraulic system: CB-E310
