Help CenterRoof Roll Former Machine
Related Products
Specifications
We can make and design will kinds of roll former machine according to customer's request,and has passed CE,ISO certificate.Roll Former Machine Introduction

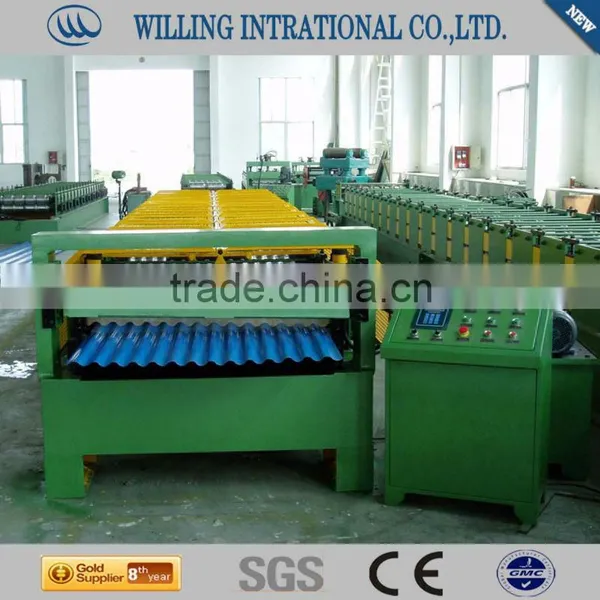

Roll former machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, post-cutting equipment, hydraulic station, controlling system, supporter table.
Roll Former Machine Technical Parameters
Model |
HV-470B |
HV-373A |
|
Material |
Typle |
Color steel sheet |
|
Thickness(mm) |
0.4-0.7 |
||
Yield stress(Mpa) |
230-300 |
||
Max. Forming speed(m/min) |
8-12 |
||
Roller material |
45# steel with chrome |
||
Roller driven type |
Chain transmission |
||
Controller |
PLC |
||
Operation |
Touch screen and button |
||
Hydraulic system pressure(Mpa) |
12 |
||
Hydraulic station motor power(KW) |
5.5 |
||
Main motor power(KW) |
4 |
||
Total power(KW) |
9.5 |
||
Total weight(Kg) |
About 10000 |
||
Roll Former Machine Material of Main Equipment
Roller Material:high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active Shaft Material:high grade No.45 carbon wrought steel at Φ 75mm.
Cutter Blade:Cr12 mould steel with quenched treatment.
Electric Elements:Control system with PLC model S7-200, Siemins.transducer with ABB control panel with TP170, Siemens. It can input 10sets of spec at one time.
Oil Tank Model of Hydraulic System:CB-E310
