Help CenterMetal Corrugated Machine
Related Products
Specifications

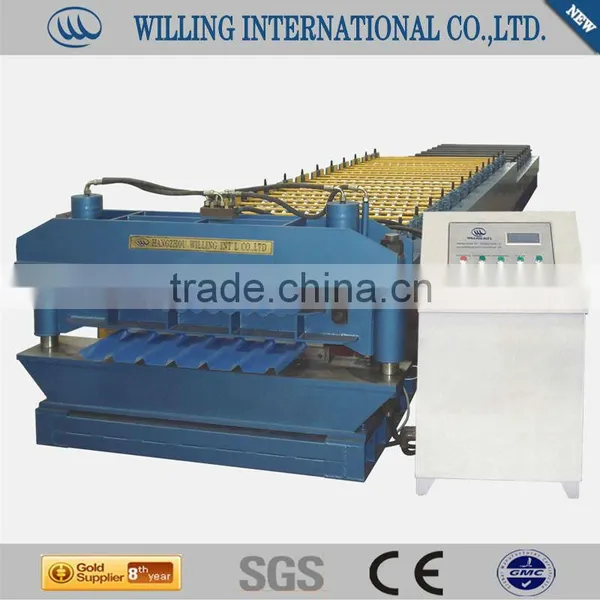

Corrugated Machine :feeding,guiding,roll forming,cutting,hydraulic station,control station and run out table.Model WLFM18-76-988 Corrugated Machine consists of uncoiler and its base, coil sheet
guiding equipment, film covered device, roll forming system, post-cutting equipment,
hydraulic station, controlling system, supporter table.
Corrugated Machine Technical Parameters:
1) Material spec: |
colored steel sheet; galvanized steel sheet |
2) Thickness of coil sheet: |
0.3 - 0.7 mm |
3) Main motor power: |
7.5kW |
4) Forming speed: |
10 - 12m/min |
5) Hydraulic station power: |
3kW |
6) Quantity of stands: |
about 18 groups |
7) Hydraulic pressure: |
10 - 12MPa |
8) Controlling system: |
PLC |
9) Index error of length: |
10m±2mm |
10) Total weight: |
about 1,000kg |
11) Voltage: |
380V 3 phase 60Hz or at buyer's requirement |
Corrugated Machine Material of main equipment:
1) Roller material: |
high grade no. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm |
2) Active shaft material: |
high grade No.45 carbon wrought steel at diameter 75mm |
3) Cutter blade: |
Cr12 mould steel with quenched treatment |
4) Electric elements: |
control system with PLC model S7-200, Siemens transducer with ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time |
5) Oil tank |
model of hydraulic system: CB-E310 |
