Hydraulic Uncoiler

High quality

* hydraulic decoiler 10T, hydraulic steel coil decoiler 10T

Brief Introduction of Product

Hangzhou Willing Int'l Co., Ltd is a manufacturer of steel coil decoiler, our hydraulic series decoiler is used for roll forming line, cut to length line, slitting line and embossing mill. The decoiling machine is mainly used to decoil various of metal coils, and worked together with other machines to combine a production line. Hydraulic decoiling machine can be equipped with a coil lifting car. The decoiler can automatcially release the coil sheet and feed the coil sheet to the different kinds of machine.

Technical Parameters for Hydraulic Uncoiling Unit

For lifting dolly car

1) Capacity: the same with the type of decoiler, max. 10 tons.

2) Speed: 6m/ minute.

3) Lifting Height: max. 550mm.

4) Moving Distance: max. 3000mm.

For decoiler

1) Capacity: max. 10 tons.

2) Inner dia: 508mm or 610mm (gasket is required).

3) Width: max. 1500mm.

4) Center Adjust: max. 250mm.

5) Equipped with optical sensor or bar sensor, laid before decoiler,

if sheet is close to sensor, it will stop releasing coil sheet;

if sheet leaves sensor, the decoiler will continue to release coil sheet.

For hydraulic drive

1) Max. hydraulic pressure: 16 Mpa.

2) Motor Power: 10.5 kw.

3) Air Pressure: 0.9 Mpa.

Work flow

Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler ---

--- lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms of decoiler---

--- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of decoiler rotate (coil sheet comes out).

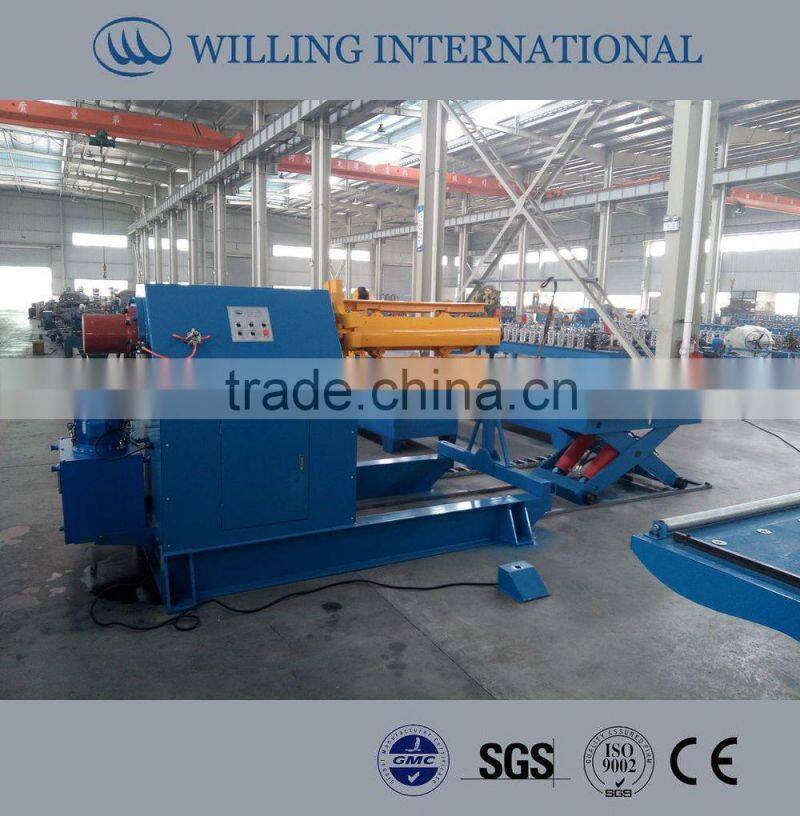

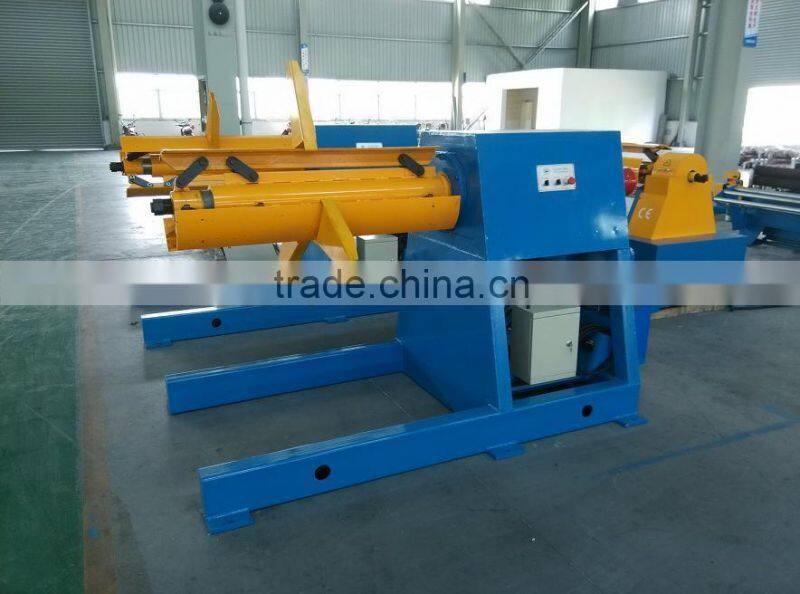

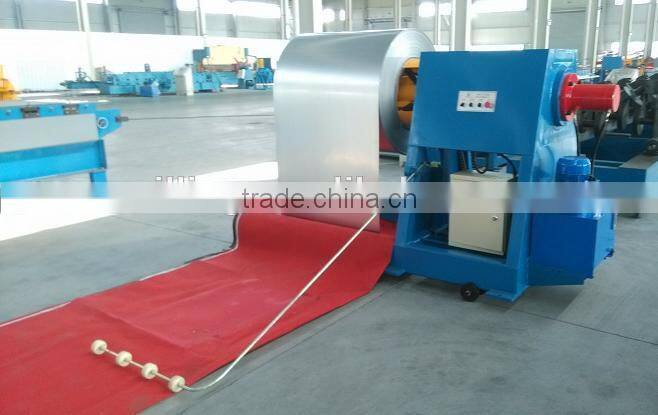

Appearance of Hydraulic Decoiler

Optical Sensor

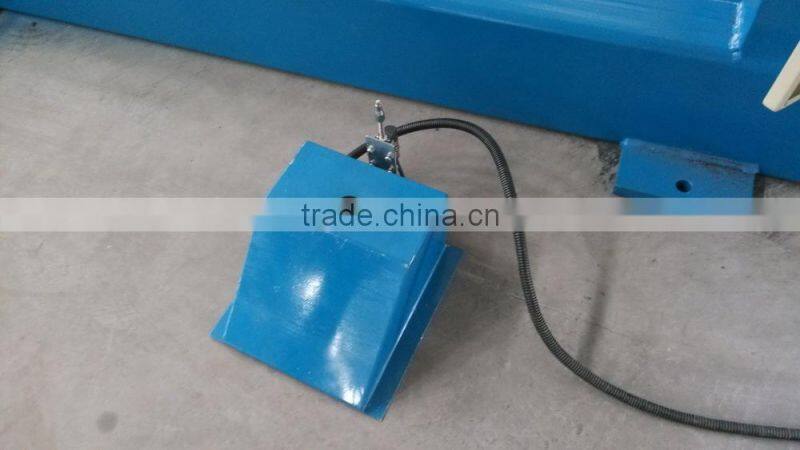

Bar Sensor

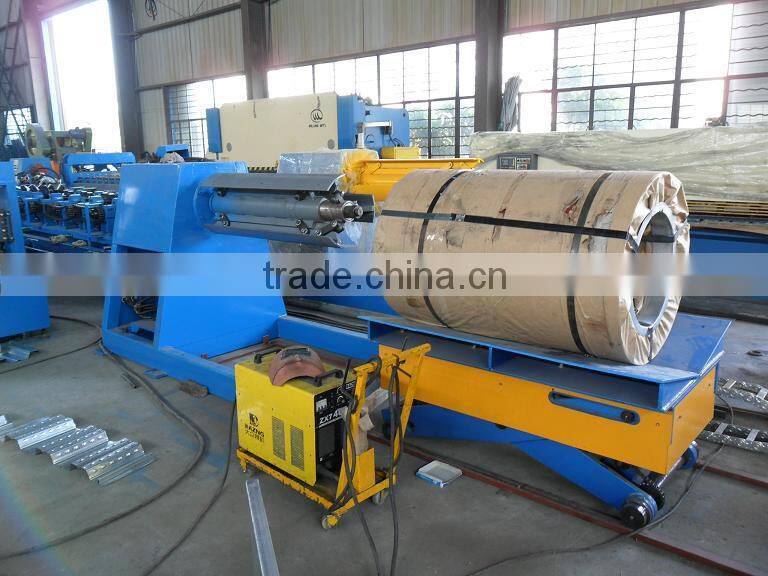

Coil Support and with Coil Car

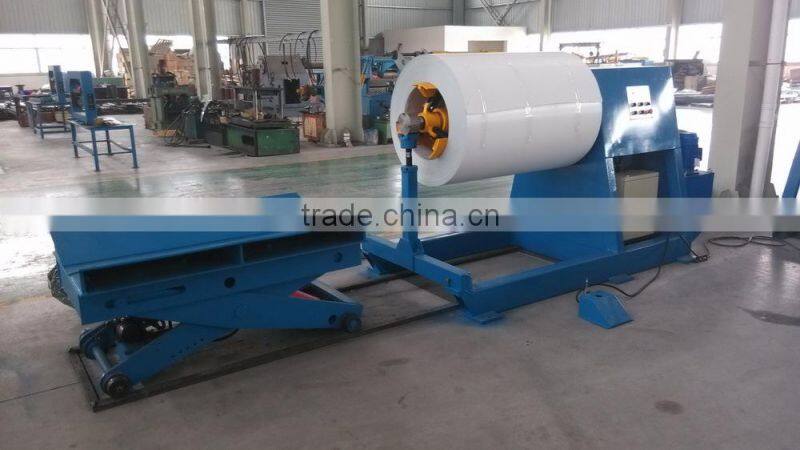

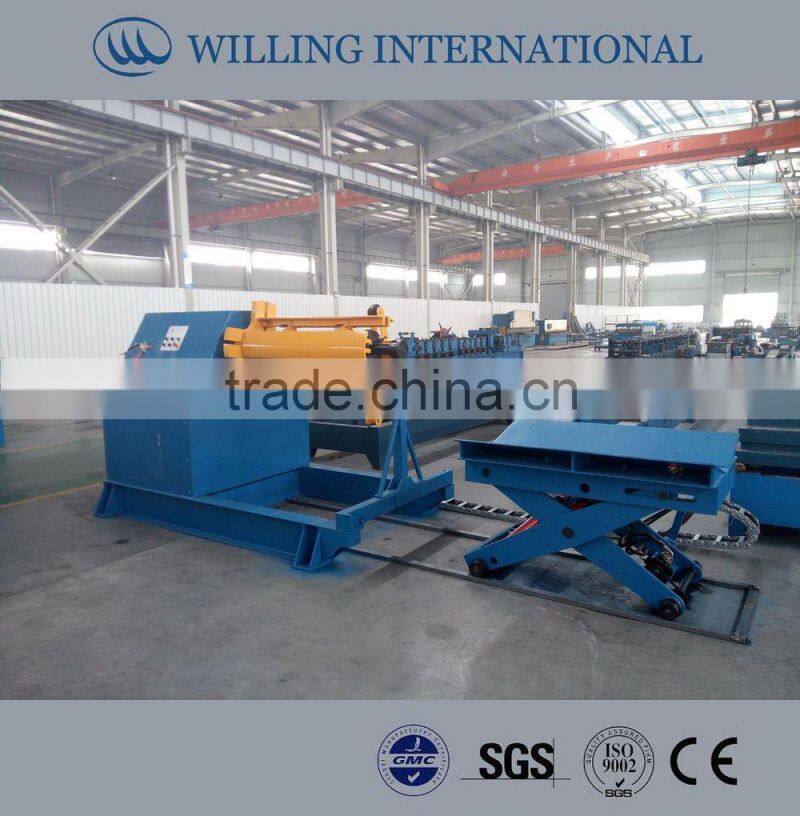

Coil Lifting Dolly Car

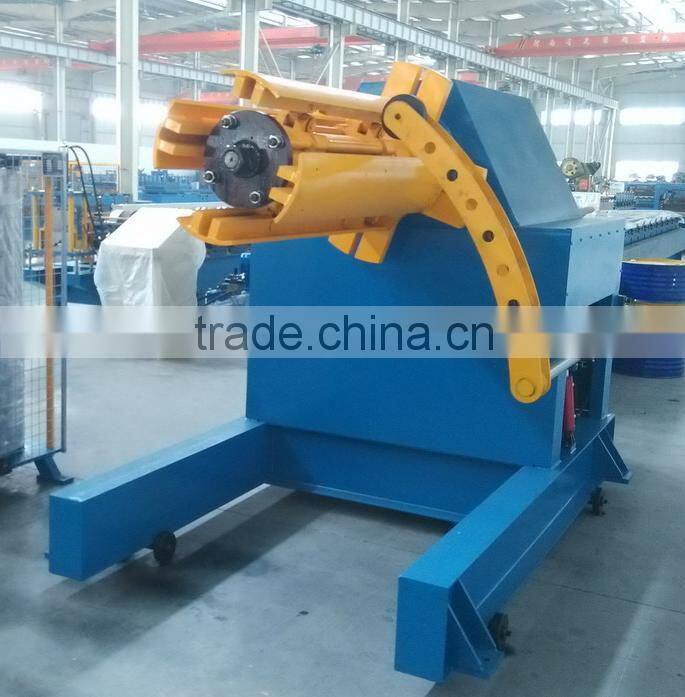

Pressing Arm

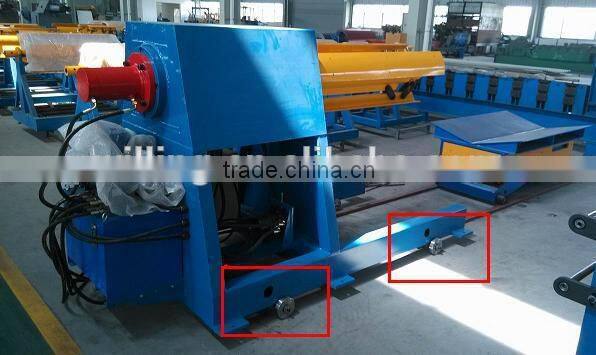

Bottom Wheel (see red frame), the decoiler is moveable

Delivery time is one month, but normally we have stock in trade, can be delivered right away.

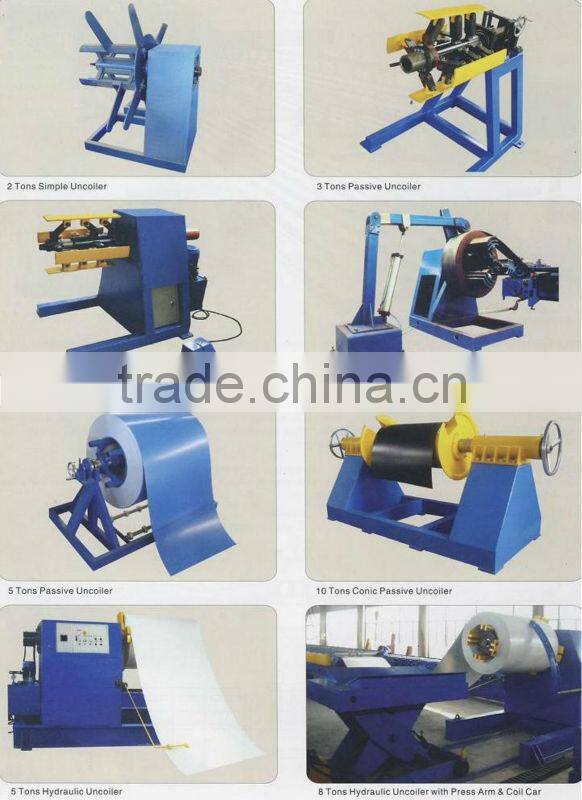

Different Types of Hydraulic Decoiler

Certificate

Our services:

1.  Professional engineers are available to be sent to the customers' factory to install and debug the machines and train the staff how to operate and maintain the machines.

2.  We can design different kinds of profiles and fittings for machine,  as per customer's requirements. You can send me the profile drawing and we will design the machine for you.

3.  Every process will be checked by responsible QC which insures every product's quality.

4.  Professional packing teams which keep every packing safely.
(1) Rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well.
(2)The oil hose and electric wires ae marked, and easy to be connected when used;
(3)In container loading, sea-worthy, well fixed by wire rope, wooden block and nails.

5.  One-year warranty will be assured for all our machines. Moreover, We promise to provide permanent technical support and after-sales service with our customers.

6.  We warmly welcome you to visit our factory for more detailed information, inspecting our machines and we will pick you up at HangZhou Railway station.

FAQ:

1.  Q: Are you manufacture or trrading company?
     A:We are manufacturer & exporter who signed in 2004, and our boss has many years experiences in machinery.

2.  Q: Why should I choose you?
     A:We are professional manufacture company that could provide the best products for the best price, high quality of services, and credible quality assurance.

3.  Q: How does your factory conduct Quality Control and Inspection?
     A: We are quite proud of our quality control procedure. It's comply with ISO quality system to control produce from the raw materials received to finishing warehousing. Any imperfect articles are rejected by our quality control.

4.  Q: How many kinds of products do you produce?
     A: We have produced different kinds of Steel Roof Tile Roll Forming Machine, Corrugated Steel Sheet Roll Forming Machine, C/Z Purlin Roll Forming Machine, Steel Deck Roll Forming Machine,  Slitting Line, Cut to Length Line, Press Brake, Shearing Machine, PPGI ,Gi ,PPGL ,Gl, Aluminum Coil. And we also can provide its finished products.

5.   Q: Where is your factory located? How can I visit there?
      A: Our factory is located in TongXiang, ZheJiang province. We could pick you up from HangZhou East Railway Station or TongXiang   Railway Station when you come.

   Please feel free to contact me for more up-date information and any queries you have. Best quality machines and services will be provided for you.
