Specifications

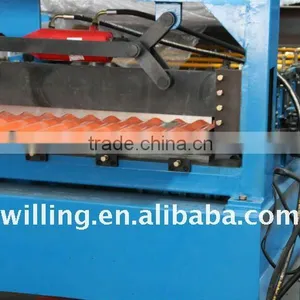

We are specialied in making tile machine, we can design all kinds of pattern.Introduction
Tile machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table.
Technical Parameters
Material Spec Colored and galvanized steel sheet at yield stress 33KSI;
Thickness of Coil Sheet 0.5 --0.6 mm
Coil Width 1000mm
Working Speed 2.0 3.0 m/min. (step distance at 380mm,)
Power Requirement Main motor power: 7.5kw
Hydraulic Station Power 5.5Kw
Passive Uncoiler Max. Capacity: 5000kgs
Quantity of Stands 15groups
Controlling System PLC
Type of Cutting Roll-formed and length-set cutting
Machine Dimension About 18500×1500×1400mm
Total Weight About 9500kg
Voltage: 380V 3 phase 60Hz or at buyers requirement
Working Flow
Decoiling the Sheet→Sheet Guiding→Film Covering→Roll Forming→Measure Lengh → Cutting the Panel→Panels to the Supporter
