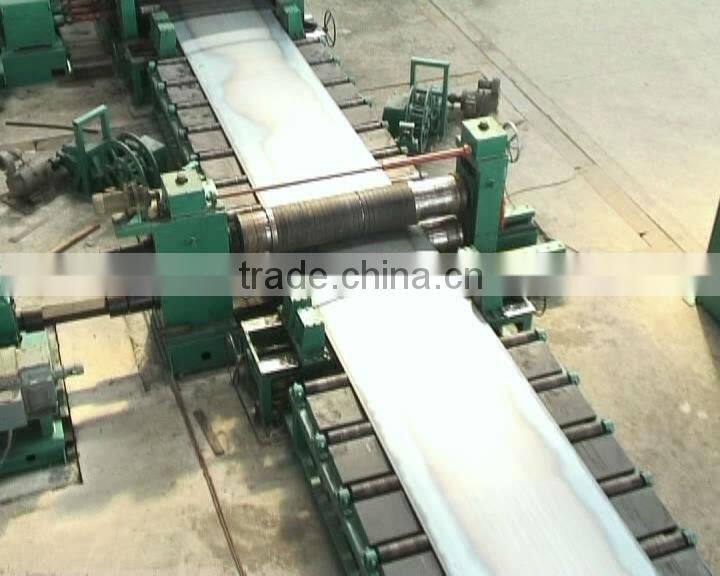

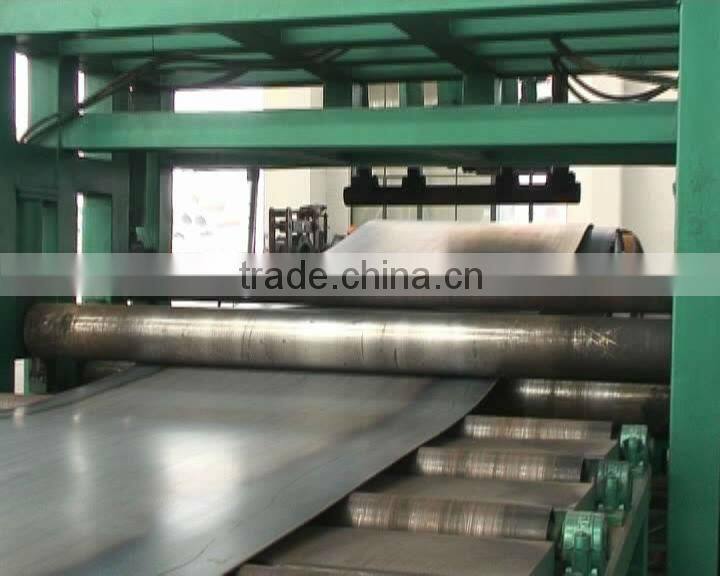

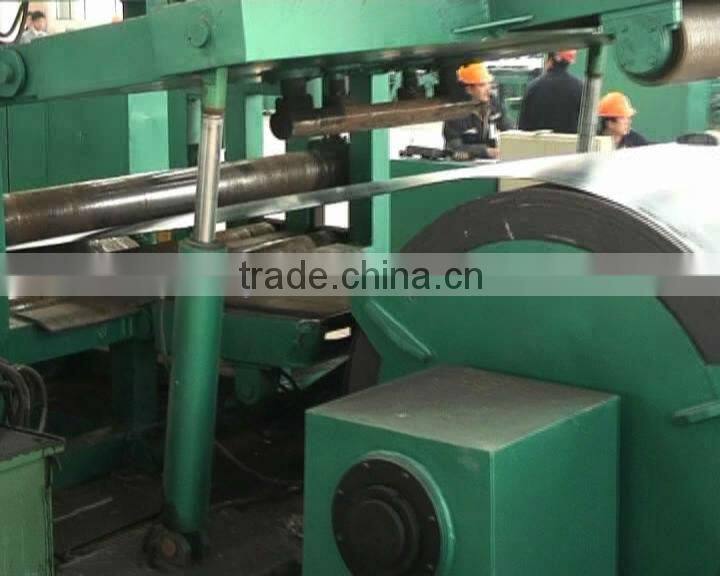

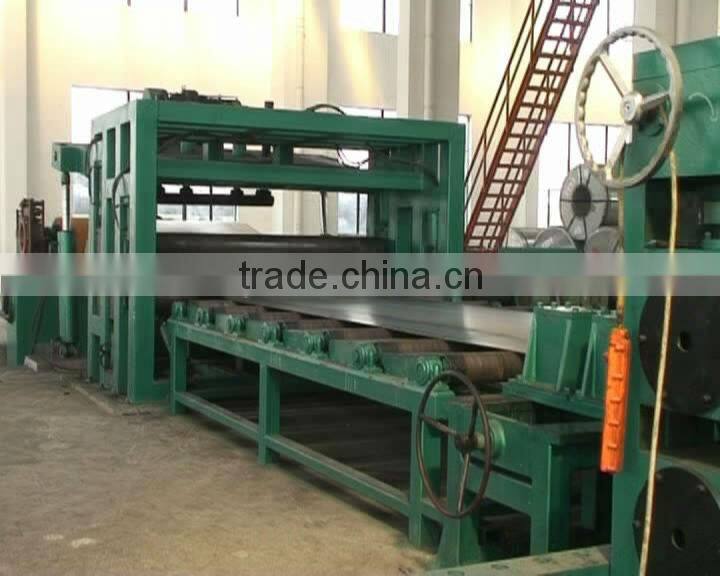

High Speed Cut to Length Machine Line

FOB Price

US$ 135,000 - 450,000 / Set

1 Set(Min. Order)

Port Shanghai or Ningbo China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	Willing	Model Number	(0.3 ~12)*2500mm
Voltage	380V 3phase 50HZ or as customers' requirements	Rated Power	80.5kw
Certification	CE & ISO 9001	Warranty	1 Year

Product Description

Specifications

1.High quality
2.CE certificate
3.Best price
4.Comprehensive sevice

Cut to length line

We can supply series of Cut to Length Line for different thickness and width. We offer strong machine with much competitive price.

Welcome to enquire and let's talk further.

1. Technical parameters

1	Material specification	applied for carbon steel plate; GI or PPGI coils; applied for the cold plate with strength ≤ 350Mpa
2	Thickness of coiled plate	0.3~12mm
3	Width of coiled plate	1300-2500mm
4	Coil inner diameter	508mm or 610mm in reel
5	Coil out diameter	≤ 2200mm
6	Weight of coiled plate	15T
7	Precision of leveling	no macroscopic pincher and small marginal wave
8	Length tolerance	±1.0mm/2000mm
9	Diagonal tolerance	±1.5mm/2000mm
10	Material of leveling roller	40Cr
11	Hardness of leveling roller surface	HRC48-52
12	Leveling speeed	0~25m/min (adjustable)
13	Calculated by 2m plate	5~6 pcs/min
14	Voltage	380V 3phase 60HZ or according to customer's requirements
15	Machine standard	the main components & damageable component in electronic equipments in accordance with GB stipulation ( the standard of People's Republic of China)

2. Components and Functions:

1	Hydraulic conical uncoiler	loading capacity of 15T; Coil inner diameter: 508mm or 610mm; Coil width: 1600mm~2000mm
2	This is composed of bottom-stand ( guiding track pattern), frame, detent device, discharging axe, conical discharging plate, hydraulic pushing device, clutch, and etc;
3	Hydraulic coil car	loading capacity of 15T. This wagon is used for the movements and lifting of rolling coil plates. The operation and lifting of this dolly is conducted by coil cylinder
4	Hydraulic guiding-head, shovel-head device	this is composed of frame-stand, hydraulic arm, pressing & guiding roller, hydraulic leveling-head, shovel-head, and etc. Accompanied with seam needle decelerating motor: 7.5kw
5	Hydraulic feeding machine	this is composed of frame, torii stand, squareness slide supporting stand, feeding rollers, hydraulic lifting device, clutch, accompany of decelerator:400, motor: 11kw, and etc
6	Rolling orbit table	4m, this is composed of bottom-stand, rolling orbit, bearing-stand, and etc
7	Guiding device	this is composed of worktable frame, guiding pole, adjustment device, moveable plane plate and clutch with multi-roller, and etc
8	Leveler power part	this is composed of power-stand, decelerator 650, direct-current speed adjusttable motor: 55kw( Eurotherm), direct-current cabinet, distributing case, unversal joint, and etc
9	Host machine	this is composed of leveling-stand, frame, slide, axe roller 15 pcs(roller diameter: 140mm) electronic lifting & pressing device, accompany of two motors: 3kw
10	Coding device	this is composed of coding transition table, coding & pinch device, coder, and etc.
11	Cut to length machine	it is electric control, 6.3×2000mm size control or according to buyer's request
12	Worktable, swaying pneumatic pinch machine	this is composed of worktable, frame, rolling orbit, bearing-stand, etc. accompany of seam needle decelerating motor:4kw
13	Unloading car	vertically and horizontally pneumatic pushing device, and etc
14	Full set of Electric control system	this is composed of host electric operating desk, front operating table, and etc
15	Hydraulic system	this is composed of hydraulic station, pipe, tie-in, etc. Hydraulic oil, lubricate oil, pneumatic resource shall provided by the user.
