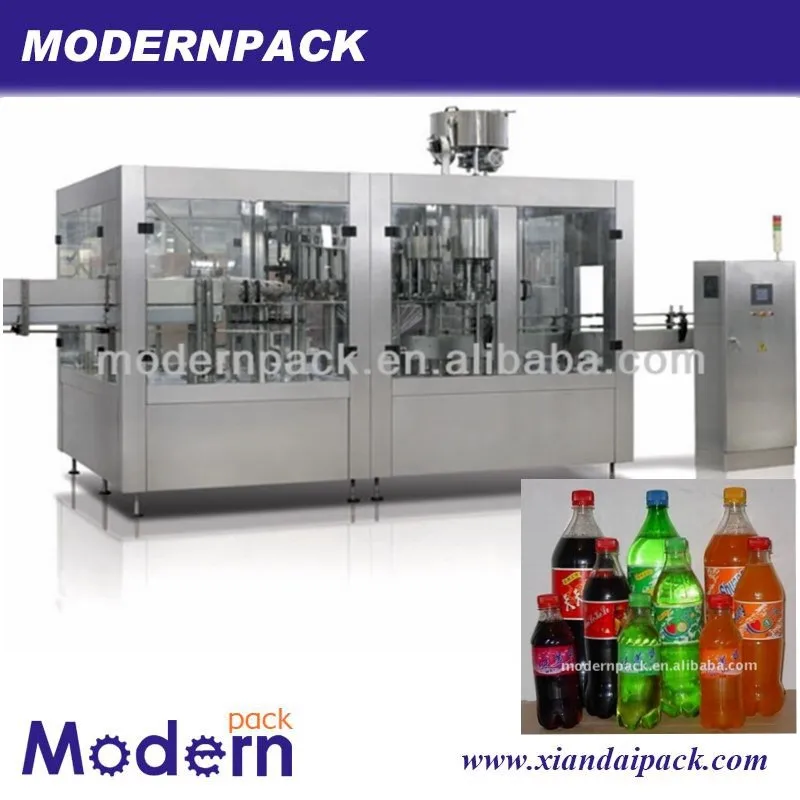

Supply 3 in 1 Bottle Filling Machine/Hot Drinking Filling

This machine is suitable for gas beverage packaging, has the following features: filling cylinder, such as the filling valve of direct contact with the material parts adopt high quality stainless steel or non-toxic materials manufacturing, comply with the food sanitation standards;Sealers adopt heat resistant rubber, satisfying the requirements of the user process of high temperature disinfection;Adopt PLC programmable controller, realized from the bottle into the fully automatic machine and finished packing, using the frequency changer control variable frequency speed regulation control, easy to adjust the equipment users, meet the requirements of the different process of production capacity.Adopts isobaric filling principle and popular spring valve, to ensure that the beverage quality, adopting the advanced magnetic clutch adjustment screw torque device, to ensure the quality of the block.

1: the machine adopts pneumatic conveying and the word was with bottle feeding thumbwheel direct connection technology, cancelled the bottle feeding screw and conveyor chain, change the bottle type easy and simple.

2: bottle transfer all adopt the card bottle technology, transform bottle type does not need to adjust equipment, only need to replace the arc guide plate, associated with the bottle diameter thumbwheel nylon pieces, etc.

3: the special design of bottle machine, bottle clamp sturdy, high efficiency and flushing effect is good

4: high speed flow gravity filling valve, filling speed, liquid level accurately without fluid loss.

5: the bottle thumbwheel bottle cork base plate adopts spiral method, highly bottle type do not need to adjust the bottle conveying chain.
