Bottle Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Blwo Moulding Machine China SupplierNegotiableMOQ: 1 Set -
Blow Moulding Machine Water Tank Making MachineNegotiableMOQ: 1 Set
-
Large Drum and Water Tank Making MachineNegotiableMOQ: 1 Set
-
Full-automatic Blow Moulding Machine Price Blowing Machine for HDPE TankNegotiableMOQ: 1 Set
-
1200mm Hollow Plastic Pallets Making MachineUS$ 250,000 - 250,000MOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PE
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Shandong, China
Brand Name
SEHENDA
Model Number
SKJ
Voltage
150V
Power(W)
380W
Dimension(L*W*H)
10*5*6
Weight
30 TON
Certification
CE,ISO90001
Warranty
I YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Fully automatic water tank blow moulding machine machine2.Superior price and quality
3.Three months delivery
Weifang Xinhengda Machine Co., Ltd. is a professional manufacturer of plastic machines. Our leading products include plastic machines, such as plastic fully automatic hollow units, drawing units, pipe drawing units, film units, packaging belt units, crushers and extruders.
Main technical parameters for this blow molding machine
| Technical specification | |||
| SKJ50L single station | SKJ50L double station | ||
| Max. product volume | L | 50 | 50 |
| Screw diameter | MM | 100 | 110 |
| Screw L/D ratio | L/D | 25:1 OR 30:1 | 25:1 OR 30:1 |
| Screw drive power | KW | 30 OR 37 | 37 OR 45 |
| Screw heating capacity | KW | 15 | 22 |
| Screw heating zone | ZONE | 5 | 6 |
| Output | KG/H | 160 | 200 |
| Oil pump drive power | KW | 18.5 | 18.5 |
| Clamping force | KN | 200 | 280 |
| Mould open space | MM | 1000 | 1100 |
| Mould thickness | MM | 300-450 | 320-500 |
| capacity | L | 6.3 | 9.3 |
| Die head capacity | KW | 12 | 14 |
| No. of heating zone | ZONE | 4 | |
| Die head material | 38 CRMOALA(accumulator,lining,piston,die) | ||
| Control action | MITSUBISHI PLC | ||
| Blowing pressure | MPA | 0.6 | |
| Cooling water pressure | MPA | 0.2 | |
| size of machine | MM | 5200*2900*3900 | |
| Weight of machine | MT | 8 | 12 |

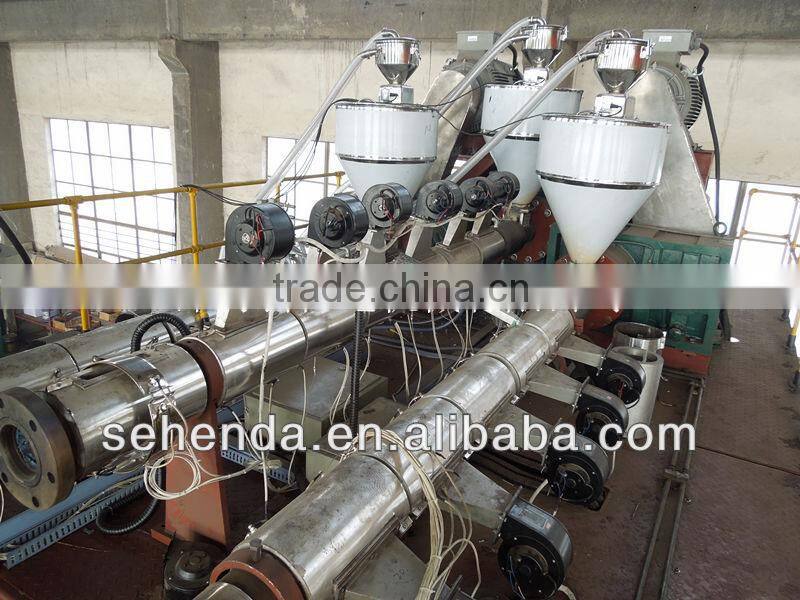

Some important part of the machine

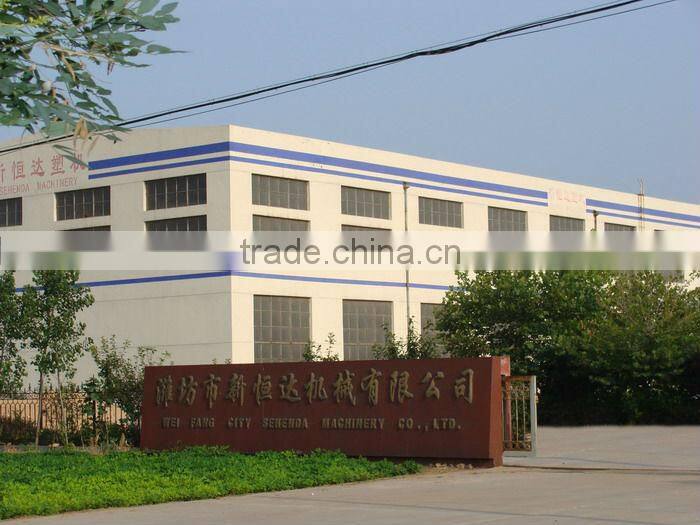

Office and factory
Quantity Control and Service:
1. Customer test machine and all molds in seller’s factory before shipment
2. Installing machine and training workers at customer’s site free of charge.
3. 1 year warranty after installation for machine and molds..
