Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > 1200mm Hollow Plastic Pallets Making Machine

1200mm Hollow Plastic Pallets Making Machine

Name: 1200mm Hollow Plastic Pallets Making Machine
Brand: SEHENDA
SKU: 127378311
Availability: InStock

1200mm Hollow Plastic Pallets Making Machine thumbnail-1

1200mm Hollow Plastic Pallets Making Machine photo-1

US$ 250,000 - 250,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Bottle

Plastic Processed:

Contact Supplier Request Quote Chat Now

Weifang Xinhengda Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Bottle

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Shandong, China

Brand Name SEHENDA

Model Number SKJ

Weight 32 TONS

Certification CE,ISO

Warranty 1 year

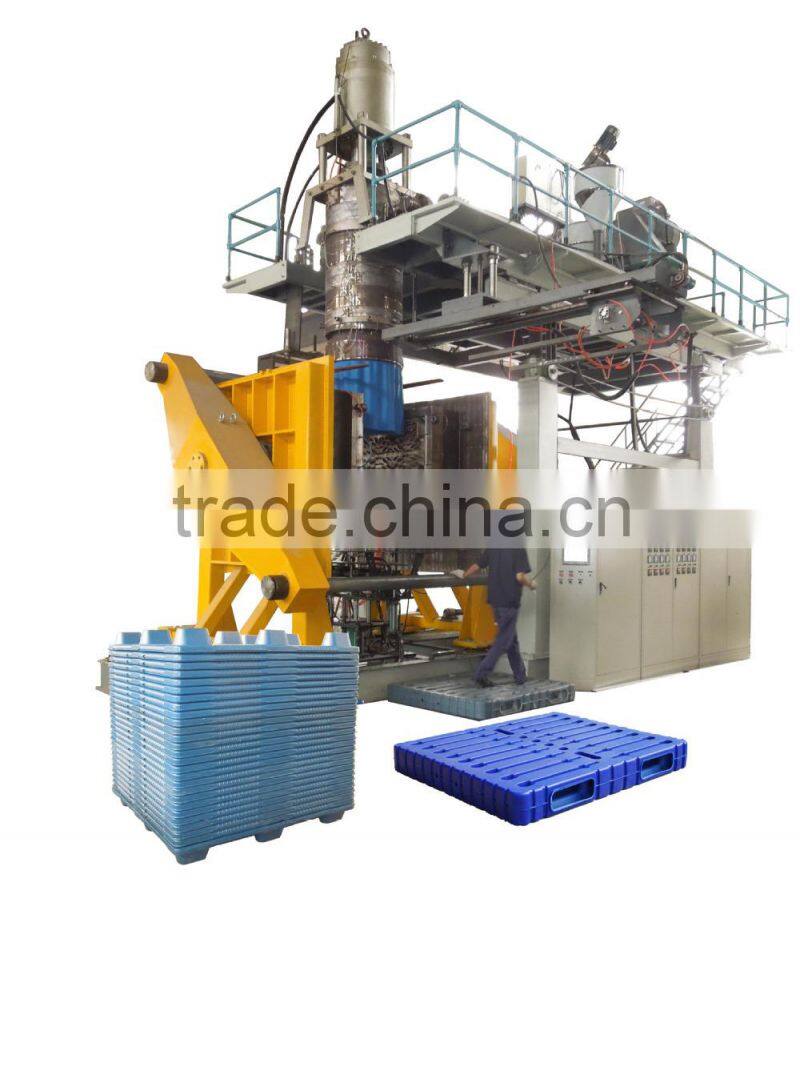

1200mm hollow Plastic Pallets Making Machine

Super-large blow molding machine can produce 1200*1400*150mm and 1400*1600*150 mm plastic pallet.

Raw material is HDPE.

Feature

1. 100 point axis wall thickness control system

2. two pulling-rod clamping structure-stable and reliable

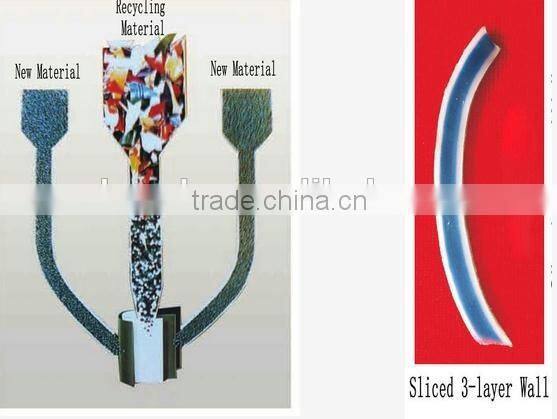

3. 3 layer products-Cost saving & Environmentally friendly

Middle layer-recycling material (50-70% adjustable)

4. Specially designed clamping cylinder-energy-saving

5. Hydraulic system by servo-high energy-saving

6. PLC touch screen by OMRON-easy to operate

7. Stock extruder for better consistency in parison weight

8. Induction Heaters-energy-saving

9. Spiral flow channel design on die head without weld point-homogeneous distribution

10. Quick color changing

Specifiction

MODEL: Fixed clamping type accumulating extrusion machine

TARGET PRODUCT: Blow Molded Pallets

Max Product Dimension: 1400*1600*150mm and 1200*1400*150mm pallet

PLASTIC MATERIAL: HMW-HDPE, HDPE(New or regycle material)

LAYER NO.: 2 layers co-extrusion or 1 layer

AUXILIARY MACHINES: mould, auto-loader, mixer, crusher, chiller, air compressor

Besides blow moulding machines, we also provide auto-loader, mixer, crusher, chiller, cooling tower, water pump, air compressor, air accumulating tank as the auxiliary machines.

machine parameter

SPECIFICATIONS	PARAMETERS
Machine Weight	36 Tons
Machine Size	9.66.66.8 m
Screw Diameter	120 mm
Extrusion Motor Power	90 KW * 2
Total Plasticizing Capacity	640 Kg/hour
Clamping Mode	2*2 Hydraulic Cylinders
Clamping Force	2200 KN
Platen Size	2200*1800 mm
Max Mould Size	1700*1800 mm
Platen Opening Stroke	550-1850 mm
Accumulating Head Volume	65L Double Layer
Average Energy Consumption	225 KW

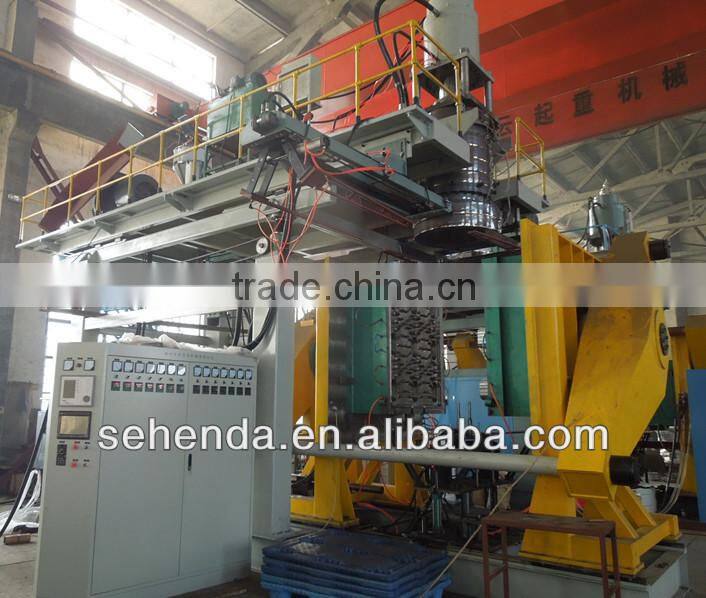

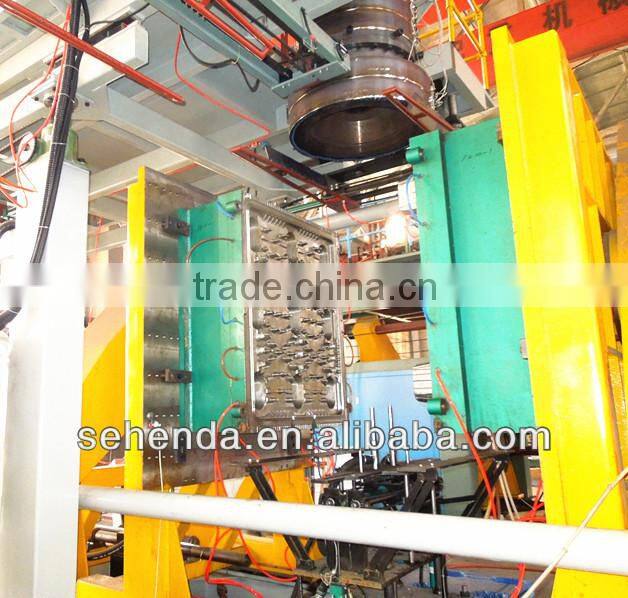

Machine details

Our Services

a) The Seller will dispatch an engineer and translator against the requests of the Buyer to install and adjust the machine for 10 days in the Buyer’s factory.

b) The Buyer need to inform the Seller 15 days in advance.

c)The Buyer should pay for the engineer and translator’s visa application cost, round- tickets, food & accommodation before their departure.

FAQ

FAQ:

1.Q:Are you a factory or trading company?
A: We are one of the most professional manufacturer of blow molding machine in China

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in WEIFANG City,SHANSONG Province, China. You can fly to Shanghai airport. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get your quotation?
A: Please send me several photos of the products (bottle, container,etc) for reference, and tell me the bottle volume(liter), can the capacity (piece/h)??

4.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO authentication.
