Specifications
1)automatic blow molding machine2)energy saving
3)accumulator die head
4)stable clamping system

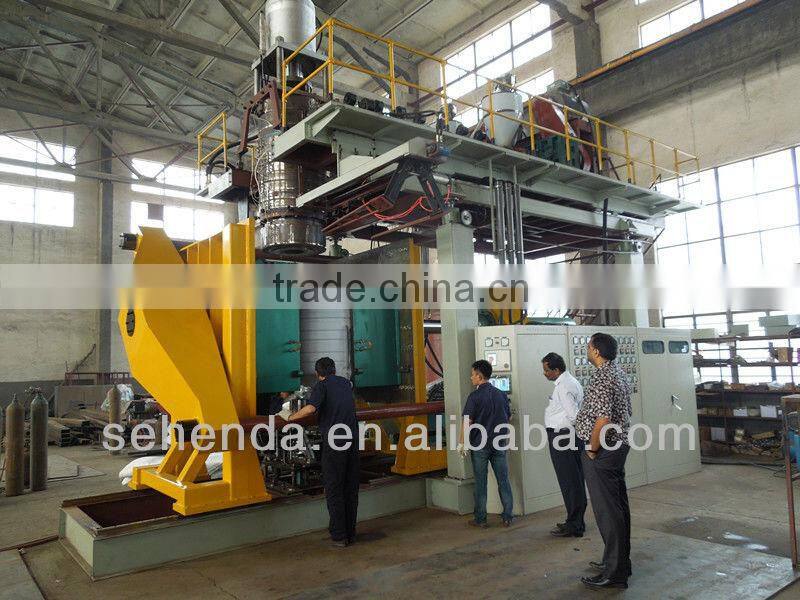

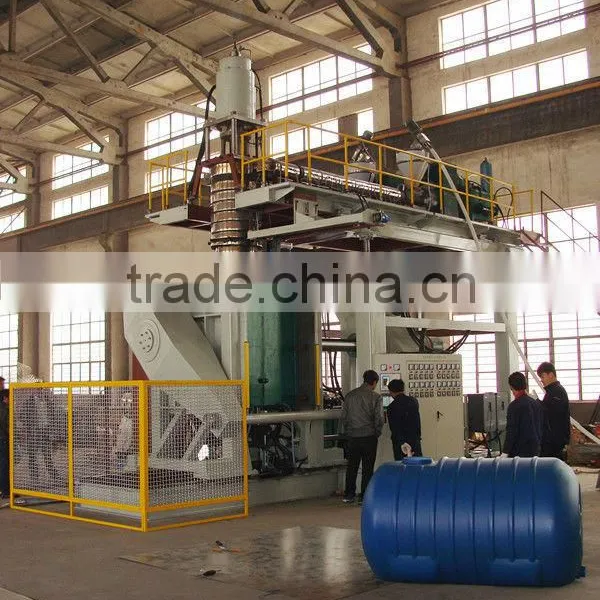

Full-automatic blow moulding machine price blowing machine for HDPE tank
Machine Features:
-The screw adopts IKV design, with high potency melt to make sure the material well mixed.
-Adopt frequency control of motor system to reduce the power consumption.
-Adopt Parison thickness controller Moog 100 points, to make thickness even and adjust the tank weight in big span.
-Fully automatic, easy to operate, two women can operate machine, whole production line need 3 or 4 person only.
-High output versus Roto molding machine
-Save raw material 25% - 35% versus Roto tanks.
-Perfect impact resistance versus Roto tanks.
-Multi layers co-extrusion.
-The mechanical arm can take out the product automatically.
Full-automatic blow moulding machine price blowing machine for HDPE tank
1000L Technical Parameters:
| SKJ1000L ONE LAYER | SKJ1000L DOUBLE LAYER | SK1000L THREE LAYER | ||
| Max. product volume | L | 1000 | 1000 | 1000 |
| Screw diameter | MM | 135 | 110 | 110 |
| Screw L/D ratio | L/D | 30:1 | ||
| Screw drive power | KW | 110 | 75 | 75 |
| Screw heating capacity | KW | 28 | 36 | 48 |
| Screw heating zone | ZONE | 8 | 12 | 18 |
| Output | KG/H | 340 | 350 | 500 |
| Oil pump drive power | KW | 37 | ||
| Clamping force | KN | 800 | ||
| Mould open space | MM | 2300 | ||
| Mould thickness | MM | 1000 | ||
| capacity | L | 35 | ||
| Die head capacity | KW | 35 | 40 | 45 |
| No. of heating zone | ZONE | 4 | ||
| Die head material | 38 CRMOALA(accumulator,lining,piston,die) | |||
| Control action | MITSUBISHI PLC | |||
| Blowing pressure | MPA | 0.6 | ||
| Cooling water pressure | MPA | 0.2 | ||
| size of machine | MM | To be confirmed | To be confirmed | To be confirmed |
| Weight of machine | MT | 20 | 24 | 28 |
Main Unit
| LOW-VOLTAGE APPARATUS | LG | KOREA |
| PNEMATIV | AIRTAC | TAIWAN |
| HYDRAULIC COMPONENT | YUKEN | LAPAN |
| SEAL | DICHT0MATIK | GERMANY |
| OIL MOTOR | SIEMENS | |
| SCREW MOTOR | SINMENS | |
| PROXIMITY SWITCH | OMRON | JAPAN |
| PLC | MITSTUBLISH | |
| TOUCH SCREEN | WEINVIEW | TIAWAN |
| WALL THINKNESS CONTRAL SYSTEM | MOOG | JAPAN |
| FREQUENCY CONVERTERS | ABB/LG/MITSUBISH |
Full-automatic blow moulding machine price blowing machine for HDPE tank
