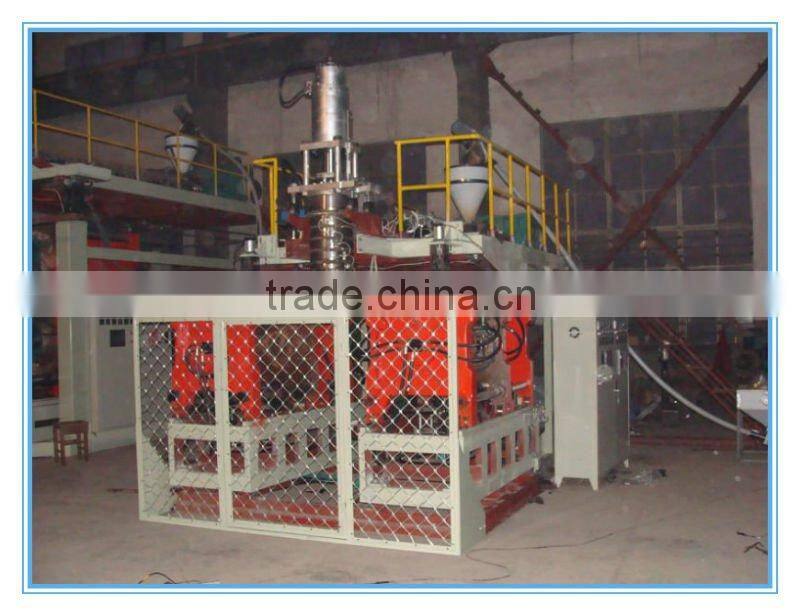

50L Double Station Water Tank Plastic Extruction Production Blow Molding Machine Best Price

FOB Price

US$ 79,000 - 129,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Shandong, China
Brand Name	sehenda	Model Number	SKJ
Certification	CE, ISO 9001: 2008. GB/T9001-2008	Warranty	1YEAR
After-sales Service Provided	Engineers available to service machinery overseas

1)Application: 20-125L, 1-3 layer.
2) 1 year guarantee.
3) CE, ISO 9001: 2008. GB/T9001-2008
4)Fully automatic

50L double station 1-3 layer blow molding machine

Technical specification
		SKJ50L single station	SKJ50L double station
Max. product volume	L	50	50
Screw diameter	MM	100	110
Screw L/D ratio	L/D	25:1 OR 30:1	25:1 OR 30:1
Screw drive power	KW	30 OR 37	37 OR 45
Screw heating capacity	KW	15	22
Screw heating zone	ZONE	5	6
Output	KG/H	160	200
Oil pump drive power	KW	18.5	18.5
Clamping force	KN	200	280
Mould open space	MM	1000	1100
Mould thickness	MM	300-450	320-500
capacity	L	6.3	9.3
Die head capacity	KW	12	14
No. of heating zone	ZONE	4
Die head material	38 CRMOALA(accumulator,lining,piston,die)
Control action	MITSUBISHI PLC
Blowing pressure	MPA	0.6
Cooling water pressure	MPA	0.2
size of machine	MM	520029003900
Weight of machine	MT	8	12

1. Appliction: For container and tank from 20 to 125liter, 1-3 layer

, also can be used to produce pallet, waste bin, road barrier, septictank,and so on.

2. Manpower: 2 new workers are enough for the whole production line, even both are female, and two weeks training are free of charge.

3. Output: 1800pcs for 25L 3 layer tank 24 hour, , also the weight and thickness can be adjusted by you from 1mm to 10 mm.

4. Material: HDPE, HMWHDPE.

5. Certificate: CE, ISO9001:2008.

6. Main Markets: Asia, South Amereica, European.

30 years specializing in manufacturing huge blow moulding machine worth your trust .
