3 horse float angle load deluxe version model 3HAL-D
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
- windturbine blade lifter trailer
- Modular Trailer
- Nozzle 0433171832,DLLA140P1340 Fuel Injector Nozzle for Construction Machinery
- Three-axle stake semi trailer/stake semi trailer/storage/stake truck/stake high bed cattle semi trailer/ semi trailer
- Three-axle side wall semi trailer/Semi trailer/Cargo Semi trailer/Semi trailer
- Mini tractor tipping trailer
Product Details
Max Payload: | 1800kg | Size: | 6325*2280*2590mm | Place of Origin: | Shandong, China |
Brand Name: | LUCKY | Model Number: | 3HAL-D |
Product Description
Our factory is located in Shandong, we have made horse trailers for 7 years to be now. Our oversea market mainly forcuses on Austrialia, New Zealand, Middle East (Saudi, Arabia, Yemen, UAE etc), southeast countries (Singapore, Malaysia, Thailand, Brunei, etc.), Southeast countries (Chile, Argentina, Brazil),
Here we list the mainly model horse trailer, we also do the customized model.

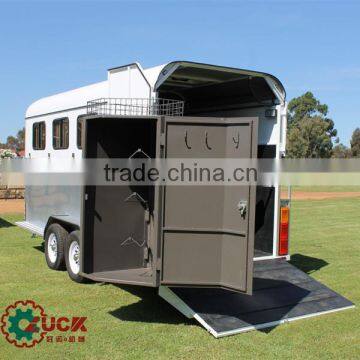

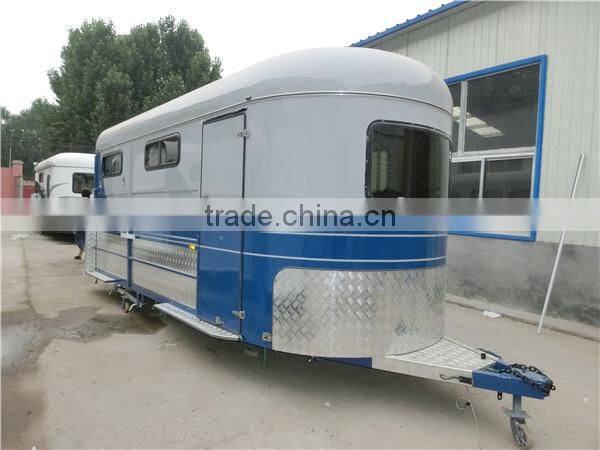

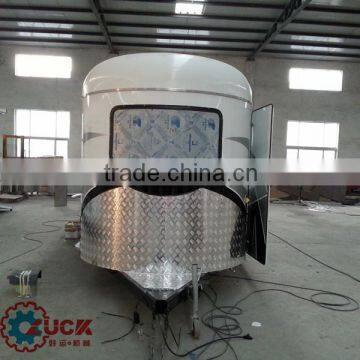

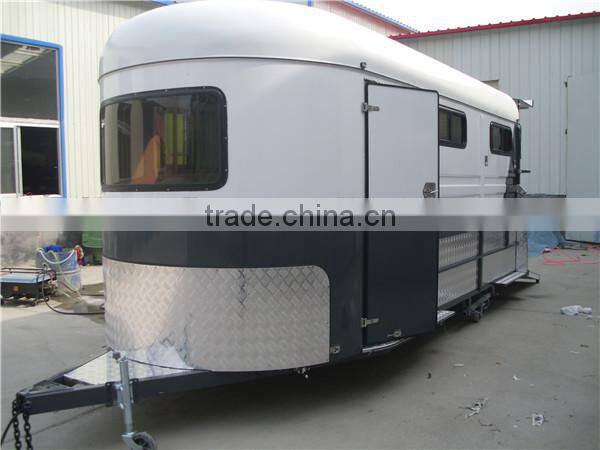

3HAL-D, it is a chinese 3 horse float angle load with kitchen.
MODEL: 3HAL- D | |
1.TRAILER MATERIALS | |
1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) | |
2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm) | |
3 BODY PANEL galvanized (1.2mm) | |
4 ROOF special molded FRP 5475*1890*450mm | |
5 NUTS & BOLTS stainless steel | |
2.WHEELS & TYRES | |
1 WHEEL RIM 14' aluminium alloy rims | |
2.2 TYRES 185R14C | |
2.3 SPARE WHEEL one | |
3.AXLES & SUSPENSIONS | |
3.1 AXLES two special trailer axles | |
3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates | |
3.3 BRAKE SYSTEM dual axle electric brakes | |
4.WINDOWS & DOORS | |
4.1 FRONT WINDOW 1220*610 | |
4.2 SIDE WINDOWS 3 pop-up rectangle windows,2 sliding rectangular windows | |
4.3 VENTS three sash casement vent | |
4.4 SIZE OF SIDE DOOR 1755*615 | |
4.5 REAR UPPER DOOR 2020*1065 | |
4.6 RAMP DOOR 2020*1210 | |
4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut | |
4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges | |
5.DRAWBAR | |
5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium | |
5.2 DRAWBAR SAFETY CHAIN two | |
5.3 BRACING WHEEL one | |
6.LIGHTS & RETRO REFLECTORS | |
6.1 TRAILER PLUGS square 7 wick plug | |
6.2 SIDE LAMPS 6 | |
6.3 REAR LAMPS LED group | |
6.4 REAR LAMPS STAND aluminium | |
6.5 RETRO REFLECTORS 6 | |
7.MUDGUARD | |
7.1 MUDGUARD TYPE compact mudguard | |
7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard | |
7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board | |
8.INTERIOR & EXTERIOR | |

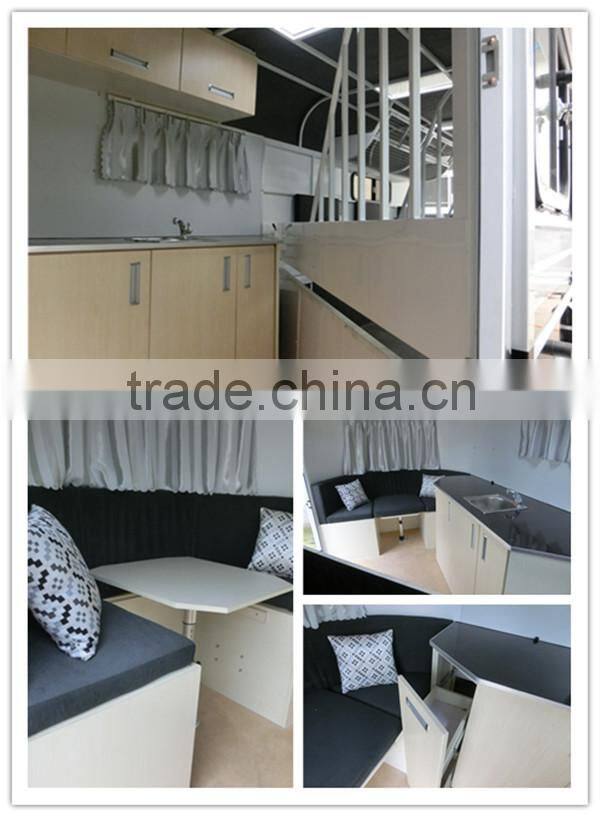

8.1 A KITCHEN with a cupboard and all appliance from yourself | |

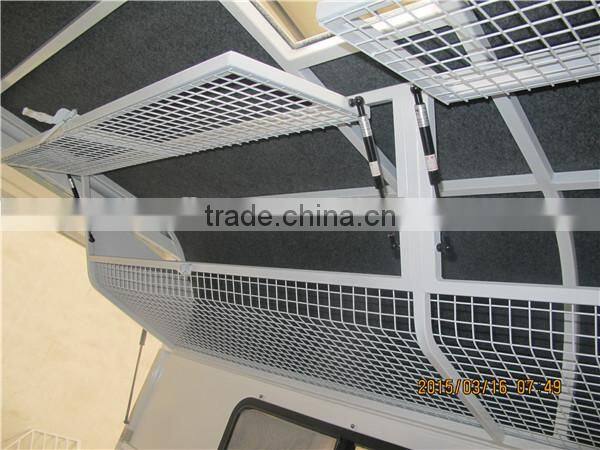

8.2 HORSE PROTECTION FRAME full padded | |
8.3 HORSE RING six | |
8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting | |
8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting | |
8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting | |
8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood | |
8.8 RUG RACK side | |
8.9 WATER TANK one set | |
8.10 SADDLE RACK in saddle box | |
8.11 SADDLE BOX 1500mm height for 3 saddles | |
8.12 PAINTING single or customized | |
9.DIMENSIONS | |
9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6325*2280*2590 | |
9.2 BODY DIMENSIONS ( L x W x H: mm ) 5475*1980 *2230 | |
9.3 MAXIMUM INTERNAL DEMENSION: 5450*1930*2155 |
This chinese hrose trailer front sofa/bed design is very popular.
If there is also other design for the deluxe model, we can produce it based on your requireent.

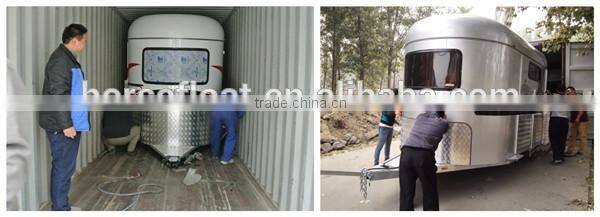

2pcs/40HC container, fixed by special belts
L/T: 35days after order confirmation
Why choose us?
1. We have professional sales team, all the sales are trained well before serving you. It shall be a pleasant thing to deal with us.
For example, sales must update customer production status weekly to make customer posted for the process.

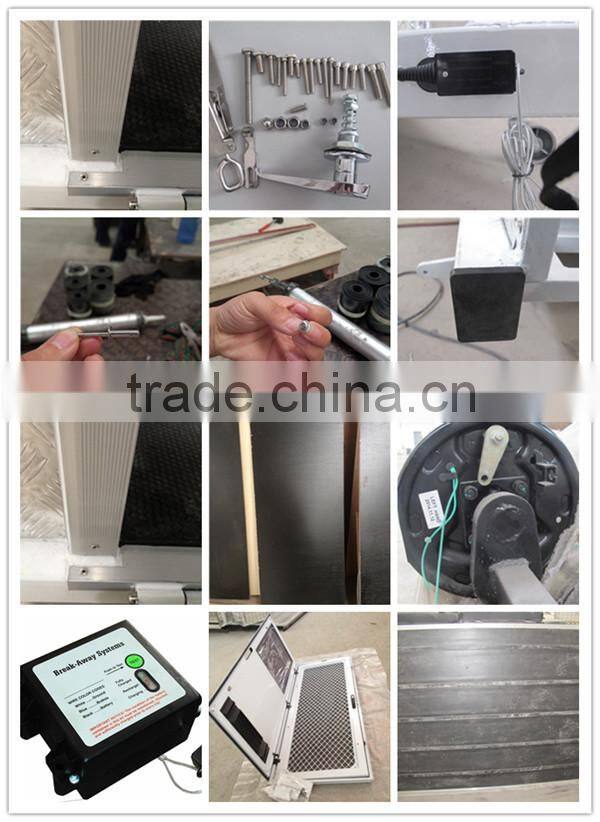

2. Our factory is ISO approved with ISO certificate, with strict quality control from incoming material to shipment. Below are some key raw materials for our products, it makes our horse floats safty, strong and far from rust.
3. Competitive price. With bulk order to our supplier, it makes our price to you always competitive.
4. Rich experiences. We are one of the earliest horse float factory in China, with more than 7 years experiences, we are more professional and reliable.
