Cutting and Wrapping Machine for A4 Copy Paper Model DTCP 4
- ningbo
- T/T
You May Like
-
1800packs Paper Cutting and Packing/wrapping Machine Paper Cutting Machine
-
Automatic Paper Cutting and Packing/wrapping Machine Copy Paper Wrapping Machine
-
4 Roller Copy Paper Cutting and Packing/wrapping Machine
-
China A4a3 Office Paper Cutting and Packing/wrapping Machine CBADEN Small Paper Cutting Machine
-
A4a3 Office Paper Cutting and Packing/wrapping Machine Small Paper Cutting Machine
-
A4a3 A5Office Paper Cutting and Packing/wrapping Machine Paper Cutting Machine
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | CBADEN | Model Number | DTCP | |
| Voltage | 380 | Power(W) | 24KW | |
| Dimension(L*W*H) | 16500*2750*2100(mm) | Weight | 17t | |
| Certification | CE | Warranty | 5 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Cutting and Packing Machine for A4 Copy Paper ModelDTCP 4
Introduction of Cutting and Packing Machine for A4 Copy Paper :
Manufacturer of Cbaden Machine Group design and build thisCBADEN Cutting and Packing Machine for A4 Copy Paper Model DTCP4, it is the ideal equipment for the A4 paper cutting and packing producing industrial .
The Cutting and Packing Machine for A4 Copy Paper Model DTCP 4 (A4-pocket cut-size copy paper sheeting and wrapping ream machine) is used to cut big paper roll into A4, A3, B5 and 8.5×11 inch sizes. We can customize the product according to clients' requirements, such as letter size etc, it could product the paper size of A4 , A3 and 5 or other size . the CBADEN Cutting and Packing Machine for A4 Copy Paper, could give the output of paper products from 8 pack each minute till 35 pack each minute according to the needs Please contact our CBADEN person by mail,our friendly staff will offer you great service. Optional Parts Auto wrapping system .
Manufacturer of Cbaden Machine Group can customize for you ,please contact our Cbaden person by mail Cbaden will offer you with superior service .

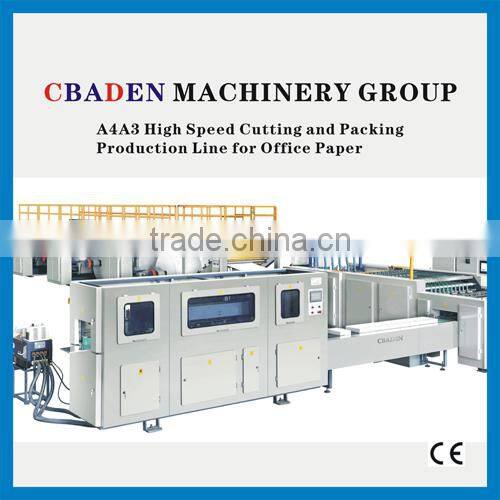

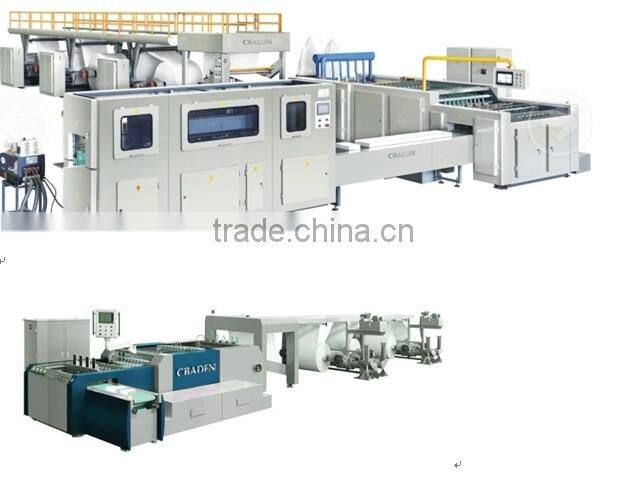

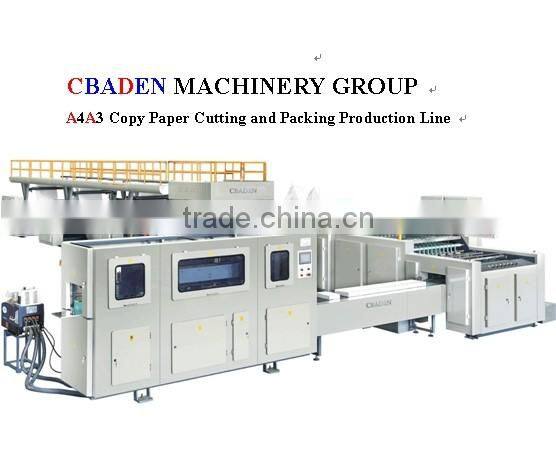

Machine photo:

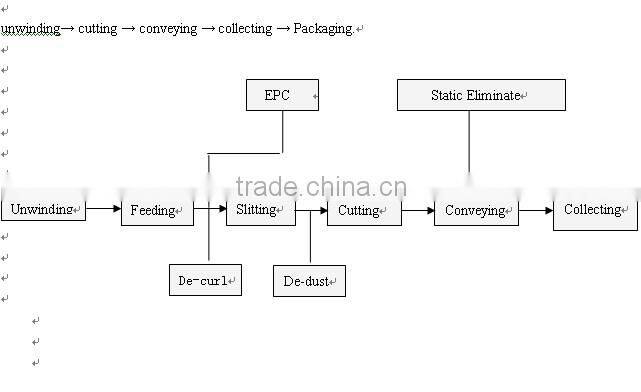

Working process :
Main Structure :
1.Paper lifting-up unit, it is shaft-less 4 sets
2.Tension controlling system , it is advanced 4 sets
3. Anti-curved unit 4 sets
4.Vertical type slitting unit , with up and down blade units 5 sets
5. Synchronous sheeting unit ,with up and down blade units 1 sets
6.High-speed paper feeding system 1 set
7.slow-speed paper feeding system 1 set
8. Automatic layout unit ,the waste paper 1 set
9. Paper correction device , it is 2D shaking paper and
screw lifting-falling type 1 set
10. PLC counting the ream paper 1 set
11. delivery device the ream paper , it is by vertical and horizontal type
1 set
12.PLC malfunction warning system and PLC control system 1 set
13.movable feeding belt 1 set
14. type of wheel to deliver paper 1 set
15. type of wheel to correct paper 1 set
Parameter:
Paper Width | Gross width 846mm, net width 840mm |
Cutting numbers | 4 rollers 4 cutting-A4 210mm (width) |
Paper roll’s diameter | Max.1200mm. Min.400mm |
Paper core’s diameter | 3”(76.2mm)or 6”(152.4mm) |
Packing Paper grade | High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
Paper weight | 60-100g/m2 |
Sheet length | 297mm ( specially design for A4 paper, the cutting length is 297mm) |
Ream amount | 500 sheets Max. Height: 65mm |
Production speed | Max .180-220m/min(depends on different paper quality) |
Max. Numbers of cutting | 437/min |
Output of the ream | 16reams/min |
Load of cutting | 400g/m2 (4×100g/m2) |
Cutting accuracy | ±0.2mm |
Cutting condition | No variation of the speed, no paper break that cut all the paper at one time and need the eligible paper. |
Main power supply | 3×380V /50HZ |
Voltage | 220V AC /24V DC |
Power | 24KW |
Air consumption | 300NL/min |
Air pressure | 0.6-0.8 mpa |
Edge cutting | 2×10mm |
Safety standard | Design according the safety standard of China |
Machine weight | 15T |
Machine dimension | 16500(mm)*2750(mm)*2100(mm) |
Packing Unit:
Main specification :
Working speed of the packing | 16-20 packs/ m. |
Working speed of the cover paper | 16-20pcs/ m. |
Packing specification | 210×297×50mm(according to A4 size and 500pcs) |
voltage | 380V 3 phases 4 lines |
Motor power | 6.5kw |
Gluing power | 2.25kw |
Compressed air | 0.6-0.8 mpa |
paper specification L W | 550-560mm×386mm |
Machine weight | 2T |
Machine dimension | 3400*3300*1600mm |
