JL Filter Water Treatment

Name: JL Filter Water Treatment
Brand: Jiuzhou HongKong
SKU: 127126649
Availability: InStock

US$ 200 - 2,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Jiuzhou HongKong

Model Number:

JL600-2

Beijing Jiuzhou Qingyuan Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tian Jin Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Jiuzhou HongKong

Model Number JL600-2

Specifications

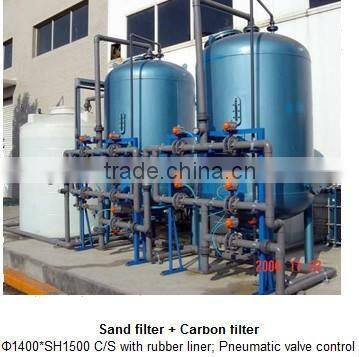

Type:Sand filter+Carbon filter
Modle:JL600-2~JL900-5
Voltage:220V/380V
Frequency:50HZ/60HZ

JL Series

Applications :

(1)Pretreatment for drinking water

(2)Filtration for swimming pool

(3)Feed water filtration for residence

(4)Intermediate-water treatment

(5)Circulating water treatment

(6)Agricultural irrigation

(7)Seawater & fleshwater aquaculture

Feature :

(1)Tank: High-tech composite material;

(2)Pressure- resisting & Corrosion-resisting

(3)Control: Automatic control; Parameters are adjustable

(4)Modularization: Two or more tanks running in parallel

(5)Running: Ausomatic running;

(6)Tanks backwash one by one;

(7)Uninterrupted supply of water

(8)Media: Suitable for Silica sand, Activated carbon, Anthracite, Green sand and Ceramic media.

JL Series automatic multi-media filtration
	JL600-2	JL600-3	JL600-4	JL600-5	JL900-3	JL900-4	JL900-5
port in/out	3"	4"	5"	5"	5"	5"	5"
Drain	2"	2"	3"	3"	3"	4"	4"
backwash valve	2"	2"	2"	2"	2"	3"	3"
Capacity m 3 /h
worse water	20-25	30-38	40-50	50-62	60-85	80-110	100-140
good water	32-38	48-58	64-76	80-95	110-130	145-170	180-215
normal water	25-32	38-48	50-64	62-80	85-110	110-145	140-180
Weight(Kg)	44	66	88	110	165	220	275
Silica Sand(KG)	240	360	480	600	1200	1600	2000
Equipment Dimansion
Length(mm)	1400	2100	3100	3800	3100	4600	5600
Width(mm)	700	800	1000	1000	1500	1500	1500
Height(mm)	1600	1600	1600	1600	2200	2200	2200
