Help CenterFobrite F41 Series Valve
Related Products
Specifications
Type:FOBRITE F41 series ValveModel:F41-STC
Pressure:(50PSI/3.5Bar)
Certificate:NSF/ROHS/CE
Electrical rating:220V/110V/24V
FOBRITE F41 SERIES VALVES
(Can instead of Fleck 3150 and the accessories is available for Fleck3150 valves)
Features :
(1) Full adjustable 5-cycle controlled upflow back wash,downflow brining and slow rinse,rapid rinse,timed brine refill and downfow service.
(2) Time-tested hydraulically balanced piston,seal and spacer design
(3) Ideal for filter applications
(4) Solid lead-free brass valve body for superior strength and durability
(5) NHWB piston option
F41
F41-STC F41 series softener timer
F41-SMM F41 series softener Meter
F41-FTC F41 series Filter Timer
F41-FMM F41 series Filter Meter
F41 Specification | ||||||
|
Flow rate (50PSI/3.5Bar,Valve alone) |
|||||
|
Continuous(15PSI/1Bar Drop) |
95GPM/360LPM |
||||
|
Peak(25PSI/1.7Bar Drop) |
124GPM/470LPM |
||||
|
Max backwash(25PSI/1.7Bar Drop) |
105GPM/398LPM |
||||
|
CV(1PSI/0.07Bar Drop) |
24.8 |
||||
Regeneration | ||||||
|
Downflow / Upflow |
Downflow or upflow |
||||
|
Cycles |
5 |
||||
|
Adjustable cycles |
Mechanical |
NXT |
|||
All |
All |
|||||
|
Time Available |
164Minutes |
0-999minutes/cycle |
|||
Flow Meter | ||||||
|
Accuracy range |
3-150GPM/11.5-568LPM±5% |
||||
|
Capacity range |
Standard:1250-21250G/4.8-40m3 |
||||
Extended:6250-106250 G/24-400m3 | ||||||
Mounting &Shipping | ||||||
|
Inlet/Outlet |
2”NPT |
||||
|
Base |
4” 8UN |
||||
|
Distributor Pilot |
2.49”OD |
||||
|
Drain Line |
2" NPT |
||||
|
Brine Line |
1” NPT |
||||
|
Height from top of tank |
10”/254mm |
||||
|
Weight(Single valve gross) |
Timer 19Kg/Meter 22Kg |
||||
|
F41 NXT system Specification | ||||
System |
Valve Qty |
Valve Needed |
Meter |
Function |
|
4# Single valve |
1 |
Time |
N/A |
Regeneration by set time |
Meter Imm |
1 |
Regeneration immediately when meter zeros out |
||
Meter Delayed |
1 |
Regeneration delayed to the set time after meter zeros out |
||
Remote Signal Start |
Optional |
Regeneration starts by remote signal |
||
|
5# Interlock |
2-4 |
Meter Imm |
All Meters |
All units in service at the same time. When one meter zeros out or receives a remote signal, that unit starts regeneration. Other units remain in service even if they zero out during this time. |
Remote signal Start |
Optional |
|||
|
6# Series |
2-4 |
Meter Imm |
1 |
All units in service at the same time. When system meter zeros out or receives remote start signal, the “lead“ unit regenerates, others remain in service until the lead returns to service. The subsequent units regenerate as needed. |
Remote signal Start |
Optional |
|||
|
7# Alternating |
2 |
Meter Imm |
1 |
One unit in service, the other one on stand-by. When meter zeros out or receives the remote start signal, the service one goes to regeneration and the stand-by one goes to service at the same time. |
Remote signal Start |
Optional |
|||
|
9# Alternating
|
2-4 |
Meter Imm |
All Meters |
One unit on stand-by, all units in service. When one meter zeros out or receives the remote start signal ,it goes to regeneration and the stand-by one goes to service at the same time. |
Remote signal Start |
Optional |
|||

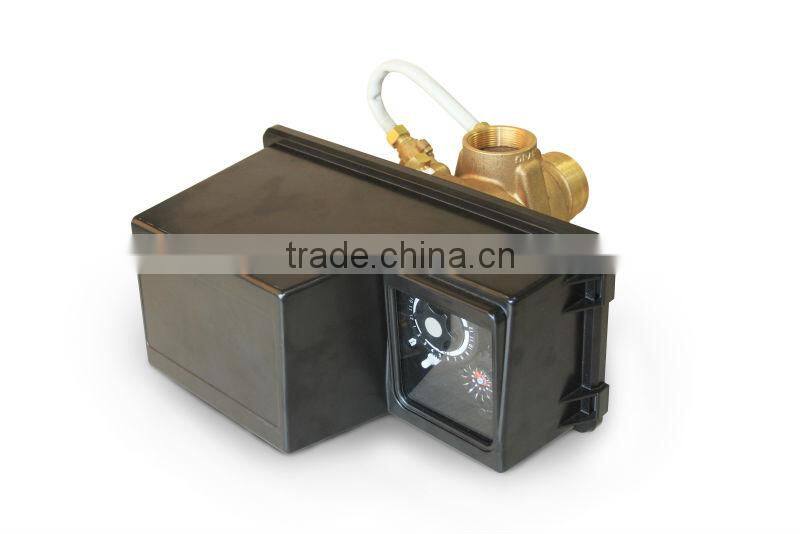

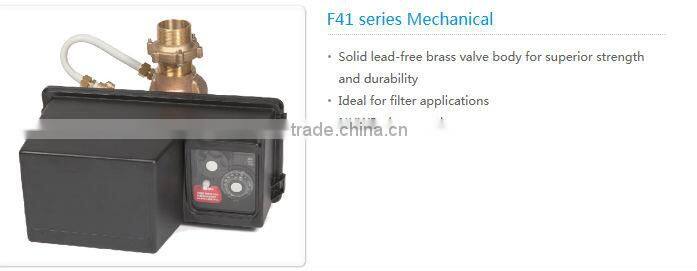

F41 Mechanical

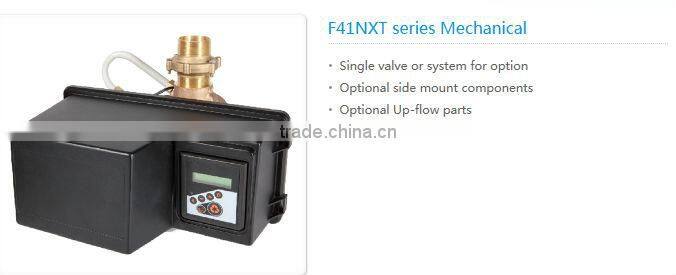

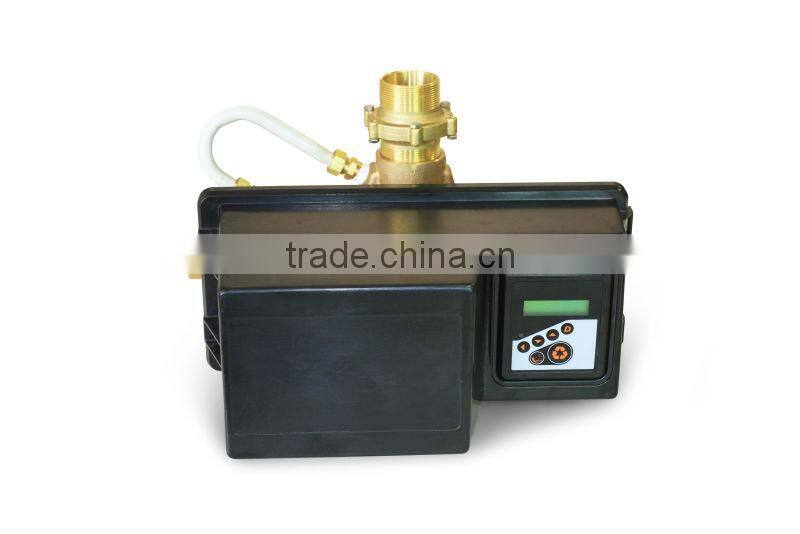

F41 NXT
All the equipments is high quality components designation and 100% factory tested before shipment. 1-Year Manufacturer's warranty Years of trouble free service offered. So any problem, please do not hesitate to contact me, and I will help you to solve your problem within 24 hours.
Withhighly-quality purified water treatment plant and accessories,the quality is absolutely guaranteed. By the way, we always offer spare accessories that easy loss by free. So you can choose our equipments or accessories with zero worry.
Best quality+ Thoughtful service=100% trust
