Specifications
Type:FOBRITE F21 series ValveModel:F21-STC
Pressure:(50PSI/3.5Bar)
Certificate:NSF/ROHS/CE
Electrical rating:220V/110V/24V

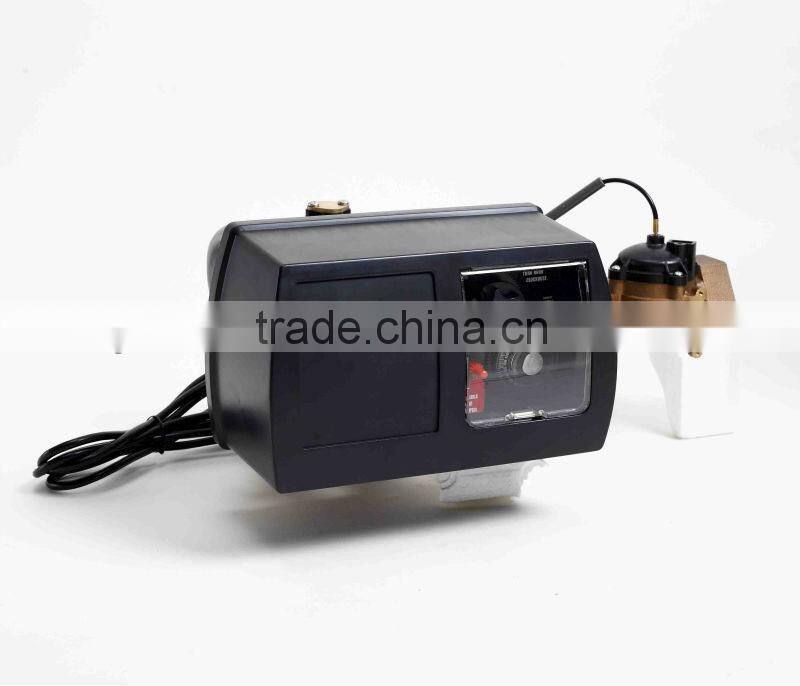

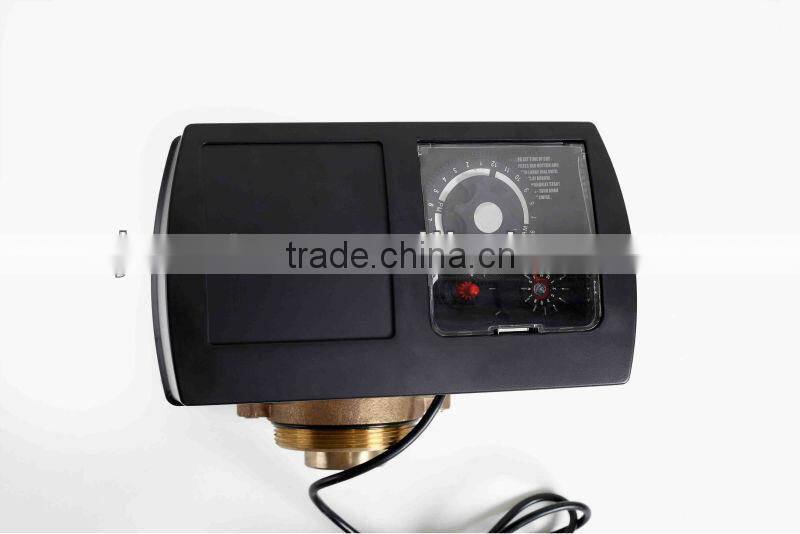

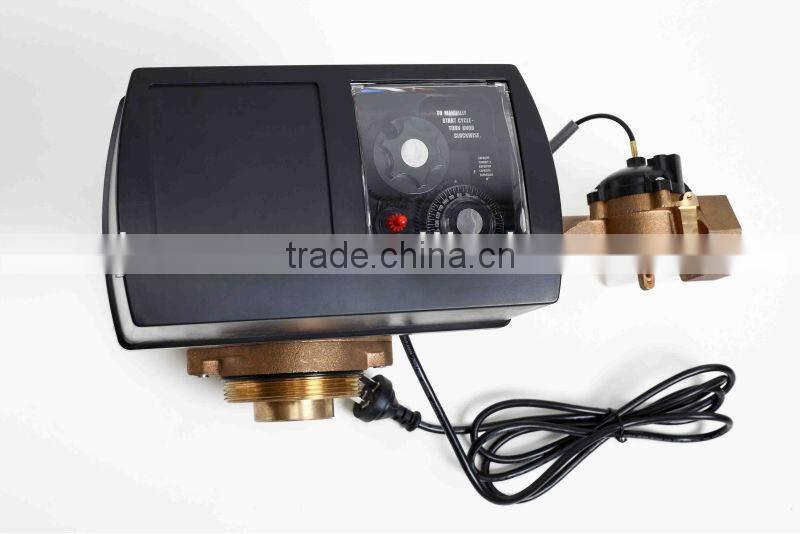

FOBRITE F21 SERIES VALVES
(Can instead of Fleck 2850 and the accessories is available for Fleck2850 valves)
Features :

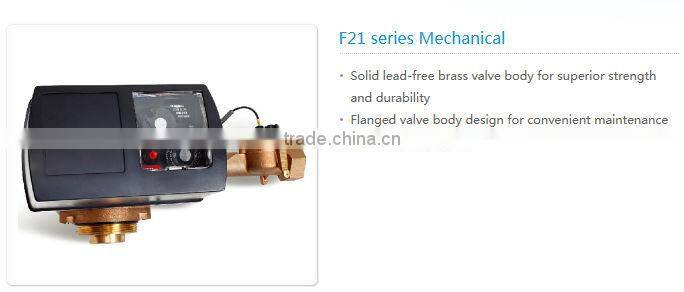

(1)Solid lead -free brass valve body for superior strength and durability
(2)NHWB piston option
(3)Time-tested hydraulically balanced piston,seal and spacer design
(4) Flanged valve body design for convenient maintainen
F21
F21-STC F21 series softener timer
F21-SMM F21 series softener Meter
F21-FTC F21 series Filter Timer
F21-FMM F21 series Filter Meter
F21 Specification | ||||||
|
Flow rate (50PSI/3.5Bar,Valve alone) |
|||||
|
Continuous(15PSI/1Bar Drop) |
51GPM/193LPM |
||||
|
Peak(25PSI/1.7Bar Drop) |
66GPM/250LPM |
||||
|
Max backwash(25PSI/1.7Bar Drop) |
49GPM/185LPM |
||||
|
CV(1PSI/0.07Bar Drop) |
13.2 |
||||
Regeneration | ||||||
|
Downflow / Upflow |
Downflow only |
||||
|
Cycles |
5 |
||||
|
Adjustable cycles |
Mechanical |

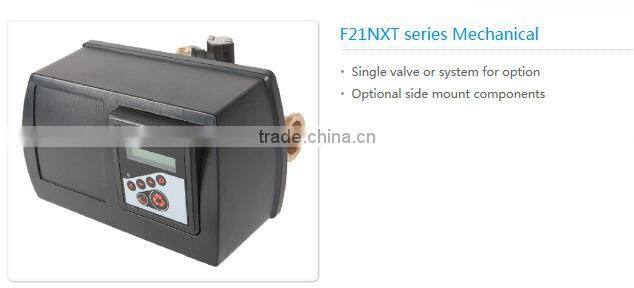

NXT |
|||
All |
All |
|||||
|
Time Available |
164Minutes |
0-999minutes/cycle |
|||
Flow Meter | ||||||
|
Accuracy range |
1.5-75GPM/5.7-284LPM±5% |
||||
|
Capacity range |
Standard:625-10125G/2.5-40m3 |
||||
Extended:3125-53125 G/12-200m3 | ||||||
Mounting &Shipping | ||||||
|
Inlet/Outlet |
1-1/2”NPT |
||||
|
Base |
4”-8 8UN |
||||
|
Distributor Pilot |
1.96”OD |
||||
|
Drain Line |
1” NPT |
||||
|
Brine Line |
1/2”OD |
||||
|
Height from top of tank |
7-1/2”/190mm |
||||
|
Weight(Single valve gross) |
Timer 10Kg/Meter 12.5Kg |
||||
|
F21 NXT system Specification | ||||
System |
Valve Qty |
Valve Needed |
Meter |
Function |
|
4# Single valve |
1 |
Time |
N/A |
Regeneration by set time |
Meter Imm |
1 |
Regeneration immediately when meter zeros out |
||
Meter Delayed |
1 |
Regeneration delayed to the set time after meter zeros out |
||
Remote Signal Start |
Optional |
Regeneration starts by remote signal |
||
|
5# Interlock |
2-4 |
Meter Imm |
All Meters |
All units in service at the same time. When one meter zeros out or receives a remote signal, that unit starts regeneration. Other units remain in service even if they zero out during this time. |
Remote signal Start |
Optional |
|||
|
6# Series |
2-4 |
Meter Imm |
1 |
All units in service at the same time. When system meter zeros out or receives remote start signal, the “lead“ unit regenerates, others remain in service until the lead returns to service. The subsequent units regenerate as needed. |
Remote signal Start |
Optional |
|||
|
7# Alternating |
2 |
Meter Imm |
1 |
One unit in service, the other one on stand-by. When meter zeros out or receives the remote start signal, the service one goes to regeneration and the stand-by one goes to service at the same time. |
Remote signal Start |
Optional |
|||
|
9# Alternating
|
2-4 |
Meter Imm |
All Meters |
One unit on stand-by, all units in service. When one meter zeros out or receives the remote start signal ,it goes to regeneration and the stand-by one goes to service at the same time. |
Remote signal Start |
Optional |
|||
All the equipments is high quality components designation and 100% factory tested before shipment. 1-Year Manufacturer's warranty Years of trouble free service offered.
Withhighly-quality purified water treatment plant and accessories,the quality is absolutely guaranteed.So you can choose our equipments or accessories with zero worry.
Best quality+ Thoughtful service=100% trust
