Specifications
EM66 GSM GPRS Module With Low Price1.Quad-Band 850/900/1800/1900MHZ
2.GPRS multi-slot class 12
3.CE certificated
EM66 GSM GPRS Module With Low Price
EM66 is an ultra compact reliable wireless module. It is a complete quad-band GSM/GPRS(also support EDGE downlink) module in a SMT type which is designed specially for Chinese mainland market and overseas market. It allows you to benefit from small dimensions and cost-effective solutions.
Featuring an industry-standard interface, the EM66 delivers GSM/GPRS 850/900/1800/1900MHZ performance for voice, SMS, Data and Fax in a small form factor and with low power consumption. With a tiny configuration of 30.2mm X 21mm X 2.4mm, EM66 can fit almost all the space requirements in your applications, especially for slim and compact demand of design.
Smart Machine Smart Decision
General Features
*Quad-Band 850/900/1800/1900MHZ
*GPRS multi-slot class 12
*GPRS mobile station class B
*Support EDGE downlink data transmission
*Compliant to GSM phase 2/2+
-Class 4 (2W @850MHZ)
-Class 4 (2W @900MHZ)
-Class 1 (1W @1800MHZ)
-Class 1 (1W @1900MHZ)
*SAIC (Single Antenna Interference Cancellation) support
*Dimensions: 30.2mm X 21mm X 2.4mm
*Weight: about 7g
*Control via AT commands (GSM 07.07, 07.05 and OVIPHONE enhanced AT Commands)
*SIM application toolkit
*Supply voltage range: 3.4…4.2V
*Low power consumption: 0.8mA (sleep mode & BS-PA-MFRMS=9)
*Operation temperature: -30°C to +70°C
*Peak current: Maximum 2A
*Operation current: Average 220mA
*Average current (Idle): 5mA
Customized Features
*FOTA
*MMS
*Embedded AT
Specifications for GPRS/EDGE Data
*GPRS class 12: Max. 85.6 kbps (Downlink), max 42.8 kbps (uplink)
*EDGE: Max 384 kbps (downlink)
*PBCCH support
*GPRS Coding schemes CS 1, 2, 3, 4
*EDGE Coding schemes MCS1~9
*PPP-stack
Specifications for CSD Data
*CSD up to 14.4 kbps
*USSD
*Non transparent mode
Specifications for SMS via GSM/GPRS
*Point to point MO and MT
*SMS cell broadcast
*Text and PDU mode
Specifications for Voice
*Tri-codec
-Half rate (HR)
-Full rate (FR)
-Enhanced Full rate (EFR)
*AMR
-Half Rate (HR)
-Full rate (FR)
*Hands-free operation
(Echo suppression)
Interfaces
*Interface to external SIM 3V/1.8V
*Analog audio interface
*Two Serial interfaces
*Antenna pad
*GPI0
*Two INT interface
*PCM
Compatibility
*AT cellular command interface
Certifications
*CE
Software Features
*7010 MUX protocol
*Embedded TCP/UDP protocol
*FTP/HTTP

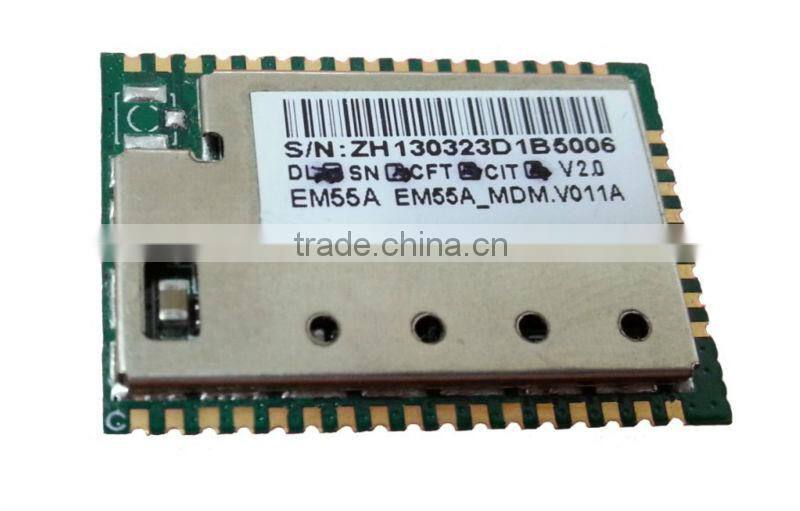

Front Side Picture:

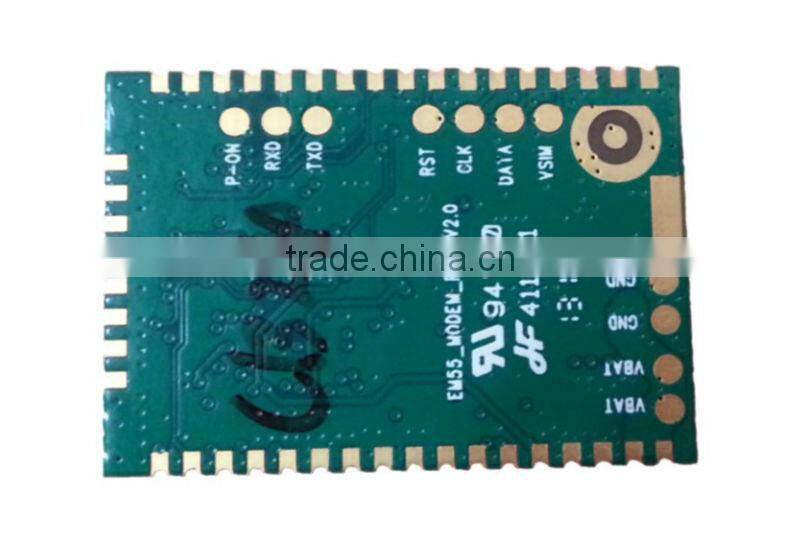

Back Side Picture:

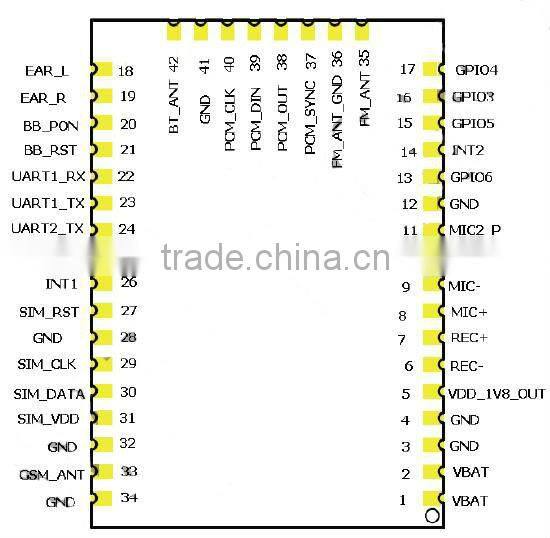

Pin Definition:
Thanks for your time,for any further information,please feel free to send us inquiry!
