Product Details
Place of Origin: | Zhejiang, China | Brand Name: | OVIPHONE | Model Number: | EM56 |
Product Description
Specifications
Cheap GSM Modules With CE Certificate Support PCM1.Quad-Band 850/900/1800/1900MHZ
2.CE certificated
Cheap GSM Modules With CE Certificate Support PCM
EM56 is an ultra compact reliable wireless module. It is a complete quad-band GSM/GPRS(also support EDGE downlink) module in a SMT type which is designed specially for Chinese mainland market and overseas market. It allows you to benefit from small dimensions and cost-effective solutions.
Featuring an industry-standard interface, the EM56 delivers GSM/GPRS 850/900/1800/1900MHZ performance for voice, SMS, Data and Fax in a small form factor and with low power consumption. With a tiny configuration of 30.2mm X 21mm X 2.4mm, EM56 can fit almost all the space requirements in your applications, especially for slim and compact demand of design.
Smart Machine Smart Decision
General Features
*Quad-Band 850/900/1800/1900MHZ
*GPRS multi-slot class 12
*GPRS mobile station class B
*Support EDGE downlink data transmission
*Compliant to GSM phase 2/2+
-Class 4 (2W @850MHZ)
-Class 4 (2W @900MHZ)
-Class 1 (1W @1800MHZ)
-Class 1 (1W @1900MHZ)
*SAIC (Single Antenna Interference Cancellation) support
*Dimensions: 30.2mm X 21mm X 2.4mm
*Weight: about 7g
*Control via AT commands (GSM 07.07, 07.05 and OVIPHONE enhanced AT Commands)
*SIM application toolkit
*Supply voltage range: 3.4…4.2V
*Low power consumption: 0.8mA (sleep mode & BS-PA-MFRMS=9)
*Operation temperature: -30°C to +70°C
*Peak current: Maximum 2A
*Operation current: Average 220mA
*Average current (Idle): 5mA
Customized Features
*FOTA
*MMS
*Embedded AT
Specifications for GPRS/EDGE Data
*GPRS class 12: Max. 85.6 kbps (Downlink), max 42.8 kbps (uplink)
*EDGE: Max 384 kbps (downlink)
*PBCCH support
*GPRS Coding schemes CS 1, 2, 3, 4
*EDGE Coding schemes MCS1~9
*PPP-stack
Specifications for CSD Data
*CSD up to 14.4 kbps
*USSD
*Non transparent mode
Specifications for SMS via GSM/GPRS
*Point to point MO and MT
*SMS cell broadcast
*Text and PDU mode
Specifications for Voice
*Tri-codec
-Half rate (HR)
-Full rate (FR)
-Enhanced Full rate (EFR)
*AMR
-Half Rate (HR)
-Full rate (FR)
*Hands-free operation
(Echo suppression)
Interfaces
*Interface to external SIM 3V/1.8V
*Analog audio interface
*Two Serial interfaces
*Antenna pad
*GPI0
*Two INT interface
*PCM
Compatibility
*AT cellular command interface
Certifications
*CE
Software Features
*7010 MUX protocol
*Embedded TCP/UDP protocol
*FTP/HTTP

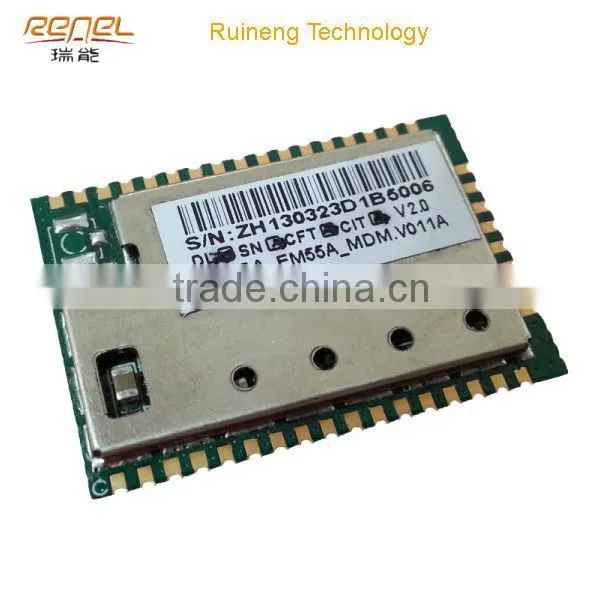

Front Side Picture:
Back Side Picture:

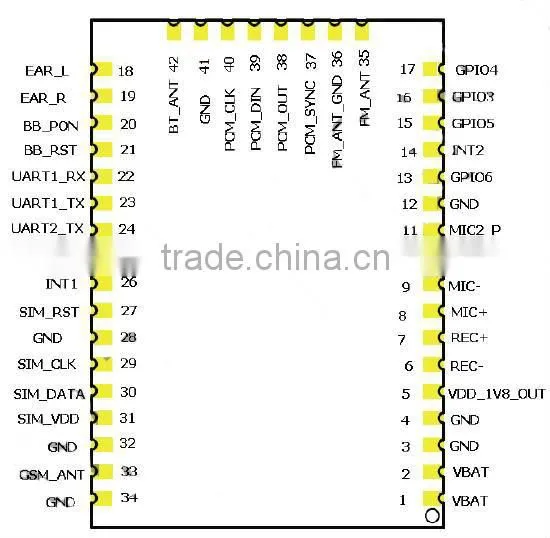

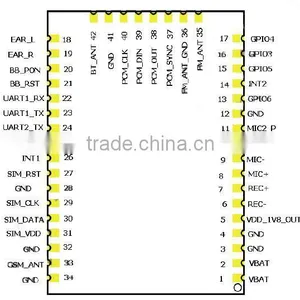

Pin Definition:
1.Sample packed in small bag or tray,within 10 days for sample delivery.
2.Bulk order packed in tray,50pcs each tray,25 days for bulk order delivery.
1.Can accept sample orders to test our quality at first.
2.Can offer technical support during cusomer's developmen.
3.Can offer firmware customize service.
4.Offer 1 year factory warranty.
Thanks for your time,for any further information,please feel free to send us inquiry!
