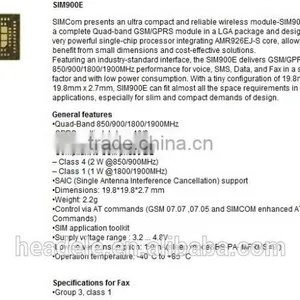

SIM900E
SIMCom presents an ultra compact and reliable wireless module-SIM900E. This is a complete Quad-band GSM/GPRS module in a LGA package and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.
Featuring an industry-standard interface, the SIM900E delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 19.8mmx 19.8mm x 2.7mm, SIM900E can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.
General features
•Quad-Band 850/900/1800/1900MHz
•GPRS multi-slot class 10/8
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @850/900MHz)
– Class 1 (1 W @1800/1900MHz)
•SAIC (Single Antenna Interference Cancellation) support
•Dimensions: 19.8*19.8*2.7 mm
•Weight: 2.2g
•Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
•SIM application toolkit
•Supply voltage range : 3.2 ... 4.8V
•Low power consumption: 1.0mA(sleep mode&BS-PA- MFRMS=9 )
•Operation temperature: -40°C to +85 °C
Specifications for Fax
•Group 3, class 1
Specifications for GPRS Data
•GPRS class 10:max. 85.6 kbps (downlink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
Specifications for CSD Data
•USSD
•Non transparent mode
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Approvals(plan):
•CE
•FCC
Packege
•LGA
Specifications for Voice
•Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•AMR
- Half rate (HR)
- Full rate (FR)
•Hands-free operation
(Echo suppression)
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•FOTA(special version)
•MMS
•DTMF
•Ecall (special version)
•Jamming Detection
•SSL
•SMS Autorun
•Ping
•Email
Interfaces
•Interface to external SIM 3V/1.8V
•Analog audio interface
•RTC backup
•Serial interface
•Antenna pad
•GPIO
•PWM
•ADC
•keypad
Compatibility
•AT cellular command interface
