Wireless Module Gsm Module Camera Cheap Gsm Module Zte Mg2639_v2
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZTE
Model Number:
MG2639_V2
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Gprs Module Cheap Gsm ModuleNegotiableMOQ: 1 Piece -
2g Wireless Gsm Gprs Gps ModuleUS$ 1 - 100MOQ: 1 Piece
-
Wirelless Module GSM GPRS Module SIM900-DS SIMCOMNegotiableMOQ: 1 Piece
-
Wireless Module GPS GLONASS Module SIM28 SIMCOM USB 2.0NegotiableMOQ: 1 Piece
-
Wireless Module GPS GLONASS SIM28 SIMCOM USB 2.0 MODEMNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ZTE
Model Number
MG2639_V2

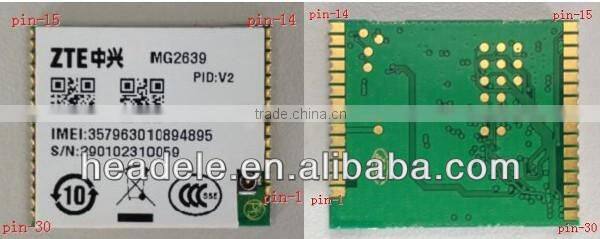

With 30-PIN stamp-hole interface, MG2639_V2 module developed by ZTE Corporation is a kind of GSM850/EGSM900/DCS1800/PCS1900 industrial module, which can be built in the Set-Top-Box, vehicle-mounted terminals, and enable users to get access to the Internet wirelessly and send/receive Emails, browse the web pages, download at high speed, etc.
It enables users to get access to the Internet any time in a place where the GSM network is covered. It also features in SMS, voice call, etc. and provides highly free and convenient solutions for users in mobile data communication, and truly realizes the dream of mobile office.
| Product Information | |
| Parameter | MG2639_V2 |
| General Features | |
| Frequency Bands | GSM850/EGSM900/DCS1800/PCS1900 |
| Dimensions | 30.0×25.0x2.68mm |
| Weight | 7g |
| Operating Temperature Range | -30°C~+70°C |
| Storage Temperature Range | -40°C~+85°C |
| Performance | |
| Operating Voltage Range | 3.4V~4.25V/Typical: 3.8V |
| Standard power consumption | Standby Current: 2mA@-75dBm |
| Talk Current: 128mA@-75dBm | |
| Max. Current: 300mA@-104dBm | |
| Max. TX Power | GSM850/EGSM900: Class 4 (2W) |
| DCS1800/PCS1900: Class 1 (1W) | |
| Rx. Sensitivity | <-107dBm |
| Interfaces | |
| Connector | 30Pin Stamp-hole |
|
Antenna Integrated Full Duplex UART |
SMT 50Ω Antenna Connector |
| AT commands/Data transmission | |
| SIM Card Interface | 1.8V/3.0V |
| Data Features | |
| GPRS | Class 10 |
| Mobile Station | Class B |
| Max Downlink | 85.6kbps |
| Max Uplink | 42.8kbps |
| Protocol | Internal TCP/IP&UDP |
| Embedded FTP | |
| SMS | |
| Support TEXT/PDU Mode | |
| Point-to-point MO/MT | |
| SMS Cell Broadcast | |
| Voice call | |
| Vocoders HR/FR/EFR/AMR | |
| Echo Cancellation/Volume Control/DTMF | |
| AT Command Set | |
| GSM 07.05/GSM 07.07/ZTE Proprietary AT Commands | |
