US$ 0.11 - 0.99 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
CHANGFENG
Model Number:
ACSR
Contact Supplier Request Quote Chat Now
Changfeng Wire & Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name CHANGFENG
Model Number ACSR
Insulation Material XLPE
Type Low Voltage
Application Overhead
Conductor Material Copper
Jacket PVC

2016 0.6 / 1kV Cable Cu/XLPE/PVC Power Cable 150mm2 ACSR





ACSR conductor
1. ISO9001, ISO14001, CCC
2.one of China's biggest cable manufactory





1.General information about our  ACSR conductor's company

Changfeng wire&cable Co. is a professional manufacturer and supplier of bare conductor , wire and cable in China.we can provide a wide range of products ,inclunding AAC,AAAC,ACSR,Aluminium Clad Steel Wire,Galvanized Steel Wire,ABC cable,PVC insulated wire,Pvc power cable,XLPE power cable, welding cable , and copper counductors ,etc.



2.The Specifications of  ACSR conductor

(1) all aluminium conductor (AAC)

 (2) all aluminimum alloy conductor(AAAC)

(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)

 (6)rear earth aluminimum conductor steel reinforced(ACSR/RE)

 (7)aluminimum conductor aluminimum alloy reinforced(ACAR)



3. Elative manufacturing standards

Elative manufacturing standards: IEC83, IEC1089, 31, B232, BS215, DIN48204.

1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182.

2). Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied.
3). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels.

 All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM

(AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
AAC(All aluminum conductor) are suited for overhead power line.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, ASTM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.



4.The application of  aluminium conductor

Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power.



5.The construction of aluminium conductor

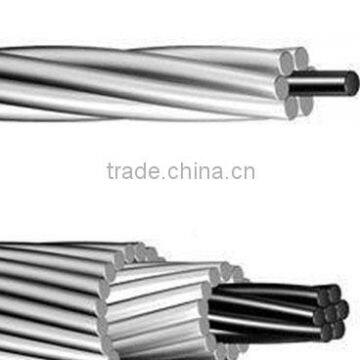

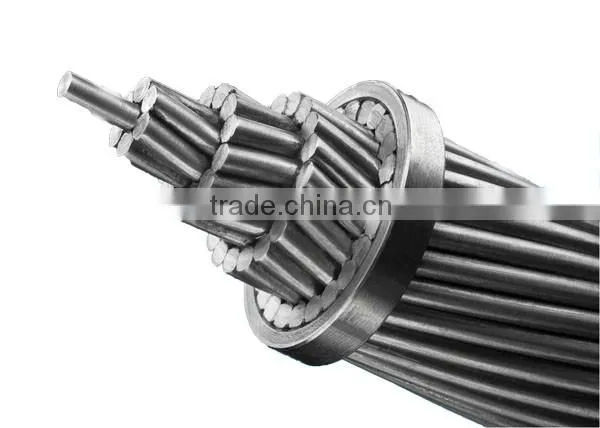

Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corrosion or infusion of the complete cable with grease.





Notes

Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.

Current ratings are based on 75centigrade conductor temperature, 25centigrade ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption.

ACSR

IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182,JIS C3110

AAC

IEC61089, BS215 part1, ASTM B231, DIN48201, JIS C3109, CSA C49

AAAC

IEC61089, BS 3242, ASTM B399, BS EN50183, DIN48201

ACS

ASTM B505, ASTM B416, DIN 48201

ACAR

ASTM B524, IEC 61089

AACSR

ASTM B711, DIN 48206, IEC 61089

We have attained ISO9001 & ISO14001 certificates.



Specification: Aluminum Conductor Steel Reinforced

Standard: ASTMB232, DIN48204, BS215 PART2, IEC61089, IEC209, IEC888, IEC889, EN50182

Application: Aluminum conductor steel wire reinforced wire used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Package:  Wooden Drum Package or Iron-wooden drum



ACSR DESCRIPTION

ACSR (Aluminum Conductor Steel Reinforced)

Aluminum Conductors Steel Reinforced         ASTM B 232
Code name Area Stranding and wire diameter Approx. overall diameter Weight Nominal breaking load Nominal DC resistance at 20 deg.
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
  AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km
TURKEY 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54 5.24 2.1586
SWAN 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85 8.32 1.3557
SWANATE 4 21.16 5.35 26.51 7/1.96 1/2.61 6.53 58 42 100 10.53 1.3557
SPARROW 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136 12.7 0.8535
SPARATE 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159 16.11 0.8535
RAVEN 1/0 53.48 8.9 62.38 6/3.37 1/3.37 10.11 147 69 216 19.32 0.5364
QUAIL 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273 23.62 0.4255
PIGEON 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343 29.41 0.3373
PENGUIN 4/0 107.23 17.87 125.1 6/4.77 1/4.77 14.31 294 139 433 37.06 0.2675
PARTRIDGE 266.8 135.16 22 157.16 26/2.57 7/2.00 16.28 374 172 546 50.29 0.2143
MERLIN 336.4 170.45 9.48 179.93 18/3.47 1/3.47 17.35 470 74 544 38.23 0.1691
LINNET 336.4 170.45 27.81 198.26 26/2.89 7/2.25 18.31 472 217 689 62.71 0.1699
ORIOLE 336.4 170.45 39.81 210.26 30/2.69 7/2.69 18.83 473 311 784 77.27 0.1704
IBIS 397.5 201.42 32.77 234.19 26/3.14 7/2.44 19.88 558 256 814 72.11 0.1438
LARK 397.5 201.42 46.97 248.39 30/2.92 7/2.92 20.44 560 367 927 88.69 0.1442
PELICAN 477 241.68 13.42 255.10 18/4.14 1/4.14 20.70 666 105 771 52.16 0.1193
FLICKER 477 241.68 31.29 272.97 24/3.58 7/2.39 21.49 670 245 915 76.66 0.1199
HAWK 477 241.68 39.42 281.10 26/3.44 7/2.67 21.79 670 308 978 86.65 0.1199
HEN 477 241.68 56.39 298.07 30/3.20 7/3.20 22.40 671 441 1112 105.34 0.1201
OSPREY 556.5 282.00 15.68 297.68 18/4.47 1/4.47 22.35 777 122 899 60.88 0.1022
PARAKEET 556.5 282.00 36.58 318.58 24/3.87 7/2.58 23.22 781 286 1067 88.22 0.1027
DOVE 556.5 282.00 45.94 327.94 26/3.72 7/2.89 23.55 781 359 1140 101.03 0.1027
EAGLE 556.5 282.00 65.81 347.81 30/3.46 7/3.46 24.21 783 515 1298 122.92 0.103
PEACOCK 605 306.58 39.74 346.32 24/4.03 7/2.69 24.20 849 311 1160 95.88 0.0945
SQUAB 605 306.58 49.94 356.52 26/3.87 7/3.01 24.51 850 390 1240 108.14 0.0945
TEAL 605 306.58 69.87 376.45 30/3.61 19/2.16 25.24 851 548 1399 133.59 0.0947
GROSBEAK 636 322.26 52.45 374.71 26/3.97 7/3.09 25.15 893 409 1302 111.8 0.08989
STARLING 715.5 362.58 59.03 421.61 26/4.21 7/3.28 26.68 1005 461 1466 125.91 0.07989
TERN 795 402.84 27.87 430.71 45/3.38 7/2.25 27.03 1116 217 1333 97.37 0.07191
CONDOR 795 402.84 52.19 455.03 54/3.08 7/3.08 27.72 1116 408 1524 124.45 0.07191
CUCKOO 795 402.84 52.19 455.03 24/4.62 7/3.08 27.74 1116 408 1524 123.94 0.07191
DRAKE 795 402.84 65.61 468.35 26/4.44 7/3.45 28.11 1116 512 1628 139.92 0.07191
MALLARD 795 402.84 91.87 494.71 30/4.14 19/2.48 28.96 1119 719 1838 171.18 0.07208
RAIL 954 483.42 33.42 516.84 45/3.70 7/2.47 29.61 1339 262 1601 115.63 0.05992
CURLEW 1033.5 523.68 67.87 591.55 54/3.52 7/3.52 31.68 1451 530 1981 161.8 0.05531
BLUEJAY 1113 563.93 39.03 602.96 45/4.00 7/2.66 31.98 1563 305 1868 132.63 0.05136
FINCH 1113 563.93 71.55 635.48 54/3.65 19/2.19 32.85 1570 560 2150 174.41 0.05161
GRACKLE 1192.5 604.26 76.58 680.84 54/3.77 19/2.27 33.97 1682 600 2282 186.38 0.04817
BITTERN 1272 644.51 44.52 689.03 45/4.27 7/2.85 34.17 1785 349 2134 151.48 0.04494
DIPPER 1351.5 684.84 47.10 731.94 45/4.40 7/2.92 35.16 1898 368 2266 160.7 0.0423
MARTIN 1351.5 684.84 86.71 771.55 54/4.02 19/2.41 36.17 1906 679 2585 206.05 0.0425
LAPWING 1590 805.68 55.48 861.16 45/4.77 7/3.18 38.16 2232 435 2667 187.02 0.03595
FALCON 1590 805.68 102.13 907.81 54/4.36 19/2.62 39.26 2243 799 3042 242.55 0.03613
DOTTEREL 176.9 89.48 52.19 141.67 12/3.08 7/3.08 15.42 248 409 657 78.5 0.3237
DORKING 190.8 96.71 56.39 153.10 12/3.20 7/3.20 16.03 268 441 709 84.8 0.2995
COCHIN 211.8 107.10 62.45 169.55 12/3.37 7/3.37 16.84 297 488 785 93.9 0.2705
Aluminum Conductors Steel Reinforced           BS 215 Part 2
Code name Area Stranding and wire diameter Approx. overall diameter Weight Nominal breaking load Nominal DC resistance at 20 deg.
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
  mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km
MOLE 10 10.62 1.77 12.39 6/1.50 1/1.50 4.50 29 14 43 4.14 2.076
SQUIRREL 20 20.94 3.49 24.43 6/2.11 1/2.11 6.33 58 27 85 7.88 1.368
GOPHER 25 26.25 4.37 30.62 6/2.36 1/2.36 7.08 72 34 106 9.61 1.093
WEASEL 30 31.61 5.27 36.88 6/2.59 1/2.59 7.77 87 41 128 11.45 0.9077
FOX 35 36.66 6.11 42.77 6/2.79 1/2.79 8.37 101 48 149 13.2 0.7822
FERRET 40 42.41 7.07 49.48 6/3.00 1/3.00 9 117 55 172 15.2 0.6766
RABBIT 50 52.88 8.82 61.7 6/3.35 1/3.35 10.05 145 69 214 18.35 0.5426
HORSE 70 73.37 42.8 116.17 12/2.79 7/2.79 13.95 203 335 538 61.2 0.3936
RACOON 75 79.2 13.2 92.4 6/4.10 1/4.10 12.3 217 103 320 27.2 0.3622
OTTER 80 83.88 13.98 97.86 6/4.22 1/4.22 12.66 230 109 339 28.80 0.3419
CAT 90 95.40 15.90 111.30 6/4.50 1/4.50 13.50 262 124 386 32.70 0.3007
HARE 100 105.00 17.50 122.50 6/4.72 1/4.72 14.16 288 137 425 36.00 0.2733
DOG 100 105 13.5 118.5 6/4.72 7/1.57 14.15 288 106 394 32.7 0.2733
TIGER 125 131.1 30.6 161.7 30/2.36 7/2.36 16.52 362 240 602 58 0.2202
WOLF 150 158 36.9 194.9 30/2.59 7/2.59 18.13 437 289 726 69.2 0.1828
LYNX 175 183.4 42.8 226.2 30/2.79 7/2.79 19.53 507 335 842 79.8 0.1576
CARACAL 175 184.2 10.3 194.5 18/3.61 1/3.61 18.05 507 80 587 41.1 0.1563
PANTHER 200 212 49.5 261.5 30/3.00 7/3.00 21 586 388 974 92.25 0.1363
BEAR 250 264 61.6 325.6 30/3.35 7/3.35 23.45 730 483 1213 111.1 0.1093
BISON 350 381.8 49.5 431.3 54/3.00 7/3.00 27 1056 388 1444 120.9 0.07573
DEER 400 429.3 100.2 529.5 30/4.27 7/4.27 29.89 1186 785 1971 178.5 0.06726
ZEBRA 400 428.9 55.6 484.5 54/3.18 7/3.18 28.62 1186 435 1621 131.9 0.0674
MOOSE 500 528.7 68.5 597.2 54/3.53 7/3.53 31.77 1462 537 1999 161.1 0.0547





Our certification

Our products meet standards of UL, GB, IEC, DIN, ASTM, JIS, NF, AS/NZS CSA GOST etc. As leading professional supplier in China, we have obtained ISO9001, ISO14001, CCC, API & UL certificates.

 2016 0.6 / 1kV Cable Cu/XLPE/PVC Power Cable 150mm2 ACSR2016 0.6 / 1kV Cable Cu/XLPE/PVC Power Cable 150mm2 ACSR

Production Line

As the leading professional cables manufacturers in China, our factory is mainly specialized in LV,MV electrical power cable, control cable, signal cable, flexible cable, aerial bundle cable, PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable, Welding Cables & UL wires etc.

 2016 0.6 / 1kV Cable Cu/XLPE/PVC Power Cable 150mm2 ACSR2016 0.6 / 1kV Cable Cu/XLPE/PVC Power Cable 150mm2 ACSR

Our market

 With the perfect quality and after sales service, our products are very popular both in domestic & overseas market.



Company Introduction

Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.

 2016 0.6 / 1kV Cable Cu/XLPE/PVC Power Cable 150mm2 ACSR

Main Products

LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Armoured cable / Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire

 ESP Power Cable & Motor Lead Extension Cable / Fireproof cable / Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.



Our Service

1. All of products are certificated.

2, Qualified products.

3, In time delivery.

4,OEM and ODM production.

5,Technical support by professional sales people and engineer services.

6.Products qualify guarrantee as long as 18 month after date of delivery.



Contacts

Ms. Ada Ren from Changfeng Wire&Cable Co.,Ltd

Web:



Moible: 0086-18660195571

Skype: sibylyiguan

Whatsapp/Wechat: 0086-13953179566



Package: Wooden drums, steel wooden drums or as per customers’ request.

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Changfeng Wire & Cable Co., Ltd.
Business Type
Manufacturer
Year Established
2009
Factory Size
10,000-30,000 square meters
Total Employees
Above 1000 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Communication Cable Communication Cable
Audio & Video Cable Audio & Video Cable
Power Cord & Extension Cord Power Cord & Extension Cord
Wire Harness Wire Harness
Cable Tools Cable Tools
Enameled Wire Enameled Wire
Cable Assembly Cable Assembly
Optical Fiber Optical Fiber
Power Cable Power Cable
